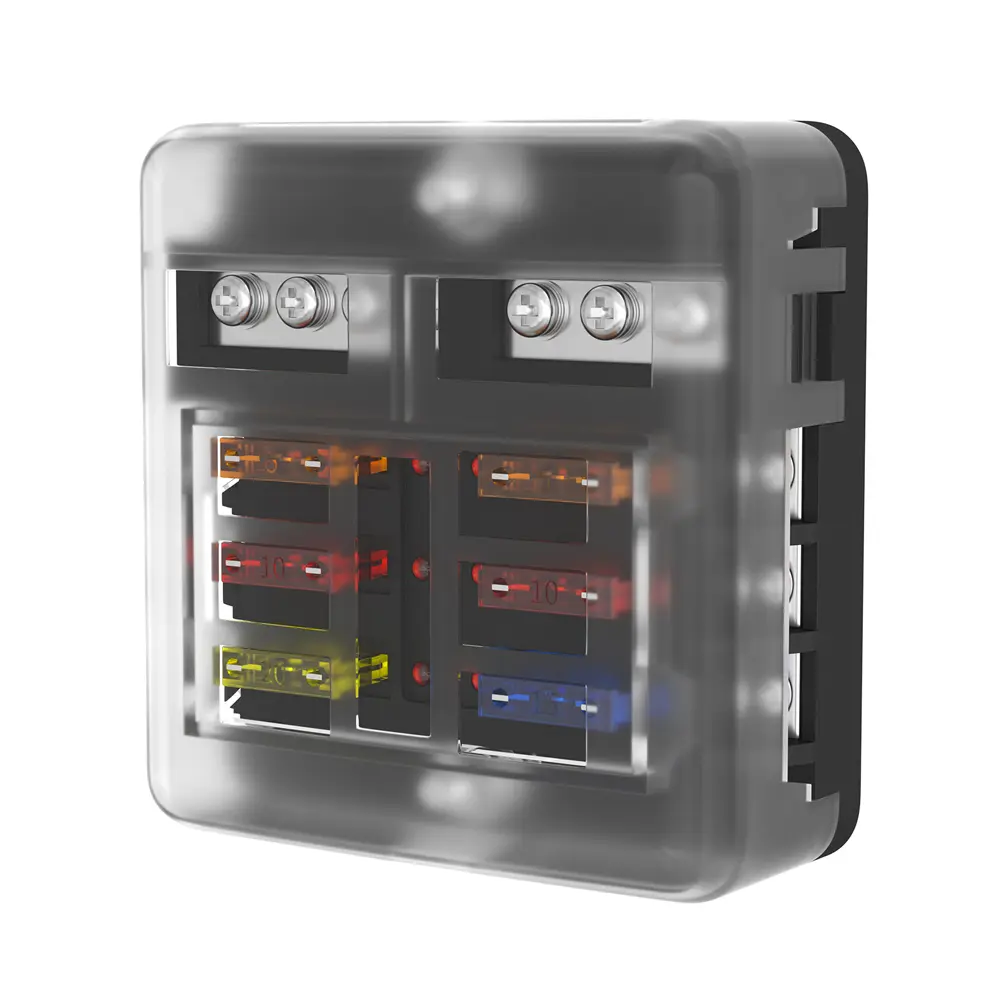

FB-1713 Waterproof 6 Circuit 12V Fuse block

Part#FB-1713

FB-1713 waterproof 6 circuits 12V fuse block, input voltage: 12V-24V DC, input / output current: 100A / 30A max per circuit with a clip-lock protection cover.

The clip-on protective cover provides waterproof and dustproof protection for the fuse box and fuse. It also has insulating, heat-resistant, and flame-retardant effects.

FB-1713 Waterproof 6 Circuit 12V Fuse Block Details

  • Stable Performance

Nickel-plated brass connection terminal has low resistance and good conductivity to ensure the flow and stability of current.

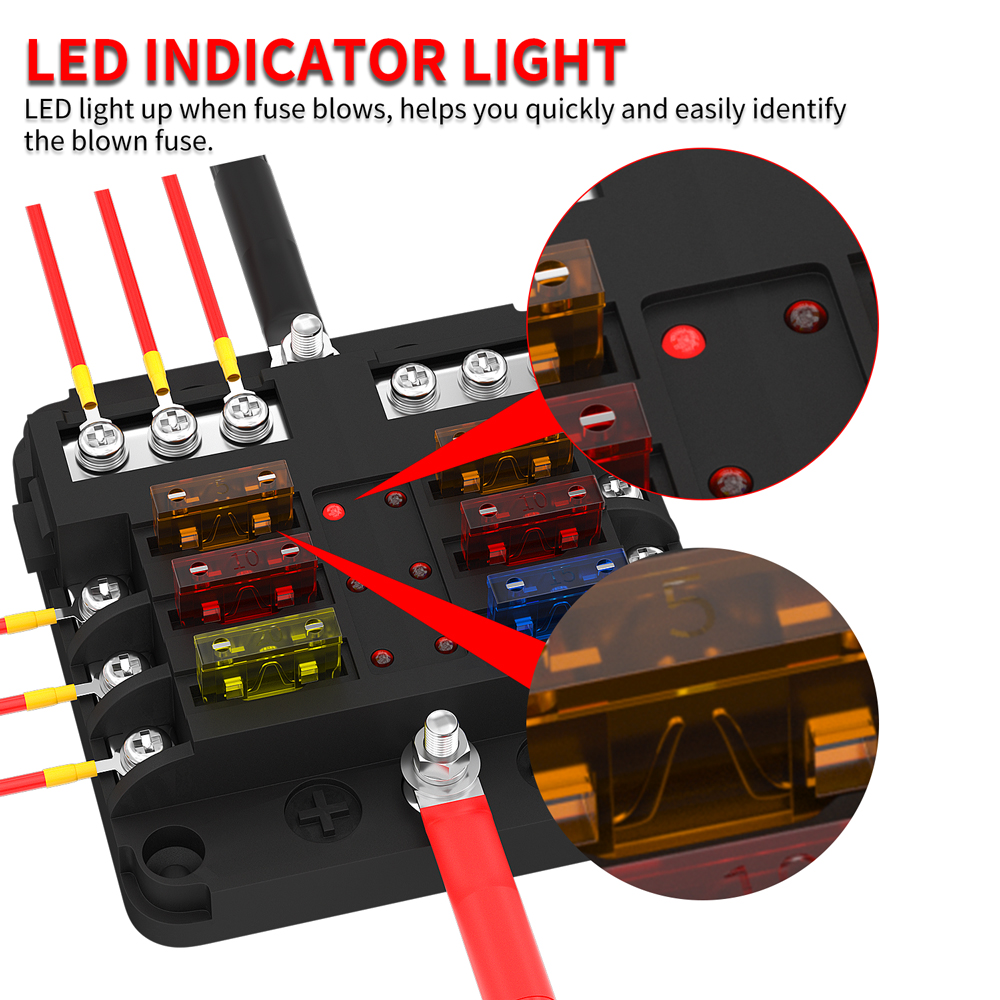

  • Visual Feedback

When the fuse is detected to be blown, the LED indicator will light up to quickly identify the blown fuses and the position that needs to be replaced.

  • Sturdy Construction

All parts are made of high-quality materials to ensure the mechanical strength and durability of the fuse box.

  • Safety Protection

The base is made of PBT environment-friendly flame retardant plastic to protect the safety of equipment and people.

  • Wide Application

It is suitable for electric equipment such as cars, RVs, buses, trucks, boats, ships, etc.

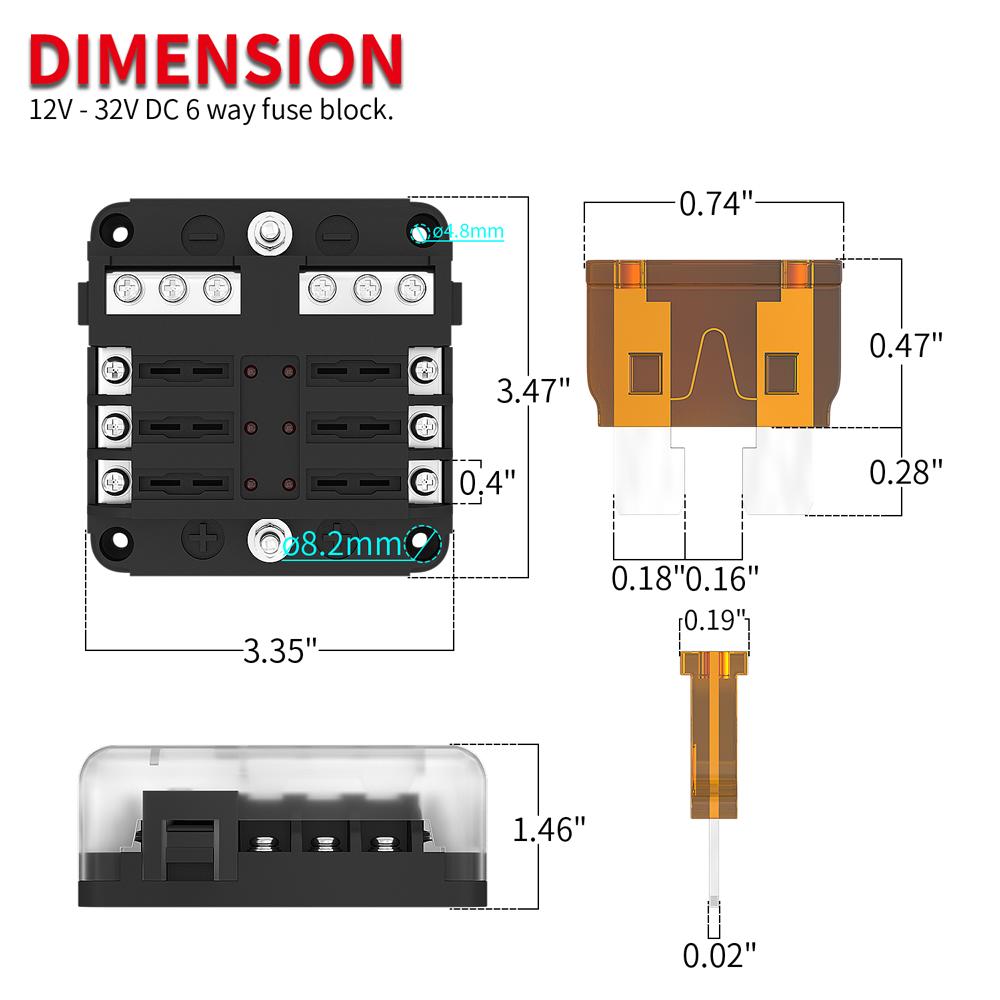

FB-1713 Datasheet

Circuits 6
Connection Terminal 12
Maximum Amperage 100A per block & 30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Positive Bus #10-32 Stud
Screw Terminal Type #8-32 Screws with captive star lock washer

FB-1713 Wiring Diagram

FB-1713 Wiring Diagram

Other products with the same function are recommended: FB-1709L and FB-1714.

Still, have a question about the FB-1713 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
