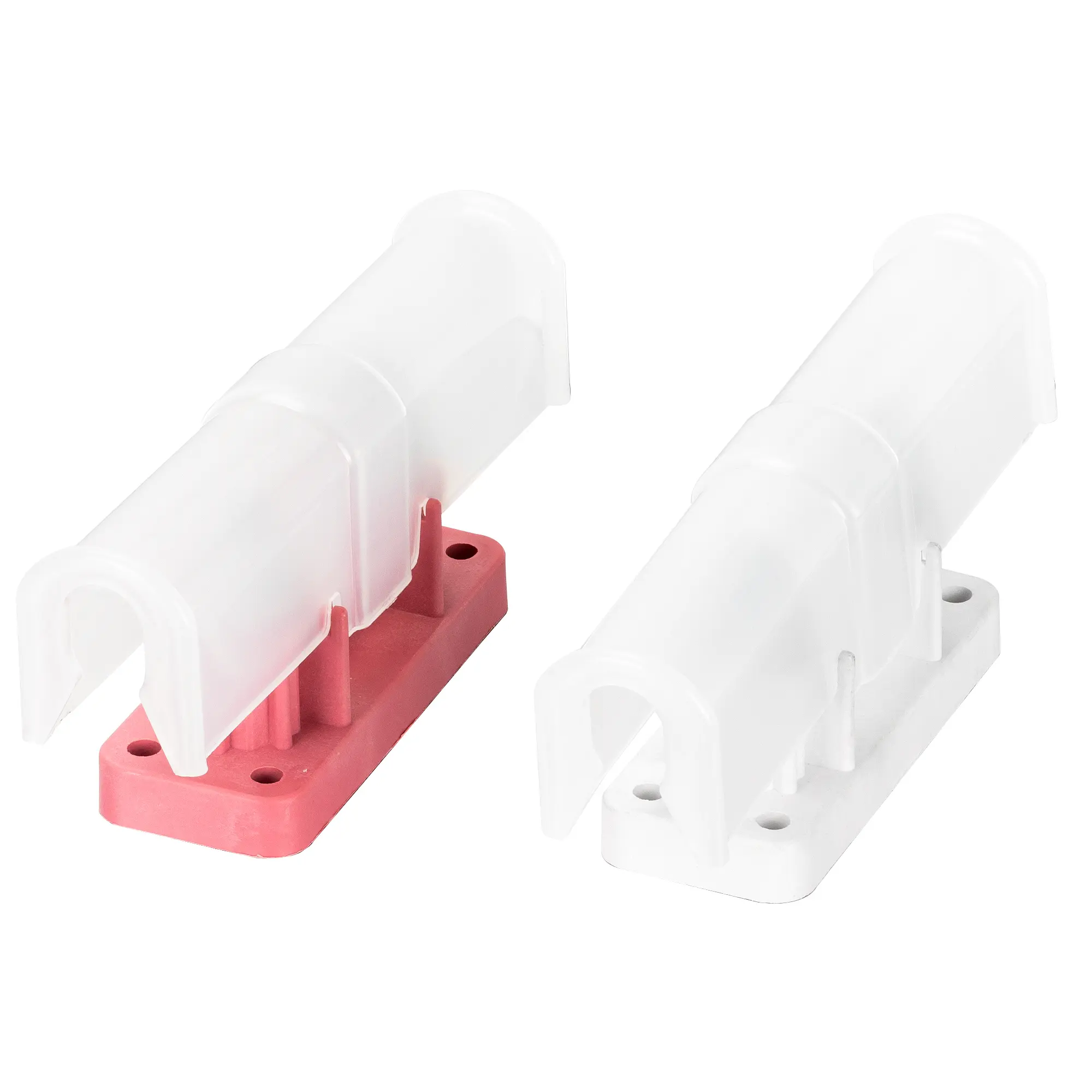

ANL-33 35 to 500 Amp ANL Fuse Holder Kit


The 500 amp ANL fuse holder kit is available for systems up to 48 volts DC, ANL fuses 35 to 500A and accepts 5/16″ (M8) terminal stud sizes.

It’s compatible with 12, 24 or 48 DC voltage systems and can be connected in parallel. Works with inverters of 12,000 watts or less.

ANL-33 35 to 500 Amp ANL Fuse Holder Kit Details

  • High Electrical Conductivity

Stainless steel studs are corrosion-resistant and highly torsional for good electrical contact.

  • Robust and Durable

The base material is made of very durable nylon, with stainless steel connecting posts, lock washers, and flat washers.

  • Widely Application

This fuse holder is suitable for DC systems such as power inverters, solar charge controllers, audio, marine, automotive, RV, trailers and other vehicles.

ANL-33 ANL Datasheet

Maximum operating voltage 48 Volt DC
Maximum operating amperage 500 Amp
ANL Fuses available 35 – 500 Amp
Terminal stud size 5/16″ (M8)
Cable size 300A – 1/0 AWG; 400A – 4/0 AWG; 500A – 4/0 AWG
Connection Post Material Stainless Steel
Lock Washer Material Stainless Steel
Flat Washer Material Stainless Steel
