DS1011 Panel Mount Cigarette Lighter Socket
DS1011 Panel Mount Cigarette Lighter Socket, waterproof Lighter Socket Power Outlet for Car, Marine, Motorcycle, ATV and RV
Category :
Cigarette Lighter and SocketDS1011 Panel Mount Cigarette Lighter Socket
【Superior Safety】The safe charging design will prevent your device from overheating, over current, over-voltage, overload and short circuit, the built-in fuse is 10A in the line.
【Widely Application】Universal for 12-24V vehicles, adapt to mainstream vehicle types such as cars, SUVs, trucks, off-road, RV. Input: 12V/24V (9-36V) DC, Output: 12-24V, DC 20A
【Simply installation】The cigarette lighter socket is not surface mounted, only needing a small hole, It is a through-hole installation that requires a large (1 1/8″) hole.

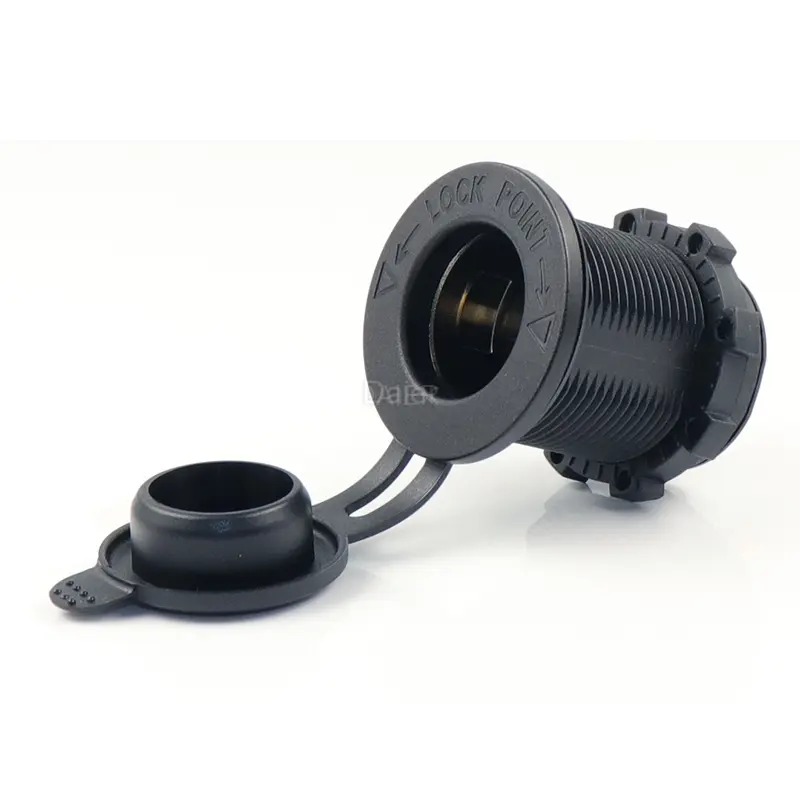

【Thoughtful design】Nylon housing has effective scratch resistance and this product also design has a PVC/Silicone cap, this cap effectively protects the charger against sudden water splashes and is dustproof.
DS1011 Panel Mount Cigarette Lighter Socket datasheet below:
| Rating: | 15A 12VDC | Waterproof Grade: | IP65 |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -40℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
