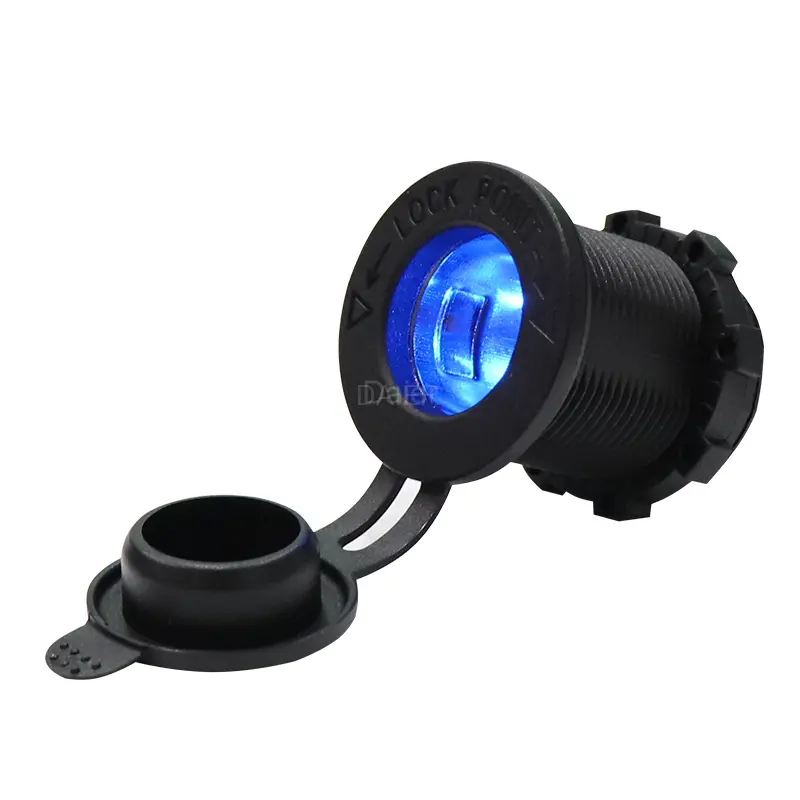

DS1011L Cigar Lighter Power Socket

DS1011L Cigar Lighter Power Socket with Red/ Blue/ Yellow/ Green LED indicator, Waterproof Marine Grade Cigarette Lighter Plug Socket, Power Supply Socket Outlet Adapter Plug for 12V/24V DC Car Boat Motorcycle

DS1011L Cigar Lighter Power Socket



【Superior Safety】The safe charging design will prevent your device from overheating, over current, over-voltage, overload, and short circuit. Built-in LED indicator, convenience usage in the dark or at night, and can quickly check whether the connection is successful.

【Widely Application】Universal for 12-24V vehicles, adapt to mainstream vehicle types such as cars, SUVs, trucks, off-road, RV. Input: 12V/24V (9-36V) DC, Output: 12-24V, DC 20A

【Simply installation】The cigarette lighter socket is not surface mounted, only needing a small hole, It is a through-hole installation that requires a large (1 1/8″) hole.

【Thoughtful design】Nylon housing has effective scratch resistance and this product also design has a PVC/Silicone cap, this cap effectively protects the charger against sudden water splashes and is dustproof.

For more details, contact us here

DS1011L Cigar Lighter Power Socket datasheet below:



Rating: 15A 12VDC Waterproof Grade: IP65
Contact Resistance: 35mΩ max Operating Temperature: -40℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
