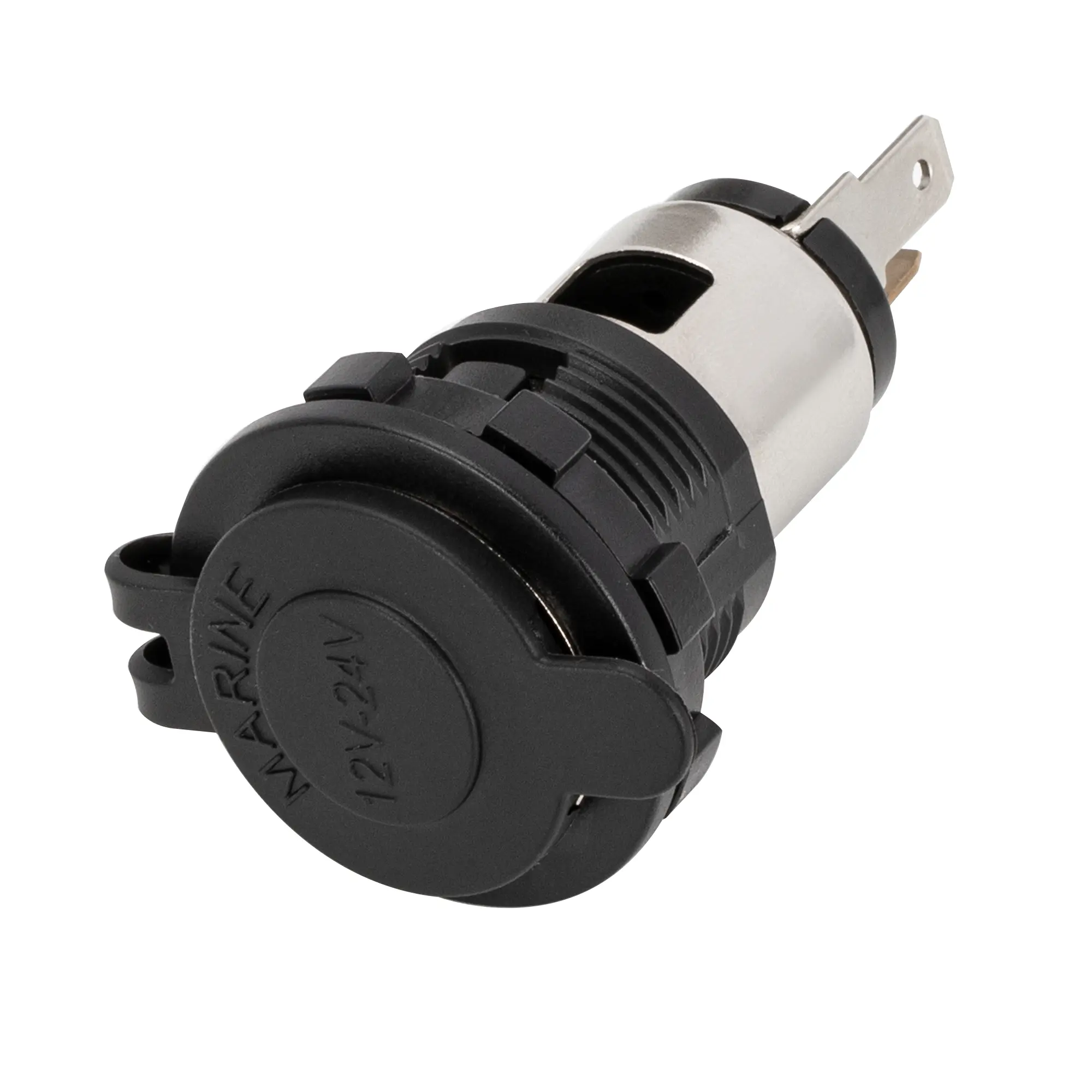

DR-Y7 12-24V Marine Cigarette Lighter Socket
Part#DR-Y7
The 12-24V marine cigarette lighter socket is fireproof and waterproof. Input: 12V-24V DC, 10A; Output: 12V-24V DC, 10A; Maximum Current: 15A.
The cigarette lighter can be used for mobile phones, cameras, GPS charging, etc. or widely used in 12V/24V cars, trucks, boats, caravans, motorcycles, etc.

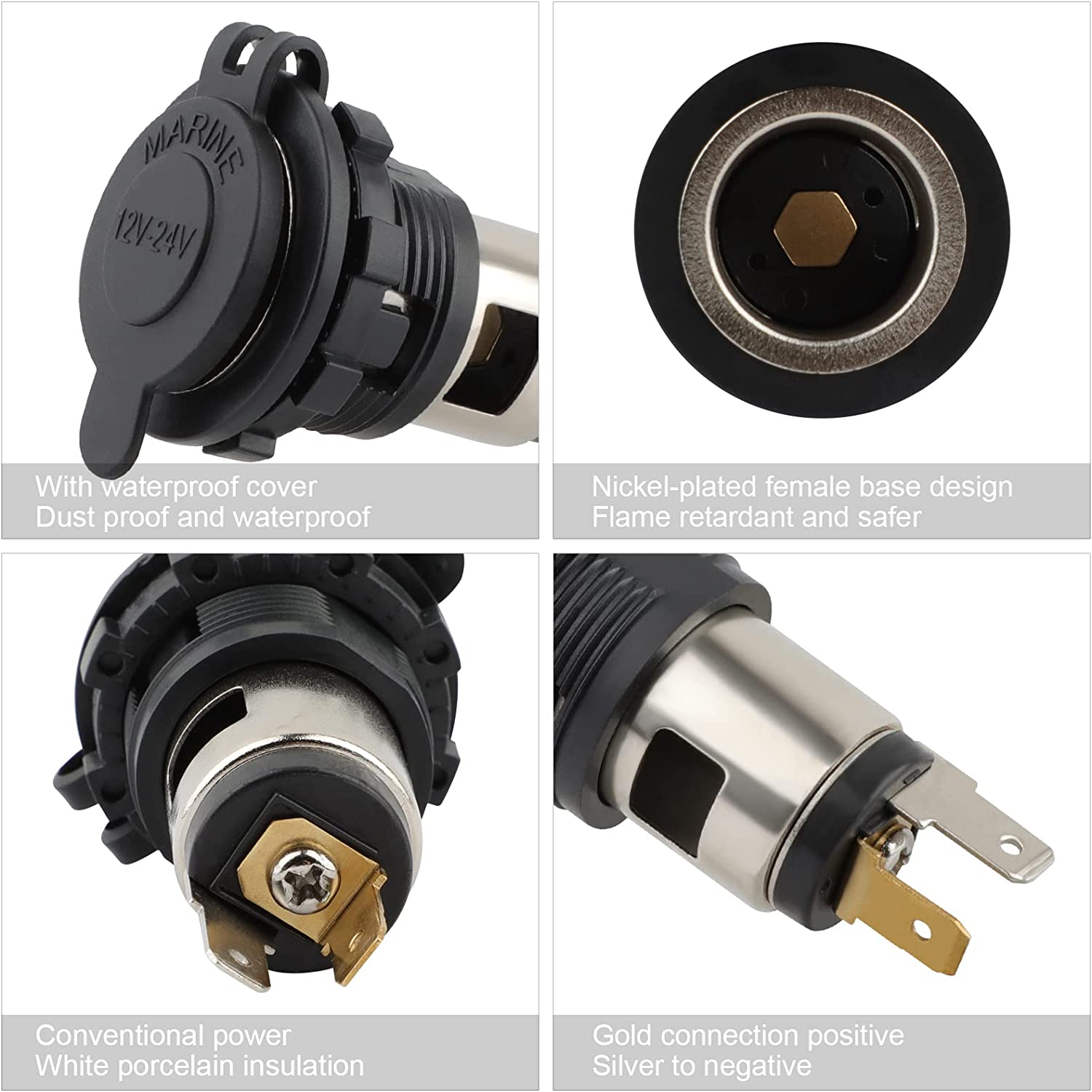

DR-Y7 12-24V Marine Cigarette Lighter Socket Details
- Type
The 12-24 volt cigarette lighter socket with cover, is suitable for car cigarette lighter and accessory plugs.
- Rated Power
This car cigarette lighter is rated at 12V 10A, 120W.
- Safety Protection
The socket comes with a cover that is waterproof and dustproof to avoid causing circuit problems and facilitate daily use.
- Overload Protection
Any DC 12V/24V or high load capacity will be protected and will be burned out when the current is too high. Don’t worry about your car’s current.
- Widely Application
It’s suitable for any 12V – 24V vehicles (motorcycle, boat, truck, ATV, RV) in need of extra and heavy-duty cigarette lighter plug sockets.
DR-Y7 Datasheet
| Material | Durable flame-resistant hard plastic |
| Input | 12V-24V |
| Output | 12V 15A, 24V 10A. |
| Mounting Hole Size | 1.8 x 2.5 inch |
| Wire Length | 18AWG 50CM (about 19.69″) |
| Inline Fuse Rating | 10A Inline Red Wire |

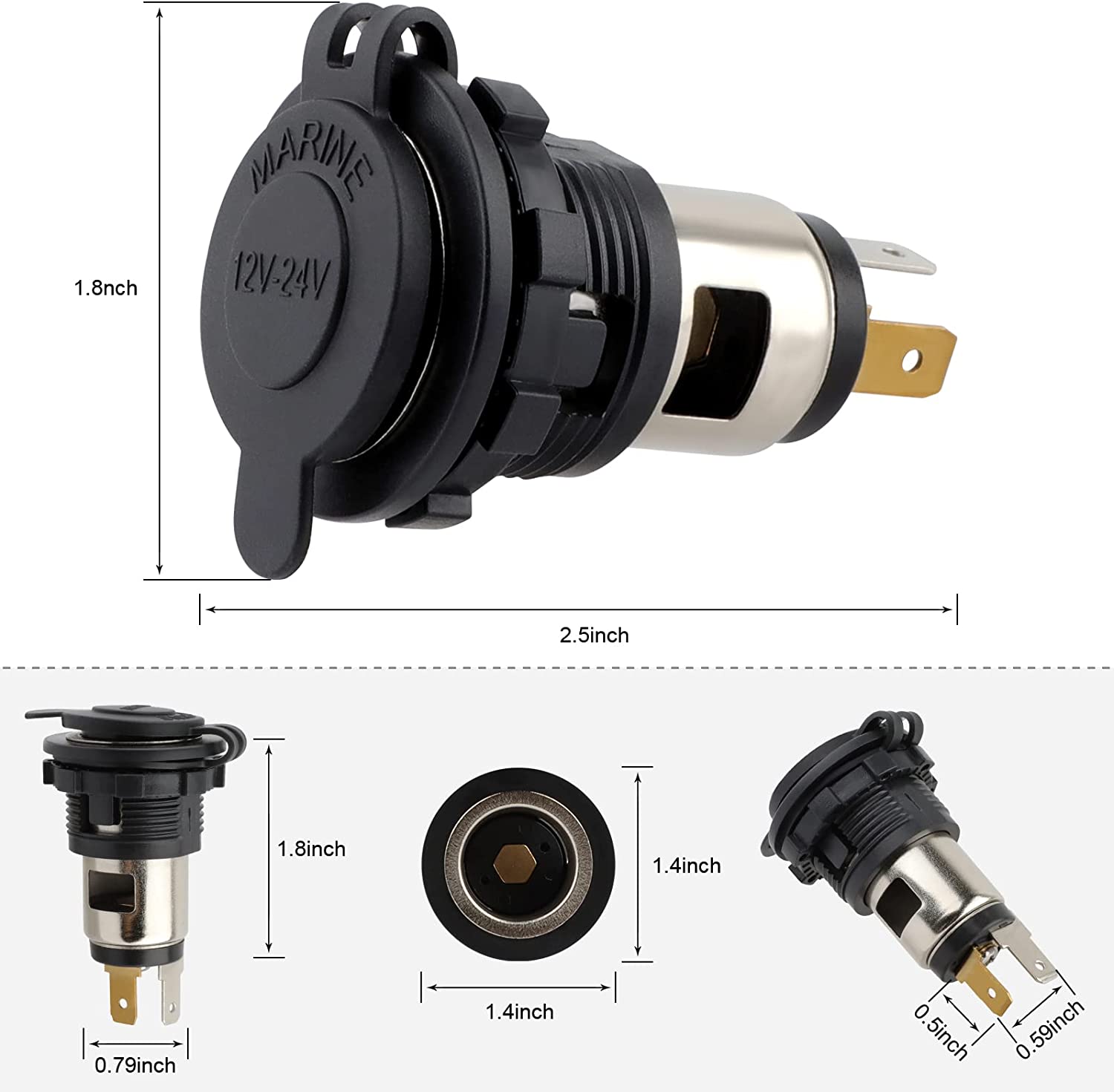

DR-Y7 Dimension Drawing
