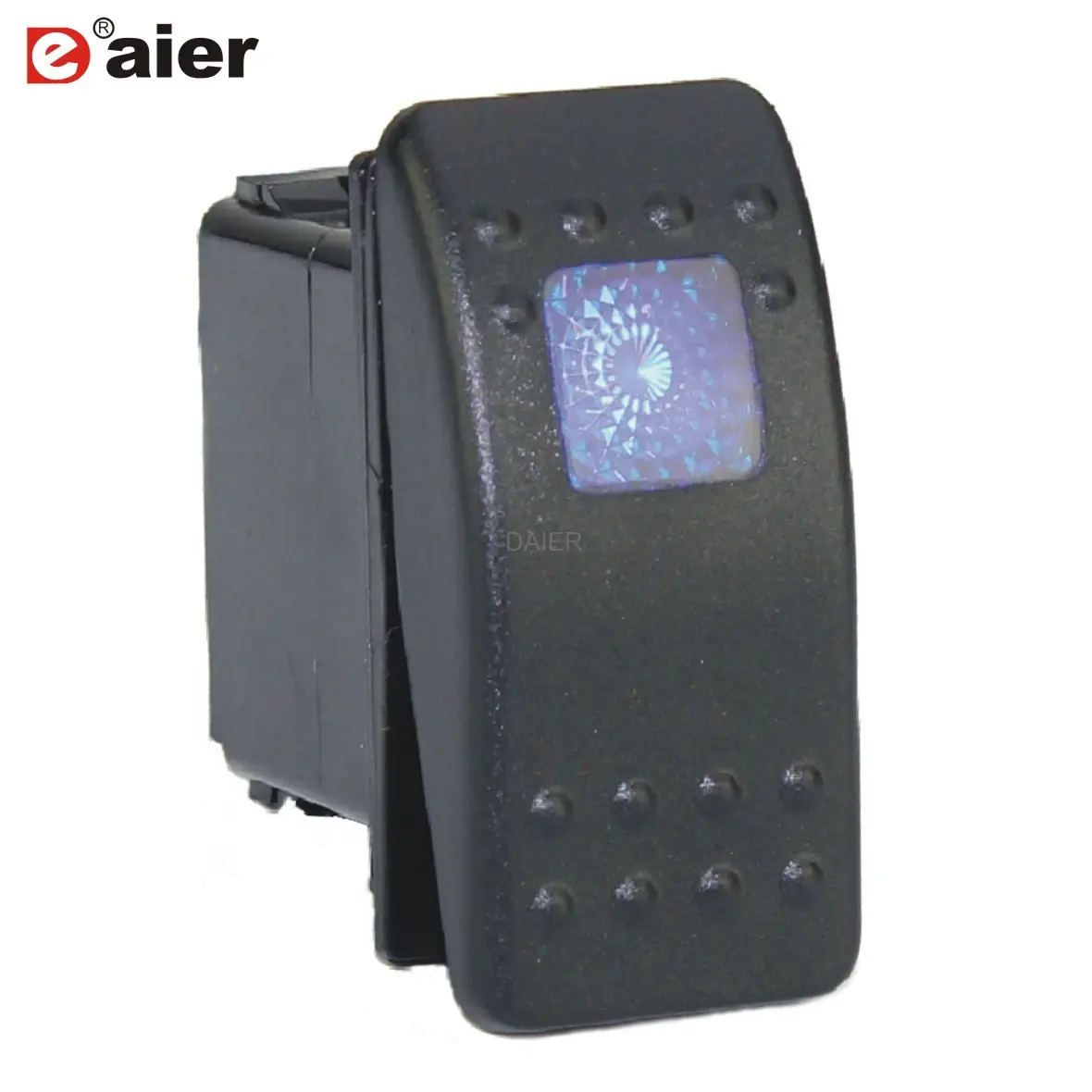

DR-A11313A Marine Boat Rocker Switch

DR-A11313A Marine Boat Rocker Switch 12V, Lighted LED Waterproof Rocker Switch for UTV RZR SPST 3 Pin with Single LED, ON/Off 20A Heavy Duty



Category :

Marine Switch

DR-A11313A Marine Boat Rocker Switch

The pattern is etched on the surface by laser engraving to ensure long lasting durability.

DR-A11313A Marine Boat Rocker Switch

  • Feature: SPST 3 PIN ON/OFF  led rocker switch 12v. LED Function: Turn the 12v rocker switch on, the led on; turn the switch off, the led off.
  • Dimension: This marine switch required 1.46″ (37.2 mm) x 0.83″ (21.2 mm) mounting hole size. The snap-in mounting type make the installation of the boat switches become easy.
  • Application: This waterproof rocker switch with 20A 12VDC/10A 24VDC rating, can be applicated both automotive and marine areas due to its IP65 waterproof. It is suitable for car, UTV, RZR, boat, etc.

view more

Pls check the datasheet below:



Rating: 20A 12VDC Waterproof Grade: IP67
Contact Resistance: 35mΩ max Operating Temperature: -40℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
