DR-A11X25 LED Boat Rocker Switch

DR-A11X25 LED Boat Rocker Switch, LED Light Bar Rocker Switch, Laser On/Off 20A/12V 10A/24V Switch

Category :

Marine Switch

DR-A11X25 LED Boat Rocker Switch

1. Dual LED ON/OFF DESIGN

2. Dual LED design, the capitals”LED LIGHT BAR” is always ON and lit blue light, the pattern part will light up when switch on and lit green light

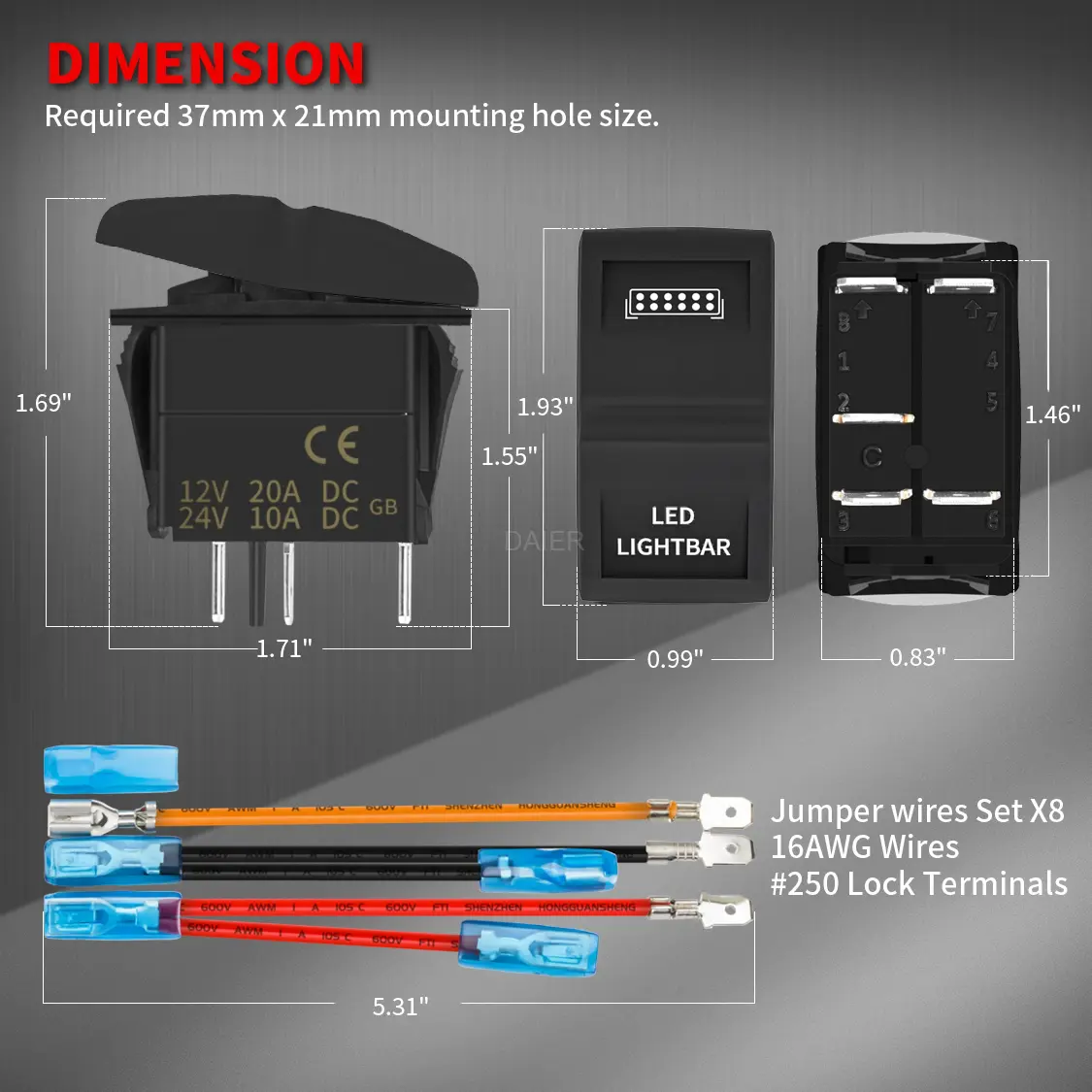

DR-A11X25 LED Marine Boat Rocker Switch datasheet below:



Rating: 20A 12VDC Waterproof Grade: IP67
Contact Resistance: 35mΩ max Operating Temperature: -40℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles

For more details, pls contact us here
