KW10-Z2P

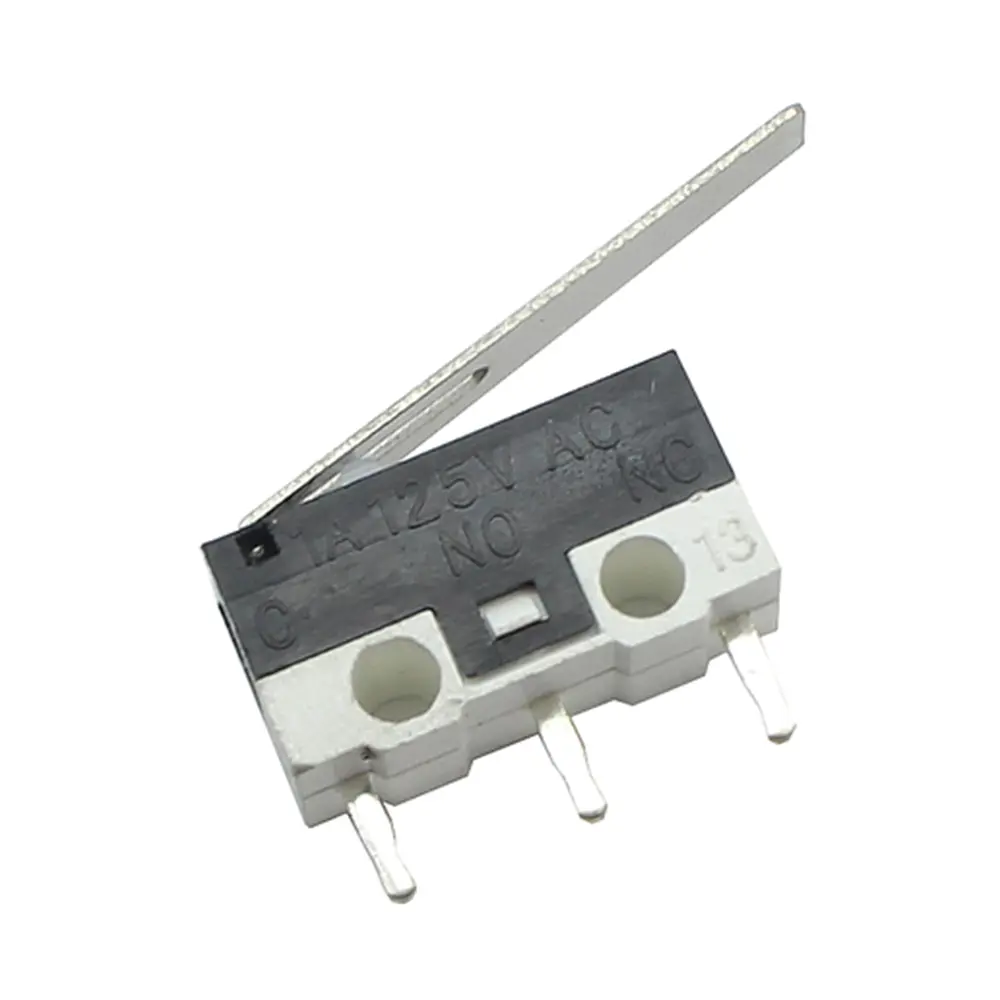

KW10-Z2P lever micro switch:

KW10-Z2P lever micro switch is rated for controlling electrical loads ranging from logic-level/computer-based circuits to limited power-duty switching (up to 3 A/125 Vac). KW10-Z2P lever micro switch package is available with either solder terminals or a variety of different styles of printed circuit board (PCB) terminals to fulfill the requirements for electrical connectivity.

Pls check the datasheet below:



Housing:Nylon 66Lever length:18.2mm
TerminalBrass with sliver platedSwitch Operation:OFF – momentary ON
Contact Configuration:SPDTOperating Temperature:-25℃~+75℃
Rating:1A 250VAC/3A 125VACAmbient Temperature Used:〈85% RH
Contact Resistance:≤30mΩElectrical Life:≥ 10,000 Cycles
Insulation Resistance:≥100mΩ (500VDC)Mechanical Life:≥ 100,000 Cycles
Dielectric strength:1500VAC 1 minuteOEM or ODM:Available
