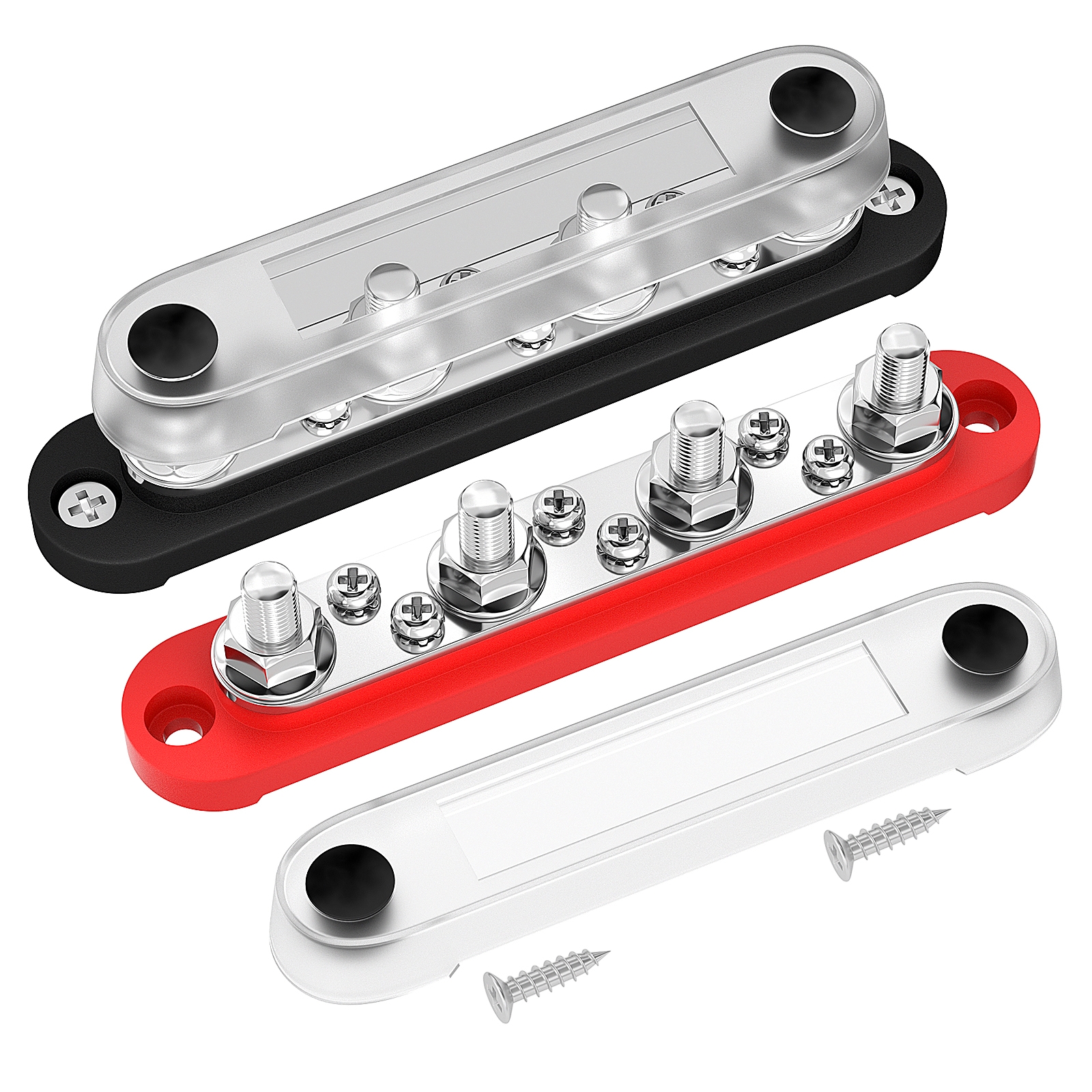

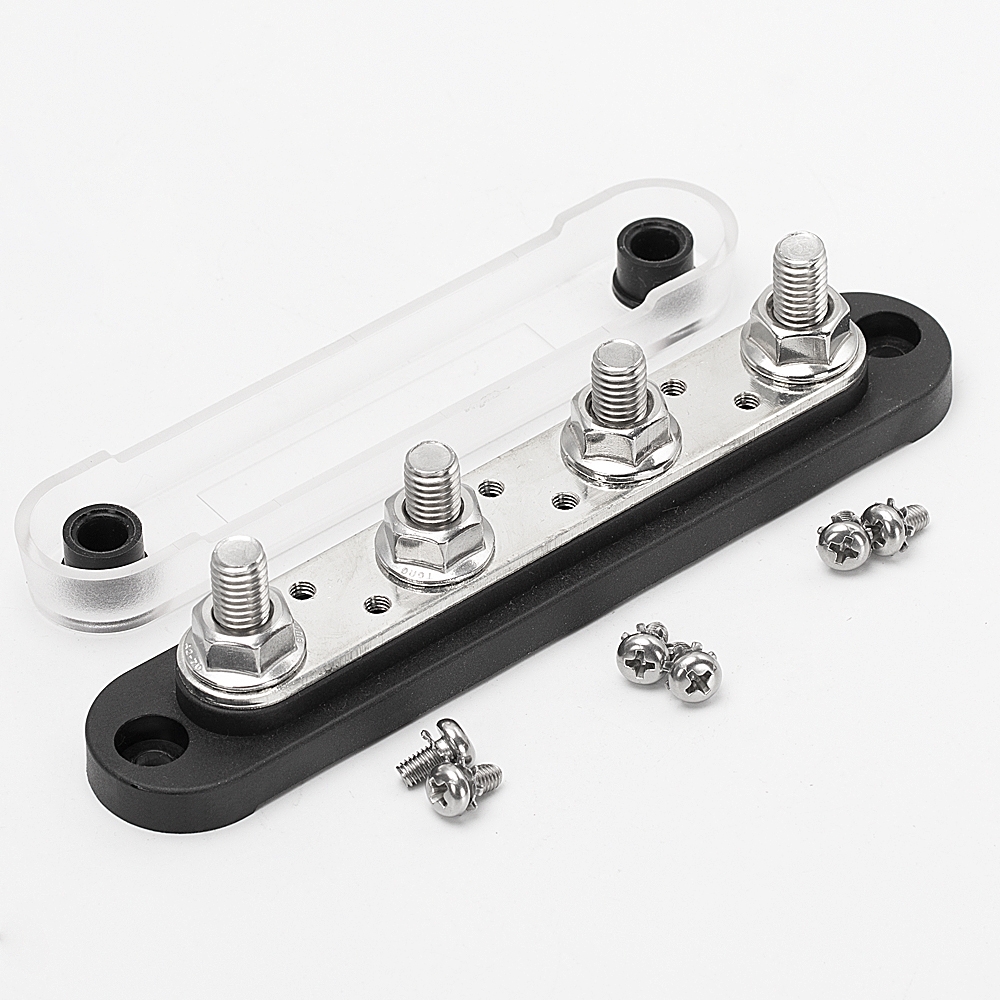

BB150-T4M8S6-C Copper 150A 12V Bus Bar with 4×M8 Studs & 6 x M4 Screws

Part#BB150-T4M8S6-C

The copper 12V Bus Bar is rated for 150A DC continuous current in 12-48V DC with 4×M8 stud terminals & 6 x M4 Screw terminals.

M8 terminal studs x 4 and M4 screw terminals x 6, suitable for 5/16″ and #8 insulation ring terminals.

Category :

Busbar
  • certificate

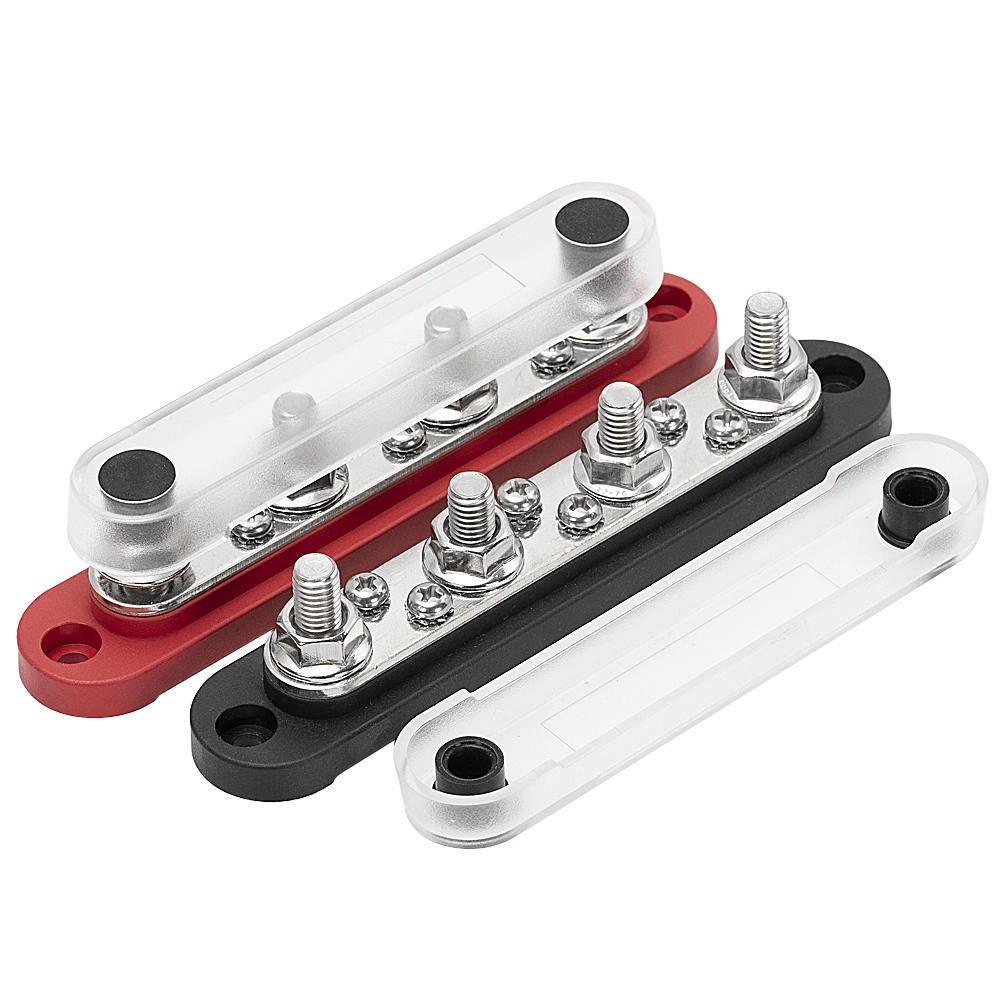

BB150-T4M8S6-C Car Battery 12V Bus Bar Details

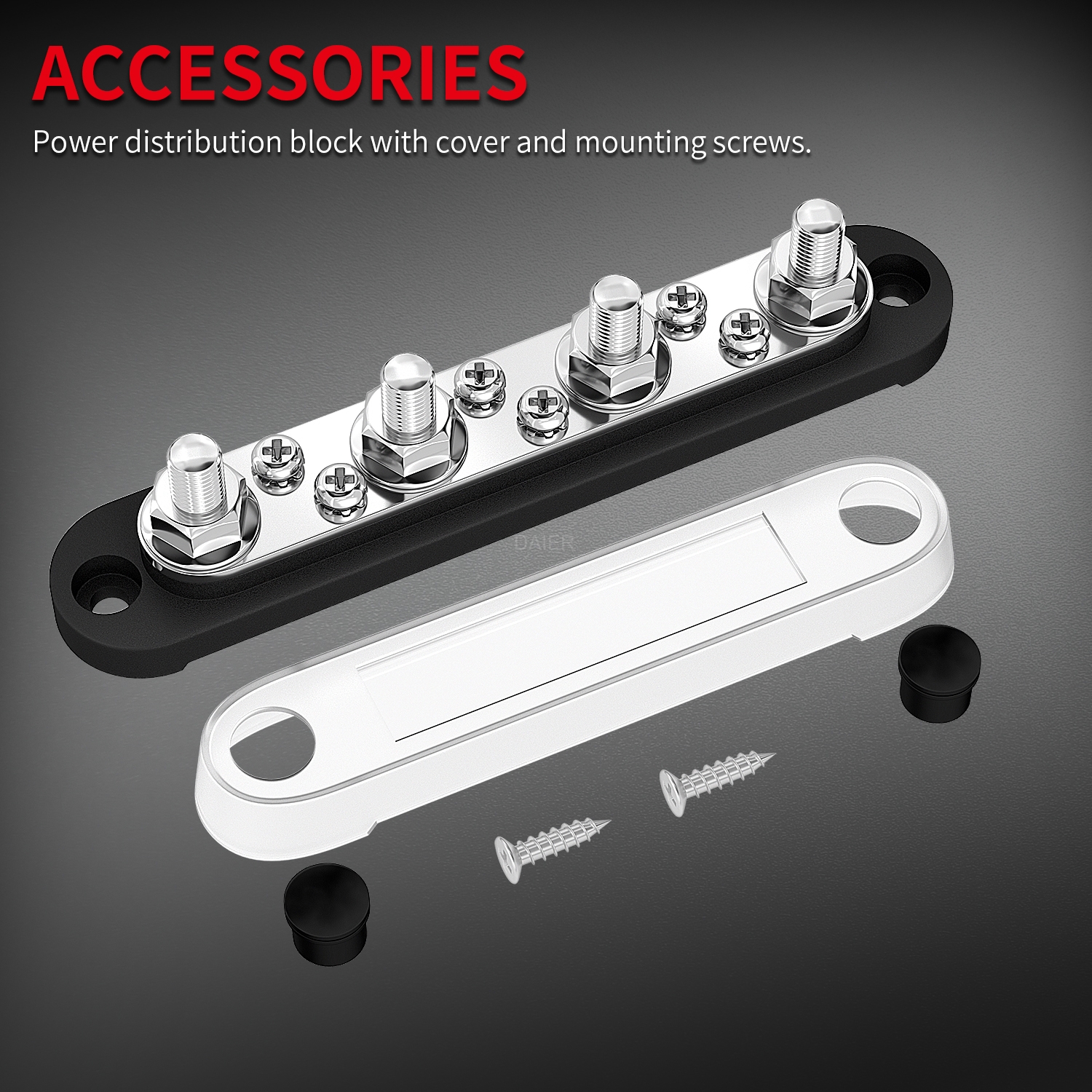

  • Easy Installation

It is installed on the panel surface with screw mounting holes for installation in any direction.

  • Stable Performance

Nickel-plated brass contact plate has low resistance and good conductivity to ensure the flow and stability of current.

  • Sturdy Construction

All power distribution connection blocks are manufactured with high-quality materials, ensuring mechanical strength and durability.

  • Safety Protection

The base is made of flame retardant plastic to protect the safety of equipment and people.

  • Wide Application

It is suitable for cars, RVs, trucks, boats, solar energy, and other electrical equipment, etc.

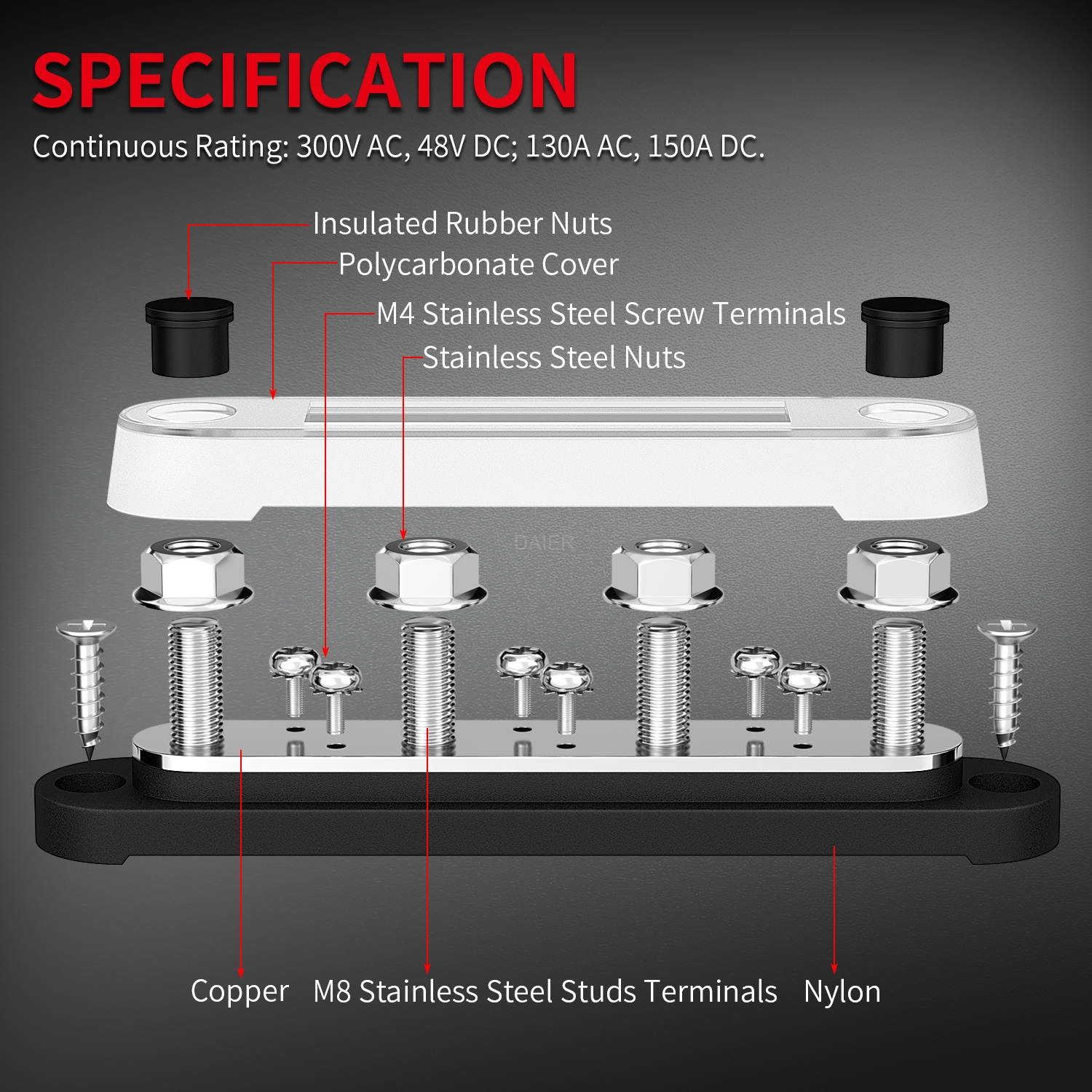

BB150-T4M8S6-C Bus Bar Datasheet

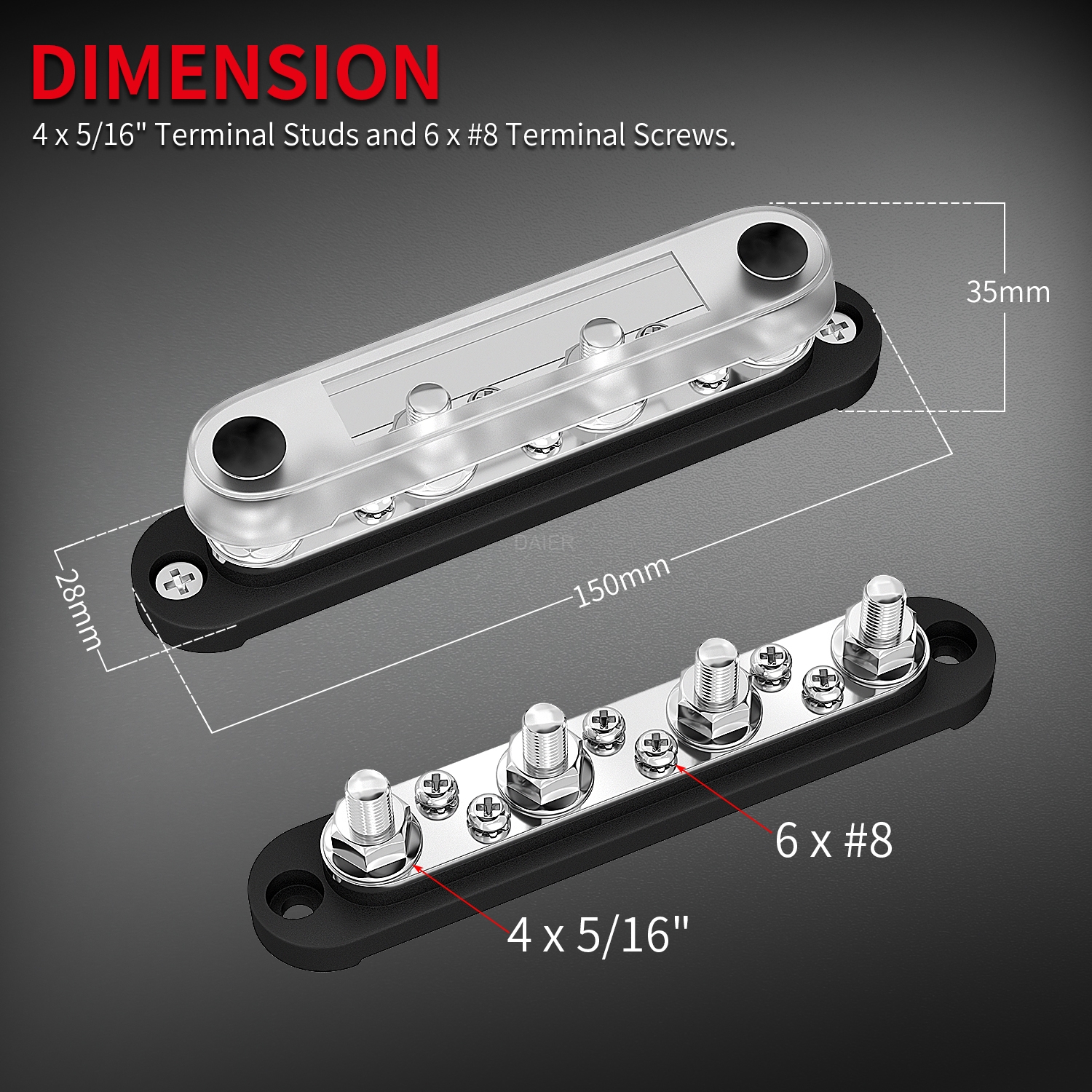

Product Size (L*W*H) 150mm * 28mm * 35mm
Terminal Studs Size 4 * M8 (5/16”)
Terminal Screws Size 6 * M4 (#8)
Stud Material Stainless steel
Base Material Nylon, fiberglass
Max Operating Voltage DC 48V
Continuous Current DC 150A
Color Red/Black

Still, have a question about the BB150-T4M8S6-C that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
