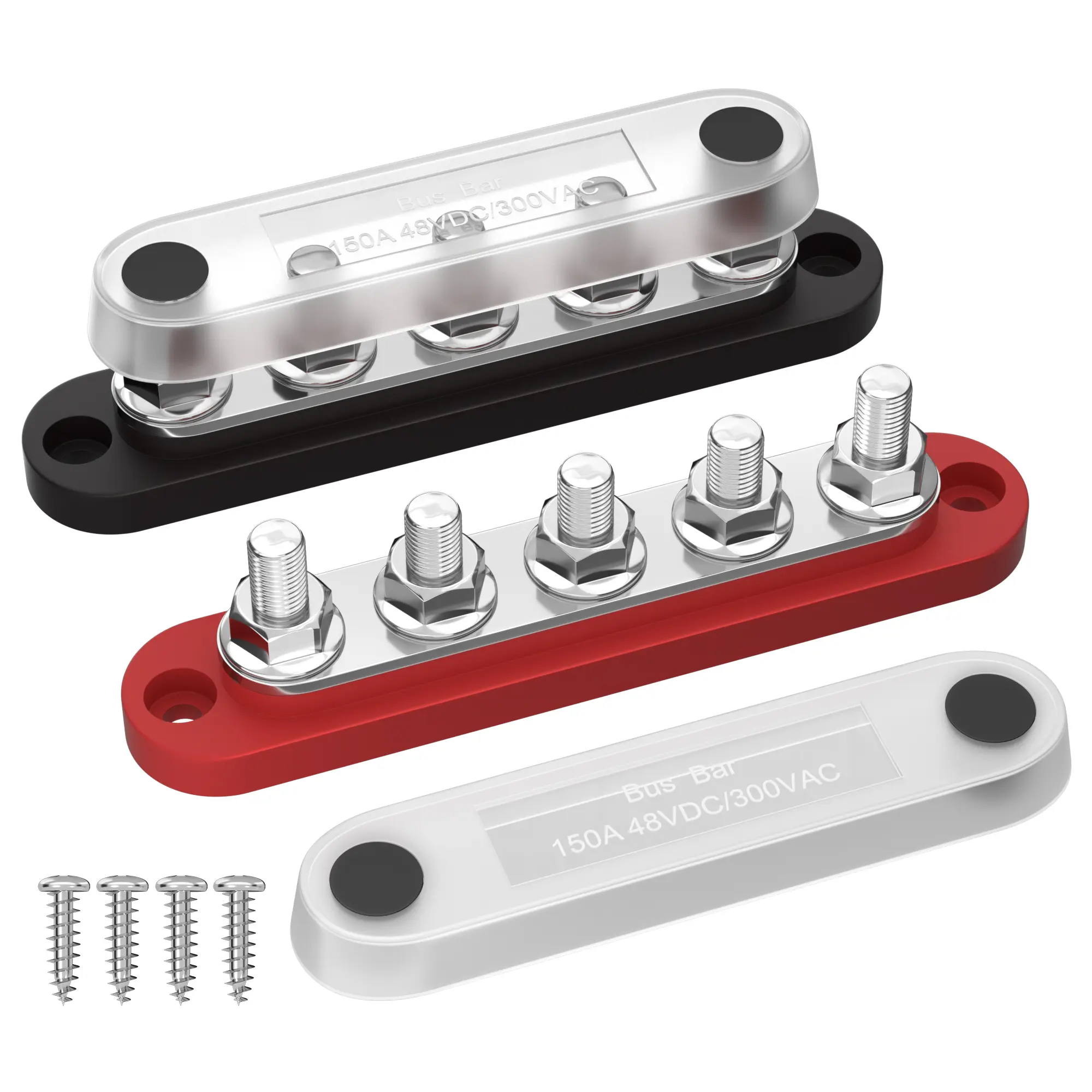

BB100-T5M6C 48VDC 150A Common Mini Busbar with 5×M6(1/4″) Studs
Part#BB100-T2M6S5
The 48VDC 150A common mini busbar with 5×M6(1/4″) studs for convenient connection. Manufactured from solid copper for superior conductivity and durability.
The one-piece serrated flange nuts ensure correct and secure connections, preventing resistance and promoting efficient power flow.
Category :
Busbar
BB100-T5M6C 48VDC 150A Common Mini Busbar with 5×M6(1/4″) Studs Details
- Superior Conductivity
The tin-plated copper buses of the 150A common mini busbar ensure maximum conductivity and corrosion resistance, providing efficient power distribution.
- Secure and Easy Installation
The insert-molded stainless steel studs eliminate the need for securing nuts, allowing for high torqueing and ensuring excellent electrical contact. Terminal screws with stainless steel split ring lock washers and captive star-type lock washers keep connections tight, even in high-vibration environments.
- Enhanced Safety
The UL 94-V0 rated base materials of the busbar have flame-retardant properties, providing added safety. These materials will self-extinguish if a flame source is removed, minimizing potential risks.
- Reliable Connections
The one-piece serrated flange nuts ensure correct and secure connections, preventing resistance and promoting efficient power flow.
- Compact Design
Perfect for limited space applications, the 150A common mini busbar features a reinforced polycarbonate base and a clear polycarbonate cover. It includes 5 terminal studs for convenient installation.
BB100-T5M6C 48VDC 150A Common Mini Busbar with 5×M6(1/4″) Studs Datasheet
| Maximum Voltage | 300V AC/48V DC |
| Continuous Rating | 150A |
| Number of Terminal Studs | 5 |
| Terminals Type | M6(1/4″) Studs |
| Mounting Holes Size | Accepts #10 (M5) Screws |
| Base Material | UL 94V-0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper |
| Color | Red/Black |
