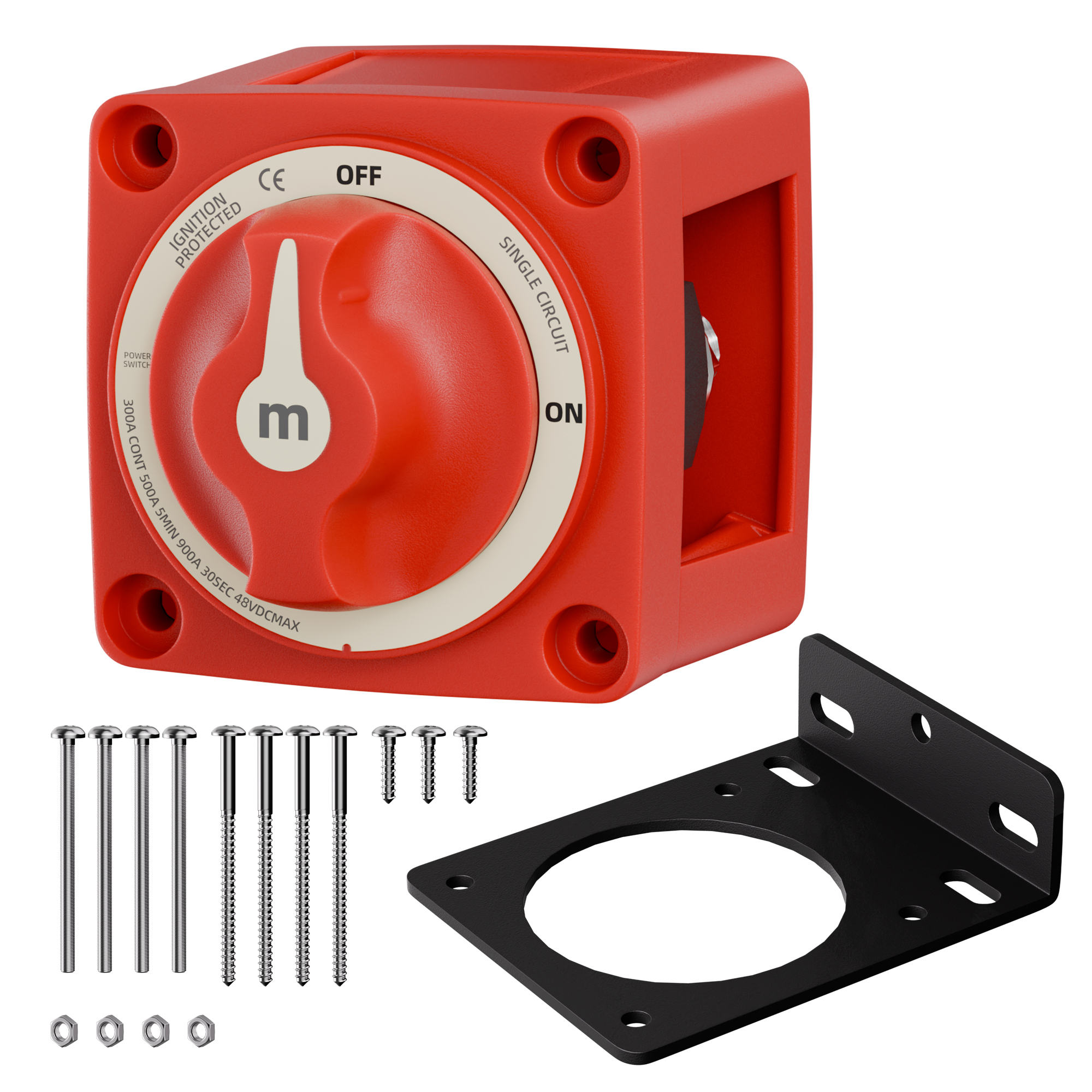

ASW-A6006+BRACKET 300A 12V-48V ON-OFF Battery Disconnect Switch with Mounting Bracket
P/N: ASW-A6006+BRACKET
This 300A 12V-48V on-off battery disconnect switch features copper terminals and an upgraded mounting bracket for a professional, no-cutout installation.
Offering four flexible mounting options and ignition-protected safety, it provides a rugged and reliable way to manage power and prevent battery drain in marine, RV, and solar applications.
Category :
Battery Switch
ASW-A6006+BRACKET ON-OFF Battery Disconnect Switch Features & Benefits

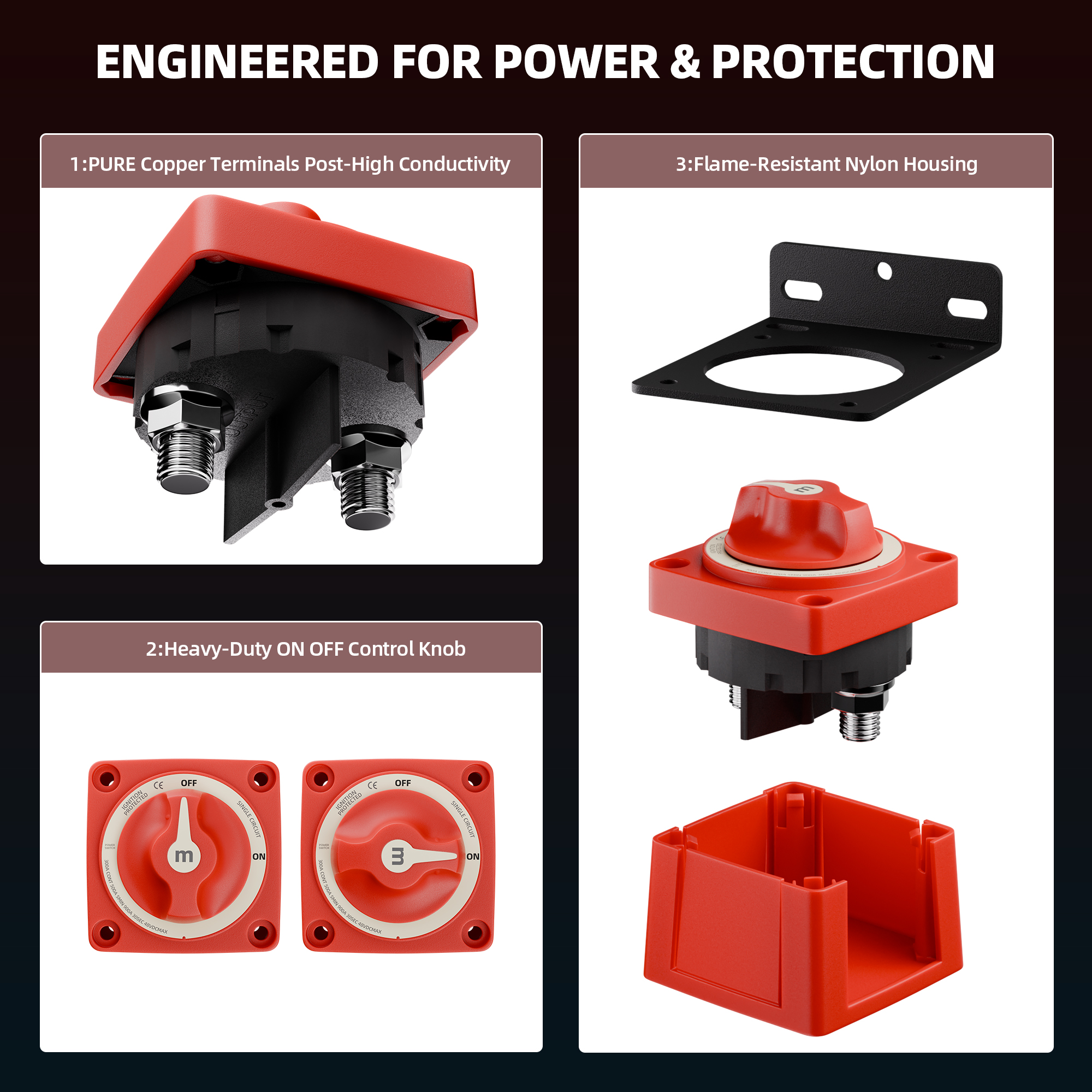

- High-Conductivity Copper Terminals
This copper terminal battery switch utilizes M10 tinned copper studs to ensure maximum electrical flow and minimal resistance. Pure copper construction significantly reduces heat generation during high-current operation to protect the vehicle’s electrical integrity.

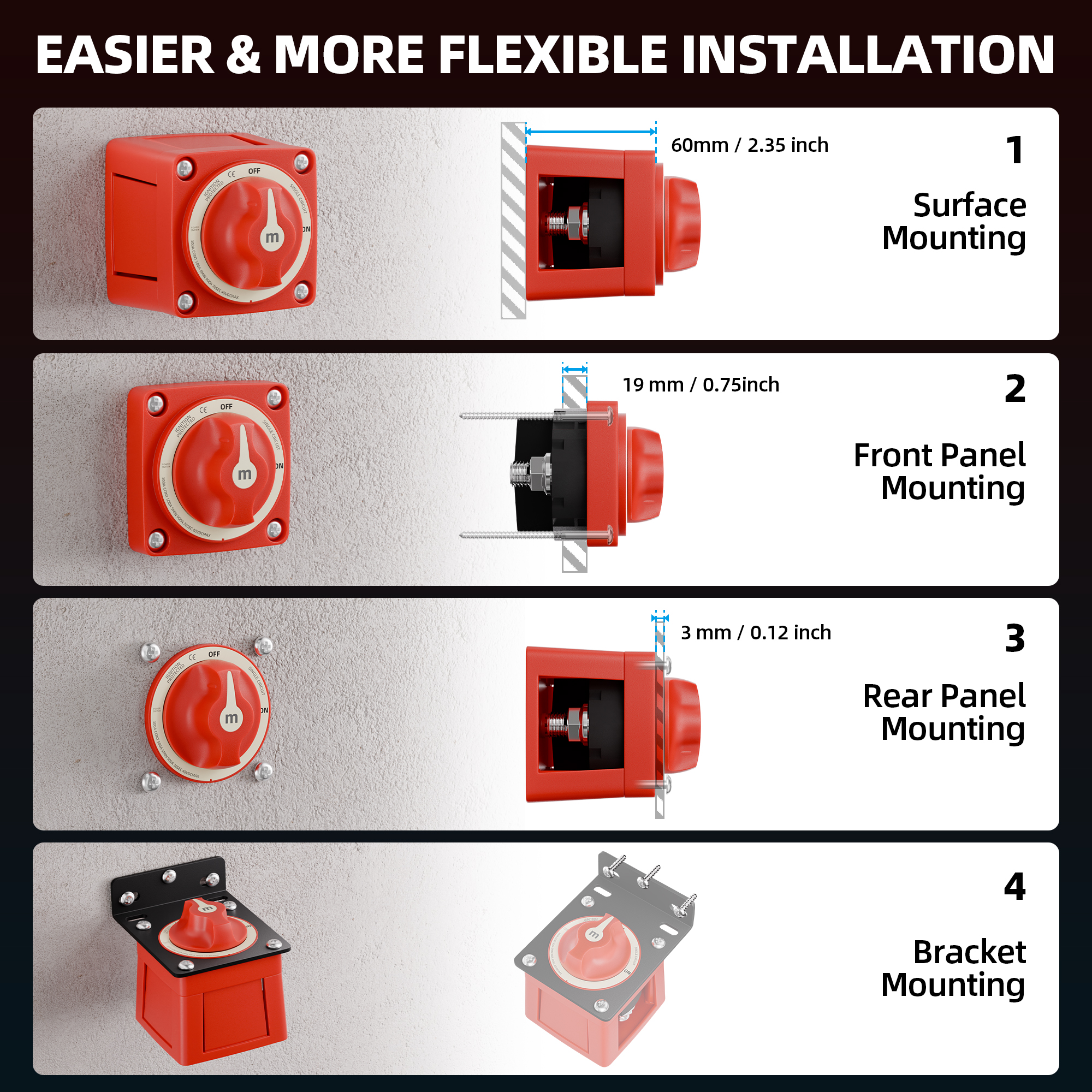

- Versatile No-Cutout Installation

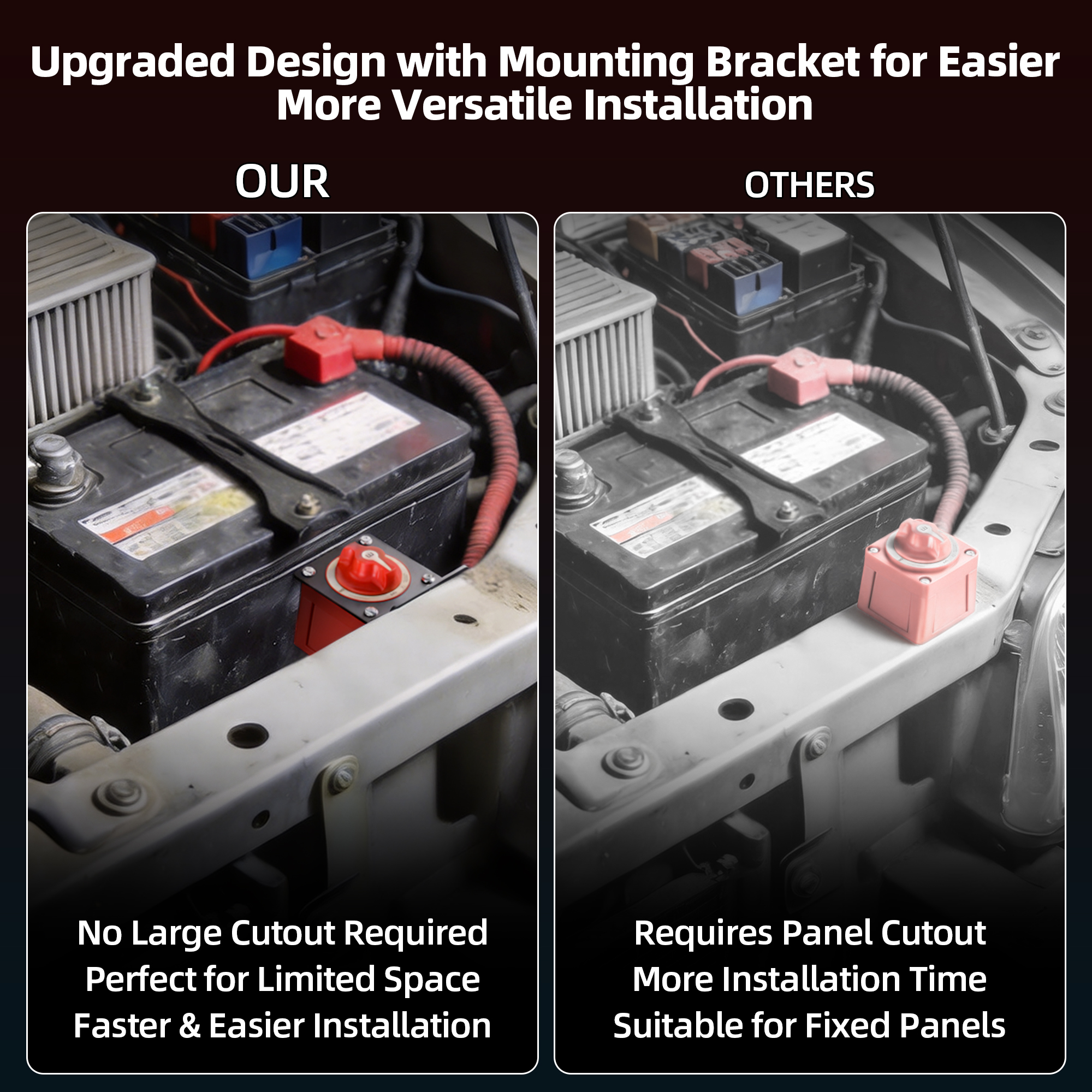

This bracket mount battery disconnect features an upgraded L-shape plate that eliminates the need for large, permanent panel cutouts. Four flexible mounting methods—surface, front-panel, rear-panel, or bracket—allow for a streamlined setup in compact engine bays or limited cabin spaces.
- Ignition-Protected Safety Housing
This flame-resistant nylon power switch is engineered with an ignition-protected design to prevent accidental combustion in gasoline-powered environments. The rugged, weather-resistant shell provides reliable circuit isolation for marine yachts, campers, and heavy-duty off-road vehicles.
- Superior High-Amperage Management
This heavy-duty battery isolator supports a massive 300A continuous load and handles intermittent cranking currents up to 900A. Wide voltage compatibility from 12V to 48V DC makes it a powerful control hub for managing high-capacity battery banks and solar arrays.
- Universal Power System Control
This master on-off battery disconnect switch effectively eliminates parasitic battery drain by completely isolating the power source during long-term storage. The intuitive ON-OFF knob provides an essential safety solution for trucks, trailers, boats, and off-grid renewable energy systems.

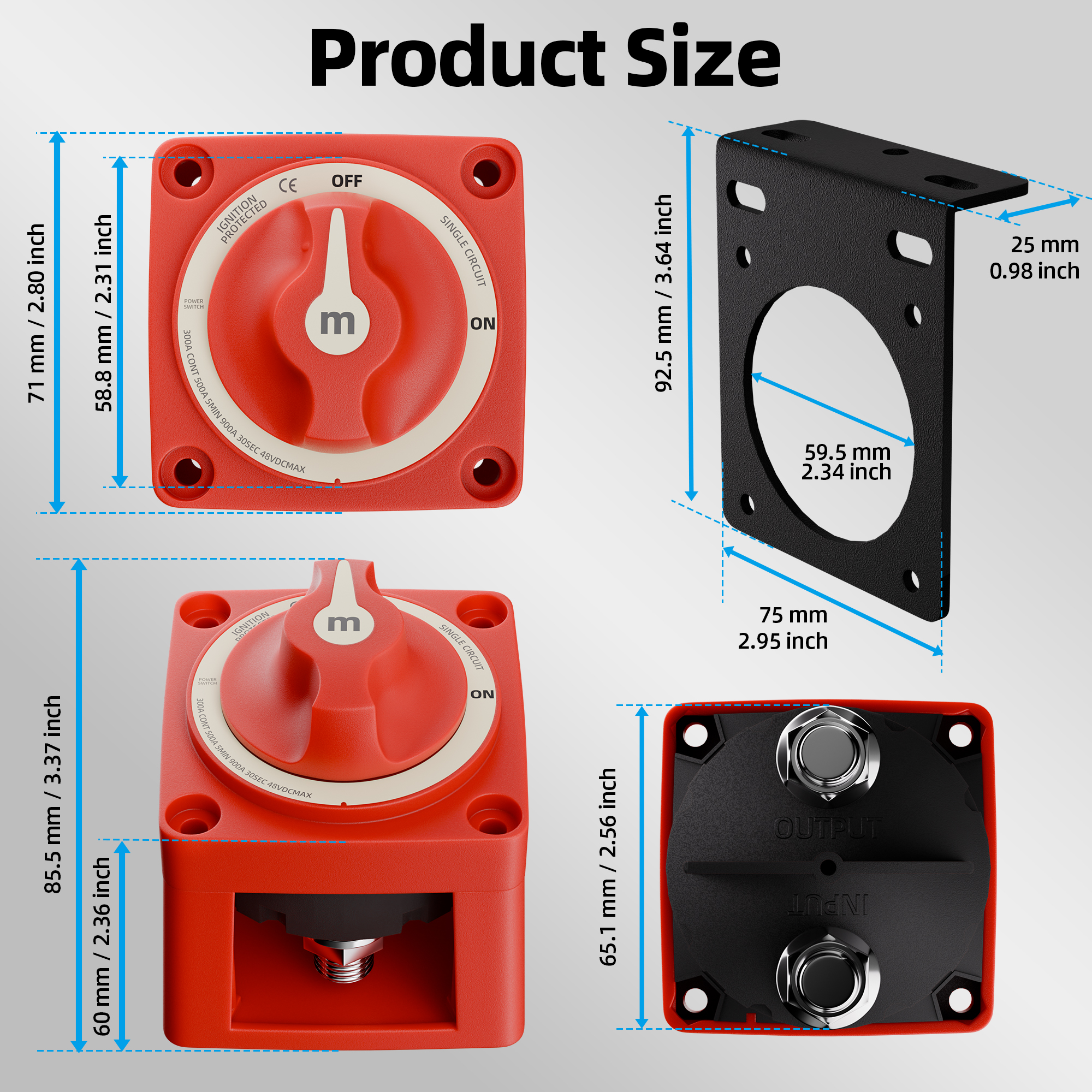

ASW-A6006+BRACKET ON-OFF Battery Disconnect Switch Specification
| Part NO | ASW-A6006+BRACKET |
| Product Type | Single Circuit ON-OFF Battery Switch |
| Continuous Rating | 300 Amps |
| Intermittent Rating | 500 Amps (5 Minutes) |
| Cranking Rating | 900 Amps (30 Seconds) |
| Operating Voltage | 12V – 48V DC |
| Terminal Material | Pure Copper (Tin-Plated) |
| Housing Material | Flame-Resistant Reinforced Nylon |
| Terminal Size | M10 (3/8″ Studs) |
| Mounting Options | Surface, Front Panel, Rear Panel, L-Bracket |
| Safety Certification | CE, Ignition Protected, IP66 Waterproof |
| Applications | Marine, RV, Truck, Trailer, Off-Road, Solar System |
