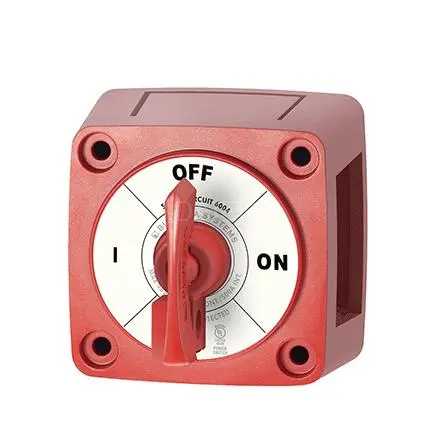

ASW-A6004 Single Circuit Marine Battery Switch
Part # ASW-A6004
ASW-A6004 Single Circuit Marine Battery Switch rated to 300A continuous duty, 500A intermittent duty, used for 12-48 VDC, Single Circuit ON-OFF.
300 Amps continuous rating for outboards and small gasoline or diesel engines.
Category :
Battery Switch
ASW-A6004 Single Circuit Marine Battery Switch Details
-
Simple Operation
ASW-A6004 switch disconnects and reconnects power by simply turning the knob.
-
Sturdy Construction
ASW-A6004 switch is made of plastic and solid brass nut, which is rust proof, corrosion-resistant, durable and safe to use.
-
Great Compatibility
ASW-A6004 switch can isolate and protect the electrical system, and can be locked separately or together with other switches.
-
Safety Protection
ASW-A6004 switch safely disconnects the battery when the vehicle or boat is not in use and eliminates any power drain from the battery.
-
Wide Application
ASW-A6004 switch is widely used in switches for cars, trucks, RVs, boats, and electrical equipment.
ASW-A6004 Switch Datasheet
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8″ (M10) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A |
| Cranking Rating 30 sec | 900A |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.65lb (0.29 kg) |
Still have a question about the ASW-A6004 Switch that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
ASW-A6004 Single Circuit Marine Battery Switch DataSheet Below
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8″ |
| Continuous Rating | 300A |
| Intermittent Rating | 500A |
| Cranking Rating 30 sec | 900A |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.65lb (0.29 kg) |
