222-102, 222-103, 222-105

222-102, 222-103, 222-105

Category :

CONNECTOR

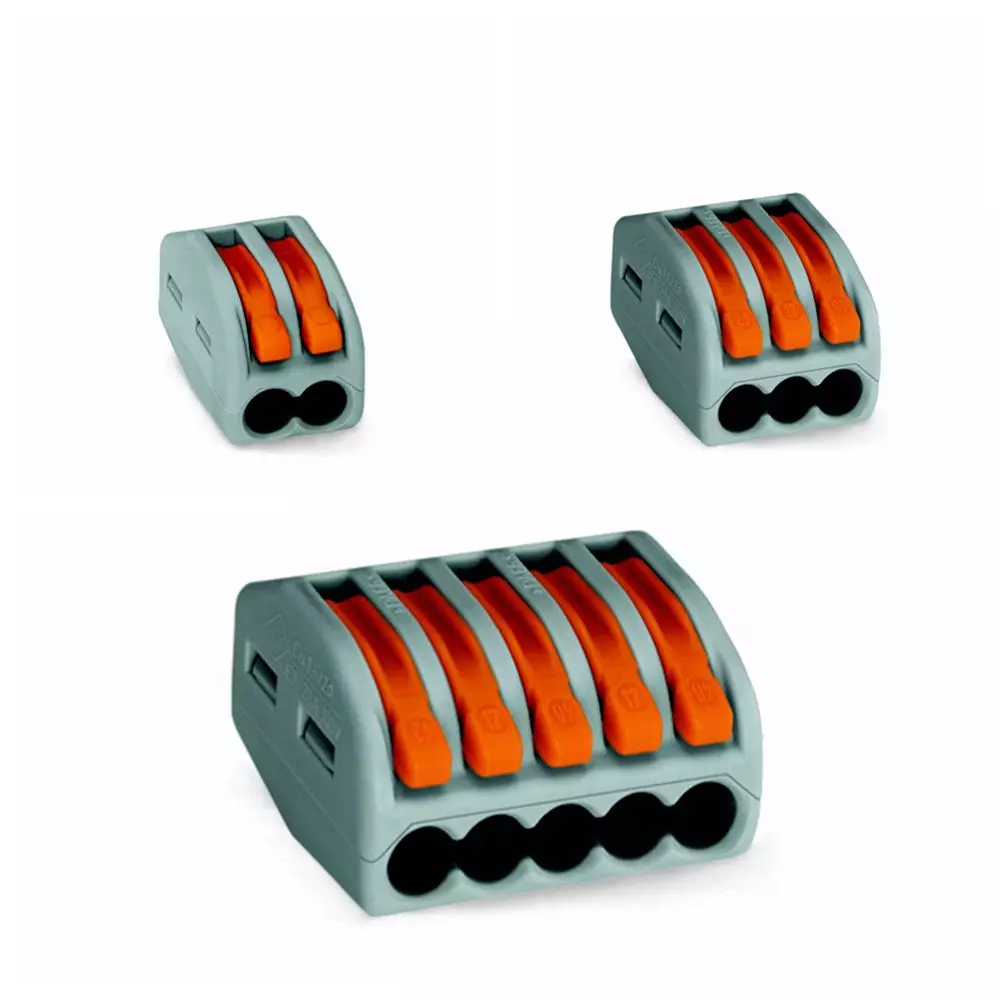

222-102, 222-103, 222-105 Terminal block:

This series terminal block are very popular in the market.
222-102 is 2-conductor.
222-103 is 3-conductor.
222-105 is 5-conductor.
The weight of 222-102 is 3.1g/pcs.
The weight of 222-103 is 4.2g/pcs.
The weight of 222-105 is 6.6g/pcs.

Pls check the datasheet below:

Connectable conductor materials:CopperActuation type:Operating lever
Cross section1 (Cross section / mm²):2/3/5 x 0,08 – 2,5Cross section2 (Cross section / AWG):28 – 12
Strip length (Strip length / mm):9 – 10Measured voltage (Measured voltage / V):400
Measured shock voltage (Measured shock voltage / kV):4Pollution degree (Pollution degree):2
Current intensity (Current intensity / A):32P (NO. OF POLES):2/3/5
No. of connection Points (No. of connection Points):2/3/5COLOR (COLOR):grau
Operating Temperature:-25℃~+85℃OEM or ODM:Available

222-102:

222 terminal block

222-103:

222 terminal block

222-105:

222 terminal block
