TB-3506 35A 600V 6 Position Dual Row Terminal Strip with M4 Screw Terminals

Part#TB-3506

The terminal strip is a 6 position dual row of screw-type wire connector with cover, 35A 600V maximum rating and terminal size is M4 screw terminal.

Each screw pair is one isolated circuit and the closed-back design completely insulates power from the mounting surface.

Category :

Busbar
  • certificate

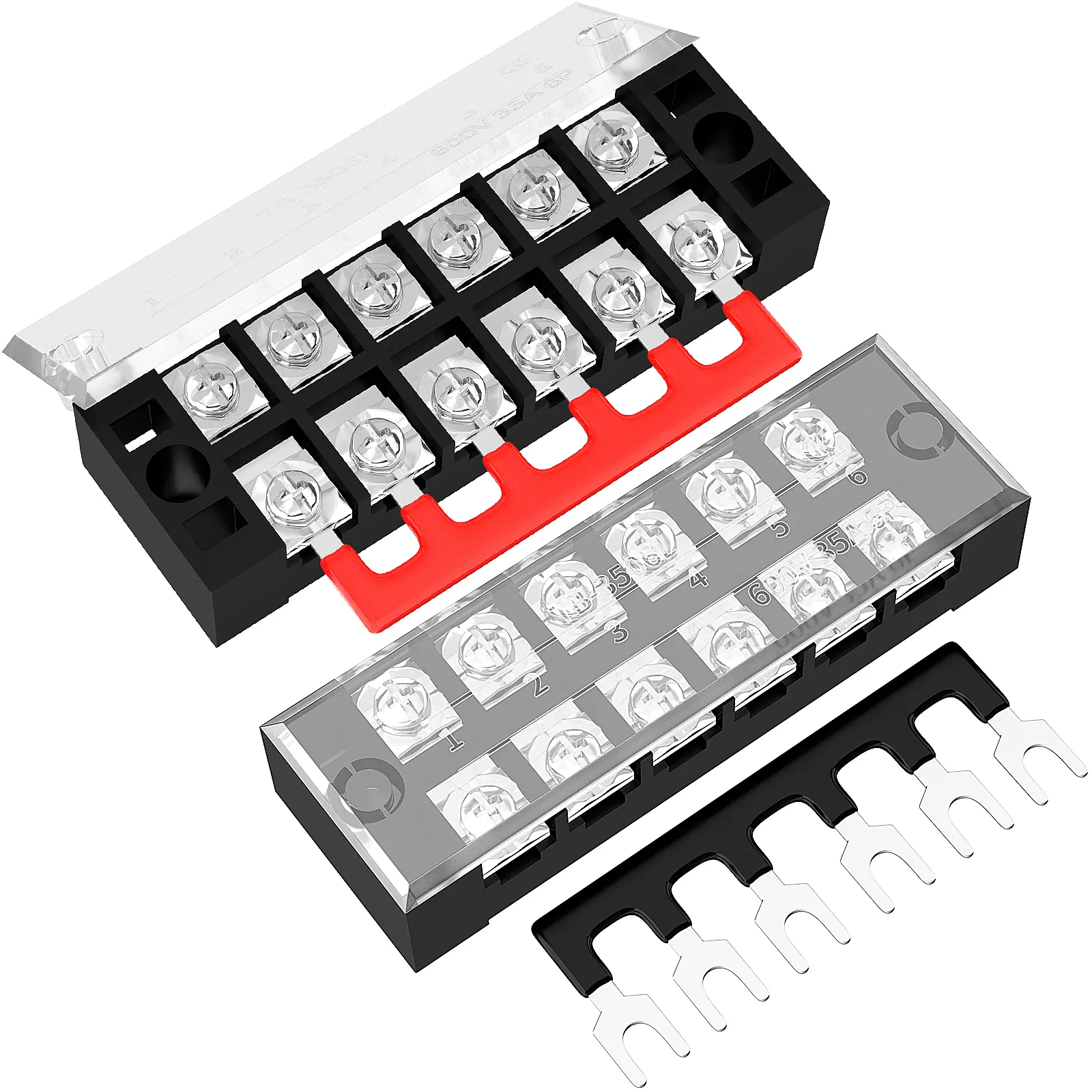

TB-3506 35A 600V 6 Position Dual Row Terminal Strip with M4 Screw Terminals

TB-3506 6 Position Dual Row Terminal Strip Details

  • Quality Materials & No More Messy Wiring

Our 6-position electrical terminal blocks are made from flame-retardant polycarbonate and nickel-plated copper with excellent electrical conductivity and resistance to oxidation for consistent operation and long life. Very easy to install, simply screw in and connect the cables. It can meet your different wiring needs for mechanical, electrical, appliance, computer, or other automation equipment.

  • Heavy Duty & Easy Installation

Our terminals allow you to connect each power cable to each source (ground, battery, and ignition) very cleanly. Great for compact wiring jobs. Terminal strips greatly simplify and tidy up your installation, no more cluttered battery terminals. The pressure washer-style terminals accept bare wires and the jumpers allow signals or power to be neatly distributed. You can easily disconnect a branch of wiring without tearing down the entire system.

  • Protective Transparent Cover Design

Compared with traditional terminal blocks, Daier’s terminals have a transparent cover to protect the terminals from accidental touching during use. We also provide red and black jumpers to help customers distinguish positive and negative wires during installation. The case will not break in a low-temperature environment, clean and beautiful with a smooth surface. It is safer when being protested by the seller.

  • Practical Terminal Block & Neat Wiring Work

Daier double-row screw terminal strips can help you connect bare wires to avoid clutter, while jumper wires can make signal or power distribution neat, making wiring connection easier and more efficient. Easy to install, secured by two screw holes at each end of the terminals. With Daier’s screw terminal strips, you can quickly disconnect a wiring branch without removing the entire system.

TB-3506 6 Position Dual Row Terminal Strip Datasheet

Voltage Rating 600V
Amperage Rating 35A
Number of Row 2 Row
Number of Position 6 Position
Terminal Size M4 Screw Terminal
Connector Type Screw
Contact Material Copper
Contact Plating Material Nickel Plated
Mounting Type Panel Mount
Specification Met CE

Other Products of Different Specifications

TB-3510 10 position with cover, 35A, 600V, 12mm space
TB-3512 12 position with cover, 35A, 600V, 12mm space

Still, have a question about the TB-3506 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
