D4MC-5000

Category :

Limit Switch

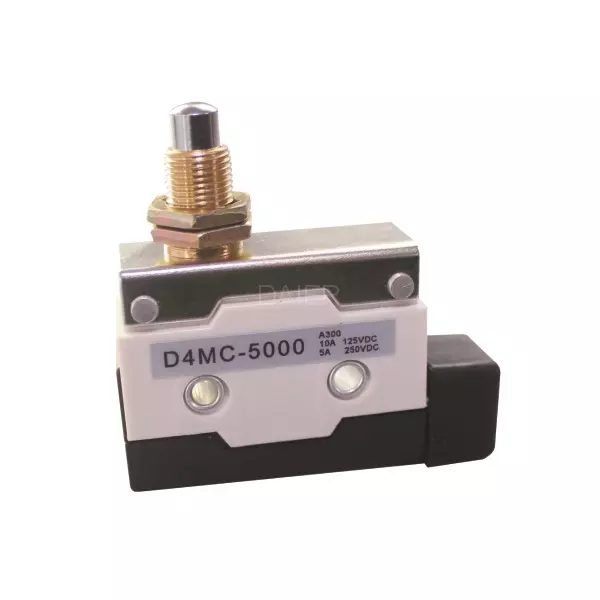

D4MC-5000 safety micro switch:

The D4MC-5000 safety micro switch of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available.

Pls check the datasheet below:



Housing: Nylon 66 Lever: plunger lever
Contact Configuration: SPDT Switch Operation: OFF – momentary ON
Rating: 15A 125V/250V Operating Temperature: -25℃~+80℃
Contact Resistance: ≤30mΩ Electrical Life: ≥ 100,000 Cycles
Insulation Resistance: ≥100mΩ (500VDC) Mechanical Life: ≥ 1,000,000 Cycles
Degree of protection: IP00 OEM or ODM: Available
