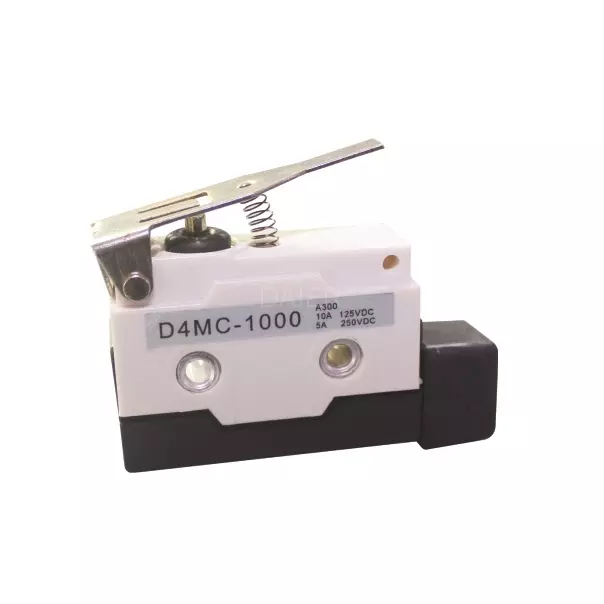

D4MC-1000

D4MC-1000

Category :

LIMIT SWITCH

D4MC-1000 limit switch micro:

The D4MC-1000 limit switch micro of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available.

Pls check the datasheet below:



Housing:Nylon 66Lever:middle lever
Contact Configuration:SPDTSwitch Operation:OFF – momentary ON
Rating:15A 125V/250VOperating Temperature:-25℃~+80℃
Contact Resistance:≤30mΩElectrical Life:≥ 100,000 Cycles
Insulation Resistance:≥100mΩ (500VDC)Mechanical Life:≥ 1,000,000 Cycles
Degree of protection:IP00OEM or ODM:Available
