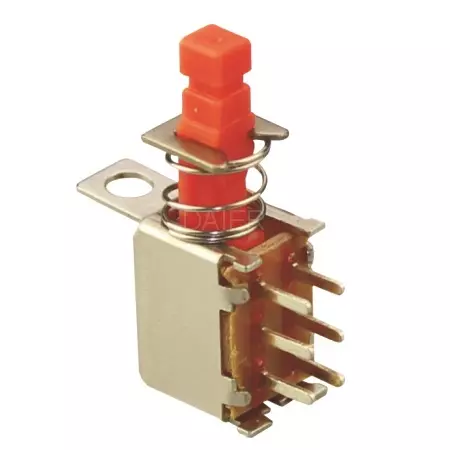

PS-22F05L Push Switch With Bracket

PS-22F05L Push Button Switch With Bracket

PS-22F05L Push Switch With Bracket

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

For more details, contact us here

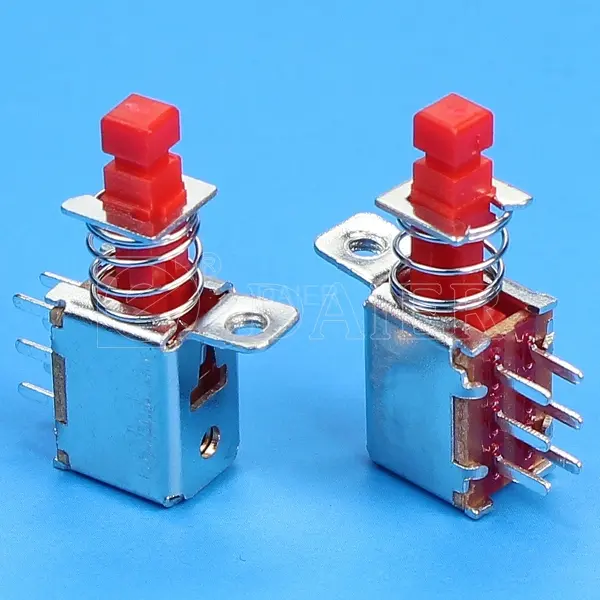

PS-22F05L Push Switch With Bracket related product, pls check the detailed information as below:

PS-22F05L: ON-ON
PS-22F05N: ON-(ON)

Pls check the datasheet below:



Rating: 0.5A 50VDC Contact Resistance: 100mΩ max
Electrical Life: ≥ 10,000 Cycles Function: ON-(ON) or ON-ON
Dielectric strength: 500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
