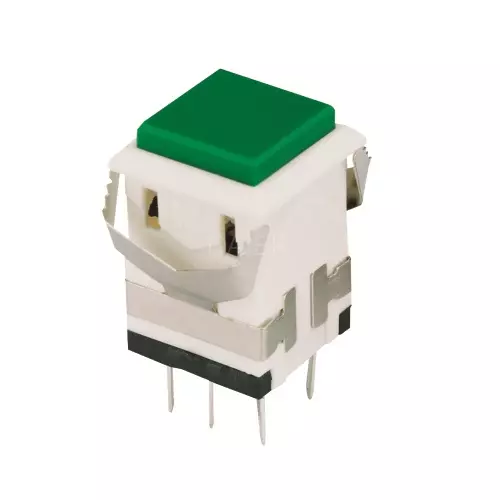

KD2-23 Electrical Square Push Button Switch

KD2-23 ON-ON

KD2-24  ON-(ON)

3A 250VAC, 6A 250VAC( Without LED)

KD2-23 Electrical Square Push Button Switch

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

There are many color of button to choose from.

KD2-23 Electrical Square Push Button Switch related product, pls check the detailed information as below:

KD2-23: ON-ON
KD2-24: ON-(ON)

Pls check the datasheet below:


Rating: 3A 250VAC/6A 125VAC Contact Resistance: 100mΩ max
Electrical Life: ≥ 10,000 Cycles Function: ON-(ON) or ON-ON
Dielectric strength: 500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
