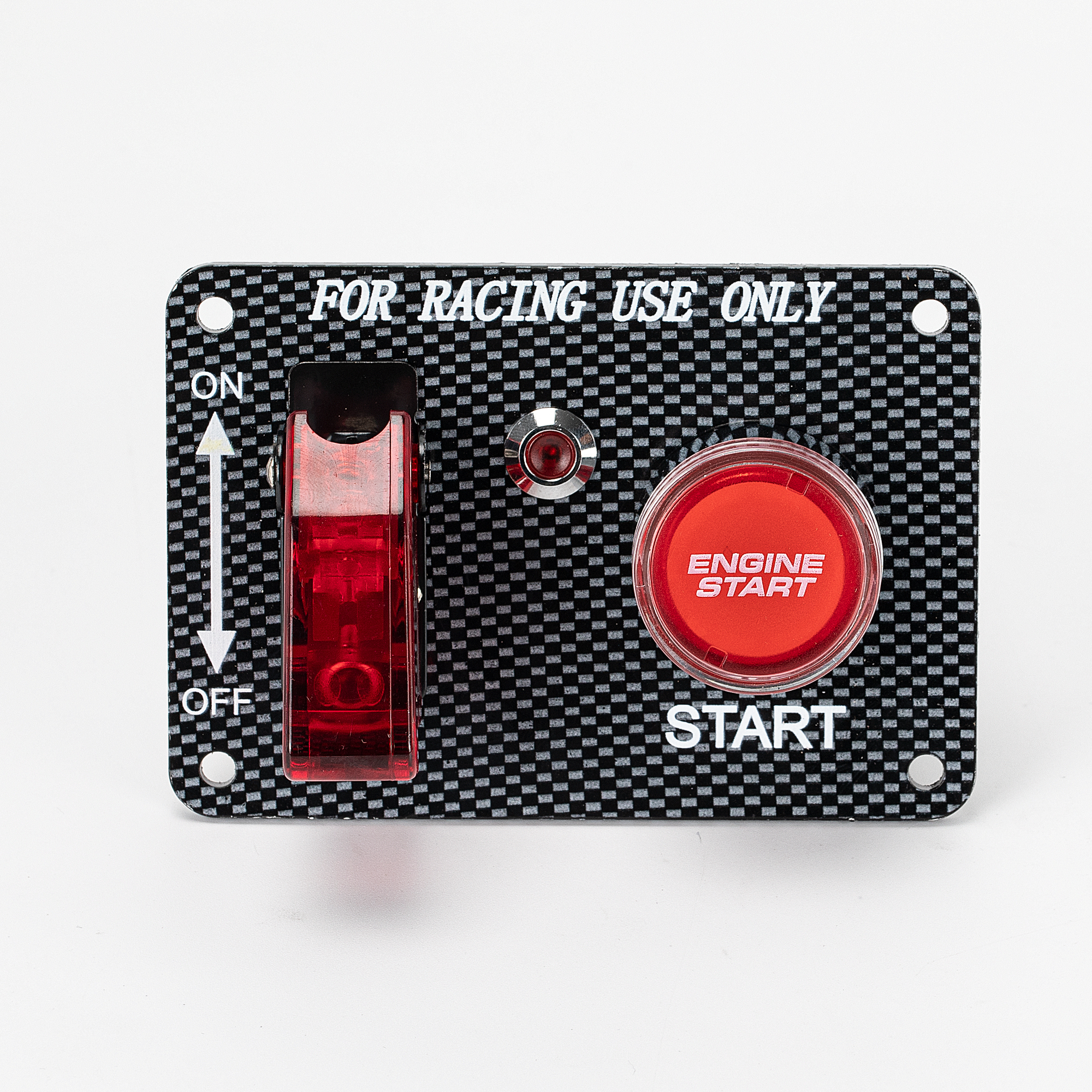

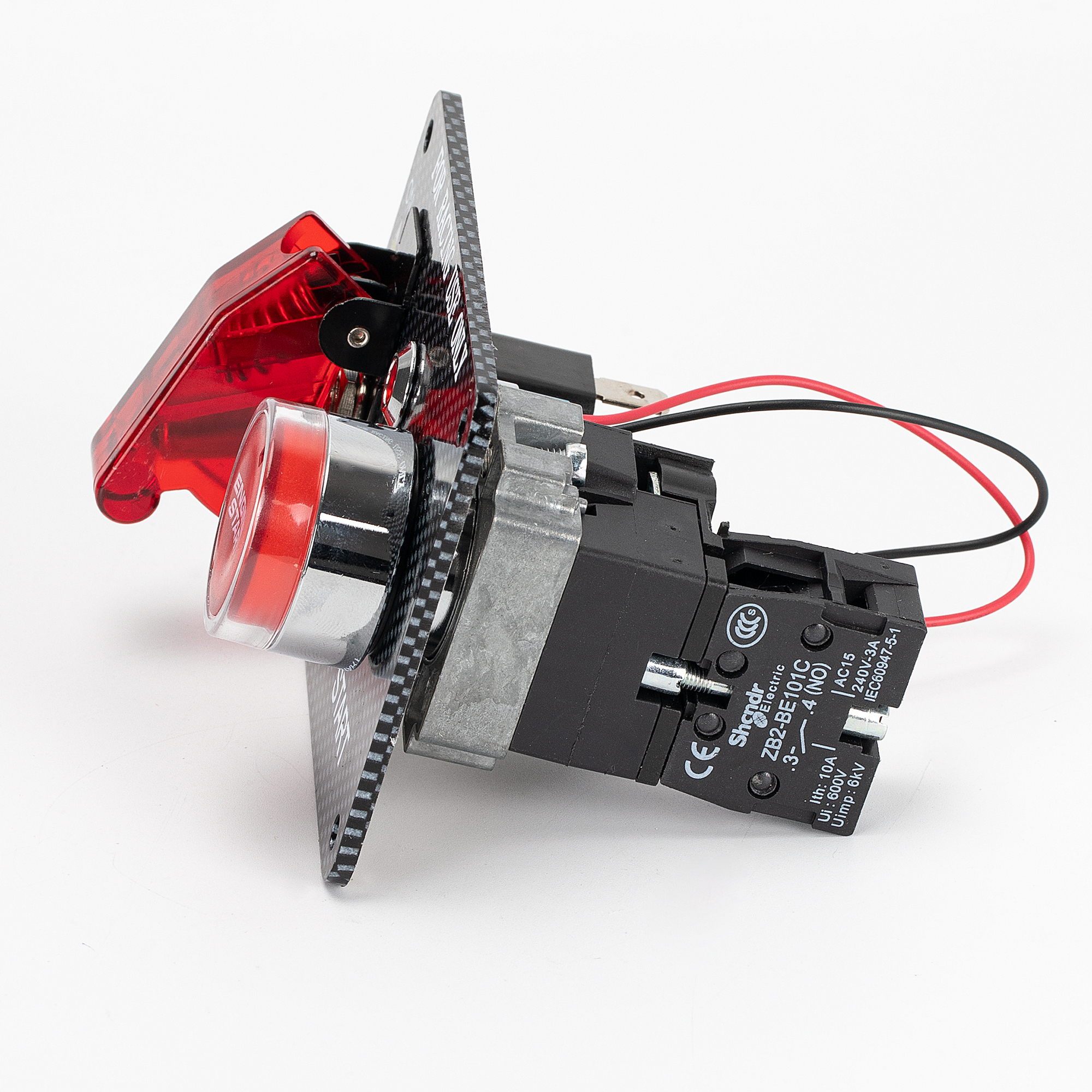

PN-SAC3 12V Racing Car Ignition Switch Panel
Part#PN-SAC3
The ignition switch panel, Operating Voltage: 12V DC and includes 1 x indicator light, 1 x ignition switch, and 1 x red LED toggle switch.
This starter ignition switch is suitable for professional racing cars, automotive DIY, or other vehicles.
PN-SAC3 12V Racing Car Ignition Switch Panel Details
- Extreme racing style to give your car panel a sporty and cool look.
- High-quality carbon fiber panel for long-lasting comfortable touch.
- Red engine start button with a toggle switch for other uses, built-in indicator light, on/off switch, and start button.
- Cool gadget, pre-drilled mounting holes designed for easy installation, panel dimension: approx. 95 * 65 * 85 mm.
- It can be used as an auto-ignition switch for racing and touring cars. As a starter switch, battery switch, blast flash, undercarriage light, fog light, overhead light, and immediate power failure.
PN-SAC3 Toggle Switch Datasheet
| Rating | 20A 12V DC |
| Contact Resistance | 50m ohm Max. |
| Insulation Resistance | DC 500V 100M ohm Min. |
| Dielectric Strength | AC 1500V 1 minute |
| Operation Temperature | -20℃ ～+85℃ |
| Switch Function | 3P SPST ON-OFF(LED Red) |
PN-SAC3 Starter Switch Datasheet
| Rating | 50A 12V DC |
| Contact Resistance | 50m ohm Max. |
| Insulation Resistance | DC 500V 100M ohm Min. |
| Dielectric Strength | AC 1500V 1 minute |
| Operation Temperature | -25℃ ～+85℃ |
| Switch Function | 3P SPST (ON)-OFF (LED Red) |
| LED Lens Color | ∅5 White diffuse |
| VF/IF | 3.7V/20mA |
| Frame | Nylon 66 (94V-2), Black |
| Cover | ABS(94HB) |
| Terminals | Copper Alloy |
| Actuator | PC (94V-2), Red |
PN-SAC3 Dimension Drawing
Still, have a question about the PN-SAC3 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
