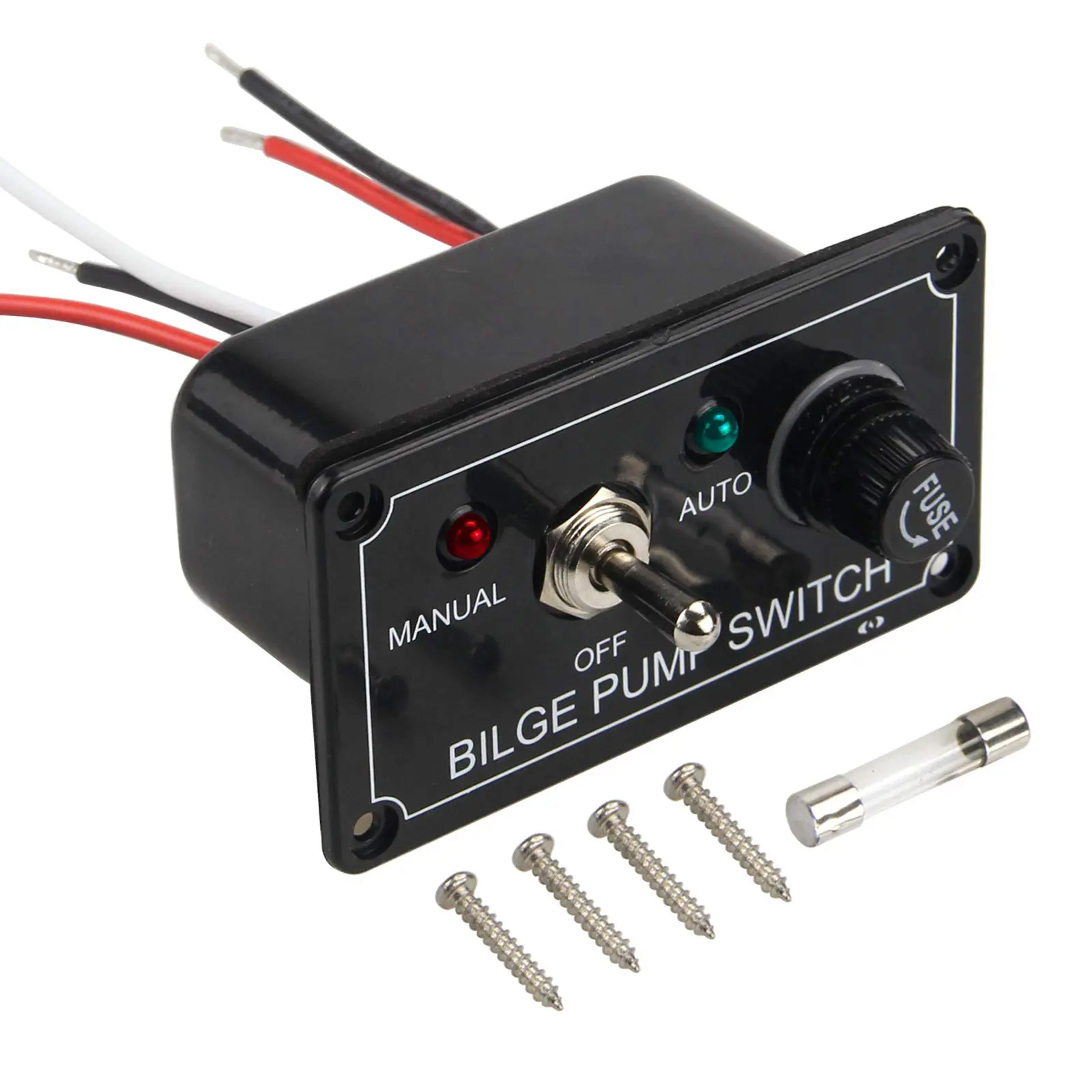

PN-BPS-1 3-Way Bilge Pump Switch Panel with Fuse


The 3-way bilge pump switch panel with 3 way toggle switch (MANUAL-OFF-AUTO), LED indication and fuse holder with pre-installed fuse.

The maximum possible amperage for each panel is determined by the lower of the total switch rating or the maximum cumulative amperage listed above.

Category :

Switch Panel

PN-BPS-1 3-Way Bilge Pump Switch Panel with Fuse Details

  • 3-Way Toggle Switch

3-way toggle switch (manual-off-auto) with LED indication. Package includes 1 x switch panel, 1 x 5A fuse, 4 x screws and 1 x user manual.

  • High Quality

The toggle switch panel with a professional manufacturing process, good design, high-quality material, stable performance and reliability, and pre-installed fuse.

  • Safe to Use

The 3-way toggle switch has multiple protection functions such as output short circuit protection, overload protection and polarity reversal protection, making it safer to use.

  • Easy to Install

The toggle switch panel is easy to install. Size (W*H): about 90*50mm/3.54*1.97in. Panel opening (W*L) about 75*40mm/2.95*1.57in.

  • Wide Application

This bilge pump switch panel is suitable for 12V cars/yachts/ATVs with an automatic bilge system with an automatic pump or external float switch.

PN-BPS-1 Datasheet

Material Plastic and Metal
Rating 5A,12V DC
Feature With aluminum plate and LED indication
Function ON-OFF-ON, 3 Position ((MANUAL – OFF- AUTO) )
Size (W * H) Approx. 90*50mm/3.54*1.97in
Panel Cut-out (W * L) Approx. 75*40mm/2.95*1.57in

PN-BPS-1 Wiring Diagram

PN-BPS-1 3-Way Bilge Pump Switch Panel Wiring Diagram

Still, have a question about the PN-BPS-1 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
