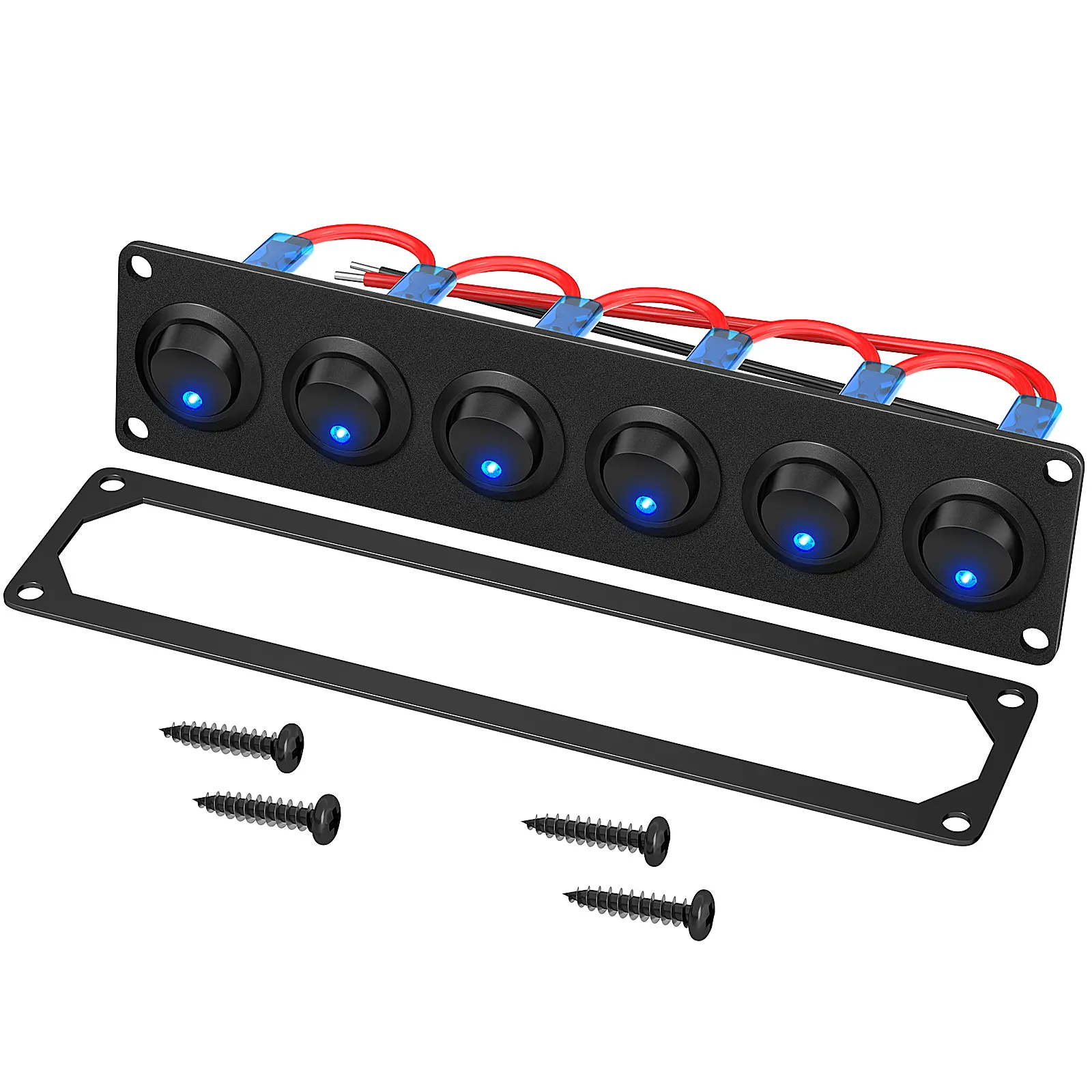

PN-R6-101EN 6 Gang Round Rocker Switch Panel


The 6 gang round rocker switch panel with LEDs is designed to connect and disconnect a DC12V 20A / DC24V 10A electrical circuit at will.

This switch is an SPST switch, ON-OFF, with the 3rd pole connected to the earth with the LED. When the switch is turned on, the LED will be lit.

Category :

Switch Panel

PN-R6-101EN 6 Gang Round Rocker Switch Panel Details

  • Sturdy and Durable

The switch panel is composed of an aluminum panel and superior ABS&PC switches. It possesses superior physical properties, good temperature resistance and electrical performance, and strong flame retardancy to ensure its durability.

  • Easy Installation

This switch panel features a pre-wired design that makes it easy to connect wires for your vehicle. The wiring harness on the switch can be easily disconnected by pressing down the clips, the blade will not be pulled out and damage the switch.

  • Water Resistant

This switch panel features an IP65 waterproof-rated rocker switch and splash-proof panel that is well adapted to the marine environment.

  • Widely Application

This switch panel is suitable for 12-24V DC systems and is commonly used in automobiles, ATVs, UTVs, RVs, boats, etc.

PN-R6-101EN Datasheet

Material Aluminum, ABS, and PC
Installation Pre-wired
Mounting Type Panel Mount
Operation Mode SPST (Single Pole Single Throw), ON/OFF
Panel Size 6.28″ x 1.49″ (L x W)
Operating Voltage 12V / 24V DC
Operating Current 20 Amp / 10 Amp

Still, have a question about the PN-R6-101EN that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
