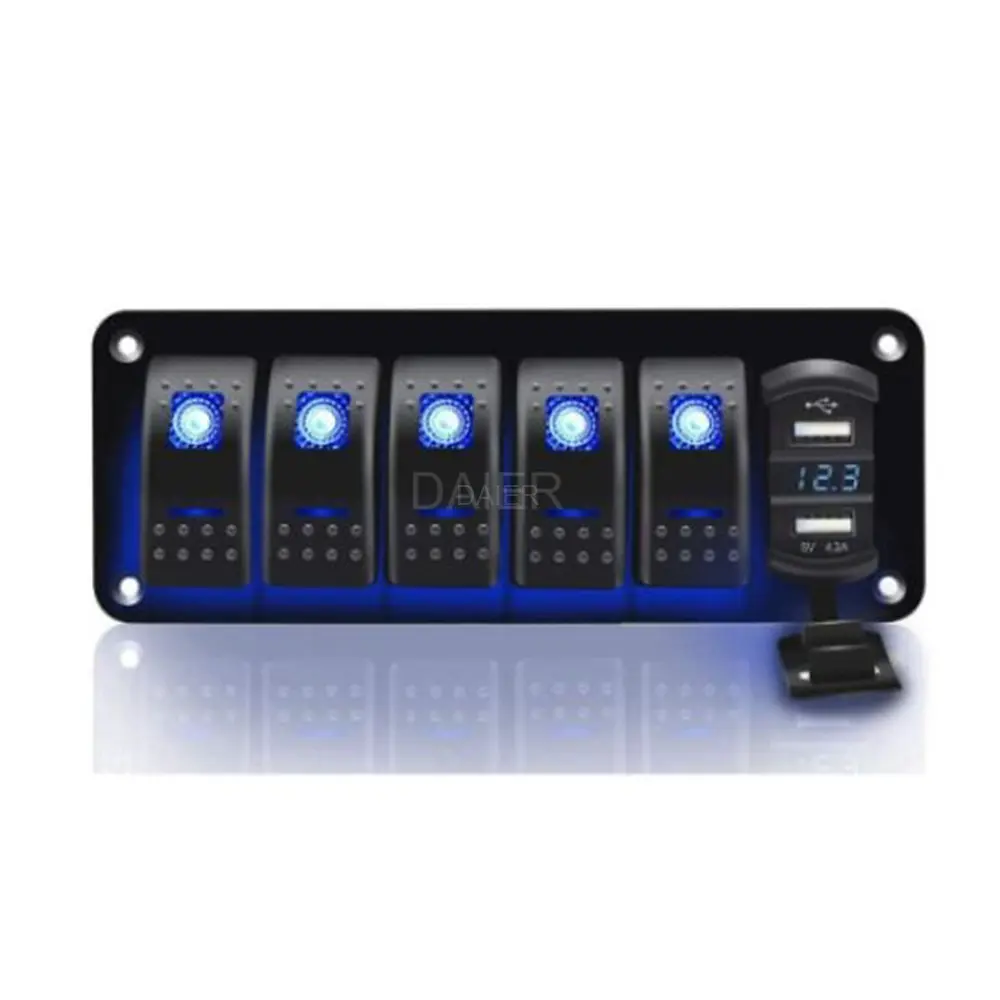

PN-1816-L5U1-2 5 Gang Waterproof Switch Panel

Part# PN-1816-L5U1-2

PN-1816-L5U1-2 5 gang waterproof switch panel used for 20A/12V and 10A/24V, 5×rocker switches, 1×4.2A dual USB charger with a voltmeter.

The voltmeter is built in the center of the USB charger, and clearly shows the current readings of working volts, preventing problems caused by low voltage.

Category :

Switch Panel

PN-1816-L5U1-2 5 Gang Waterproof Switch Panel Details:

  • Safety Protection

The switch panel has a built-in fuse, which is easy to replace and prevents overheating, overcurrent, and short circuit.

  • Strong Durability

The switch panel is made of reinforced aluminum plate and pins with good conductivity to ensure its durability.

  • Visual Feedback

Illuminated toggle switches operate at 12 volts DC and light up to provide visual feedback of your circuit operation.

  • Water Resistance

The switch panel adopts waterproof marine switches and a splash-proof panel, which can be well adapted to the marine environment.

  • Wide Application

This switch is suitable for 12v-24v systems and widely applicable for cars, TV/ATV, trucks, trailers, RV, boats, yachts, etc.

PN-1816-L5U1-2 Datasheet

Rating 12V 20A/24V 10A
Function SPST 5PIN ON/OFF
Installation Pre-wired
Material ABS, Nylon, Aluminum
Waterproof grade IP65
Operating Temperature -25℃~+85℃
LED Color Green/Red/Blue

Other products with different specifications: PN-1813-L2U1-2PN-1814-L3U1-2, PN-1815-L4U1-2, PN-1818-L7U1-2.

Still have a question about the PN-1816-L5U1-2 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
