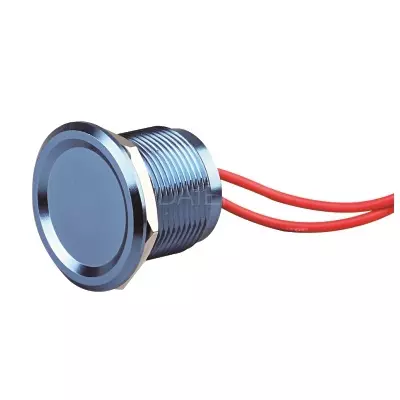

PZ19C-10 19mm piezo buttons

PZ19C-10 19mm piezo buttons, Momentary,No LED, Concave Button

Category :

Piezo Switch

PZ19C-10 19mm piezo buttons:

Daier announces the anti-vandal switch series, the PZ19C-10 19mm piezo buttons is the most popular item in our push button switch series.


The PZ19C-10 19mm piezo buttons /push button switch is RoHS certified, offering a rating of 3A 250VAC.


More Features


1. PZ19C-10 19mm piezo buttons is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).


2. It offers multiple color ring illumination options and multiple voltage options.


3. For LED, it offers one color, bi-color, tri-color options.


4. It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.


5. For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.


6. These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers, and industrial-type applications etc.


We can’t talk out their advantage in a few words, but they are more and more popular in the world. We provide our product at Factory Price. Contact Directly & Get Live Quotes Now

Pls Check The Datasheet Below


Rating: 3A 250VAC Contact Resistance: 50mΩ max
Electrical Life: 50,000 Cycles Function: momentary or latching
Dielectric strength: 2,000VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1,000mΩ min Panel cutout: 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc.
LED voltage: 3V, 6V, 12V, 24V, 48V, 110V, 220V Waterproof Grade: IP40-IP67
 Contact Configuration:  Single Pole, Double Pole OEM or ODM: Available
