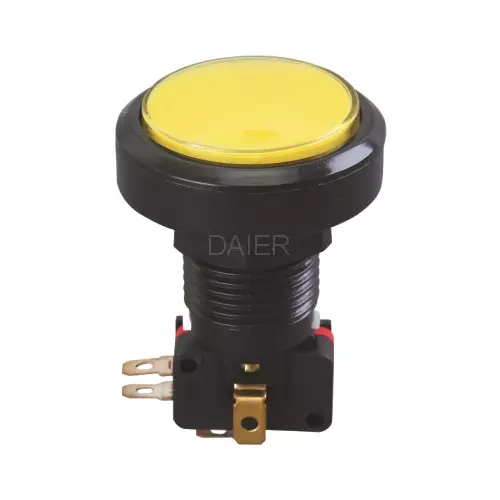

PBS-32-2 Push Button with Microswitch for Game
PBS-32-2 Push Button with Microswitch for Game
Category :
Arcade Button Switch
PBS-32-2 Push Button with Microswitch for Game:
Game push button switch is one of the most easy and quick to operate.
Momentary-action, S.P.D.T lighted pushbutton switch for displays and games.
The rugged snap-action switch assembly is designed for millions of operations.
Rated 5 Amps @ 125/250 Vac.
The assembly is lighted with a replaceable 12 Volt, 3 Watt, #161 wedge-base lamp.
For similar switches in a variety of colors.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
PBS-32-2 Push Button with Microswitch for Game datasheet below:
| Rating: | 5A 250VAC | Contact Resistance: | ≤30mΩ |
| Electrical Life: | ≥ 10,000 Cycles | Function: | OFF-(ON) |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
