PBS-30-2 Round Game Push Button Switch

PBS-30-2 Round Game Push Button Switch, have with or without LED for your choice

Category :

Game Switch

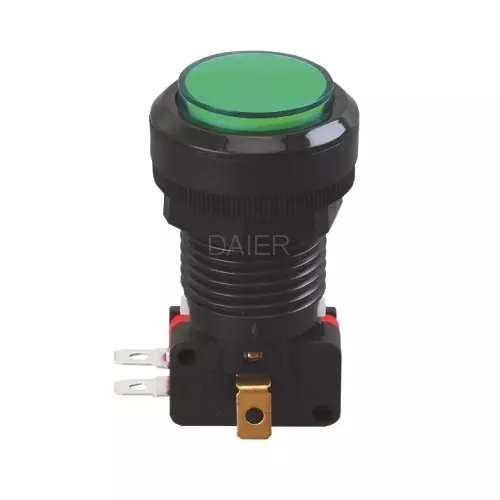

PBS-30-2 Round Game Push Button Switch

Game push button switch is one of the most easy and quick to operate.

Momentary-action, S.P.D.T lighted pushbutton switch for displays and games.
The rugged snap-action switch assembly is designed for millions of operations.
Rated 5 Amps @ 125/250 Vac.
The assembly is lighted with a replaceable 12 Volt, 3 Watt, #161 wedge-base lamp.
For similar switches in a variety of colors.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

PBS-30-2 Round Game Push Button Switch datasheet below:



Rating: 5A 250VAC Contact Resistance: ≤30mΩ
Electrical Life: ≥ 10,000 Cycles Function: OFF-(ON)
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
