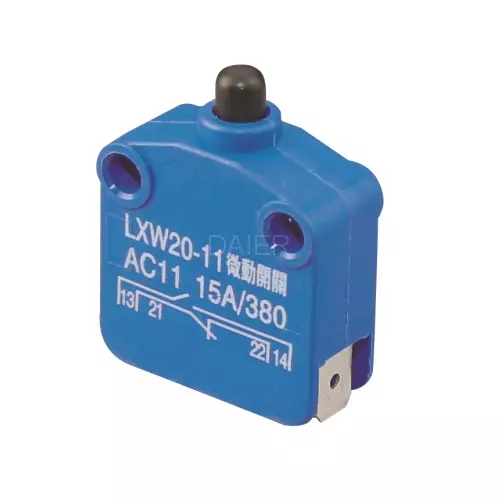

LXW20-11 Micro Momentary Push Switch

LXW20-11 Micro Momentary Push Button Switch

LXW20-11 Micro Momentary Push Switch

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

There are many color of button to choose from.



For more details, contact us here

LXW20-11 Micro Momentary Push Switch datasheet below:



Rating: 15A 380VAC Contact Resistance: 100mΩ max
Electrical Life: ≥ 10,000 Cycles Function: ON-(ON)
Dielectric strength: 500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
