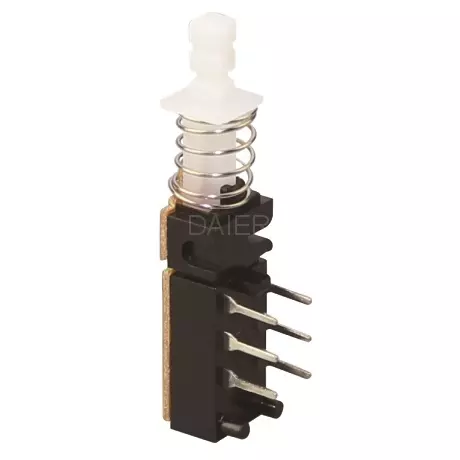

KZJ2X2-1A Latching ON ON Switch

KZJ2X2-1A DPST Push Switch

KZJ2X2-1A Latching ON ON Switch

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

For more details, contact us here

KZJ2X2-1A Latching ON ON Switch related product, pls check the detailed information as below:

KZJ2X2-1B: ON-(ON)

Pls check the datasheet below:


Rating: 0.5A 50VDC Contact Resistance: 100mΩ max
Electrical Life: ≥ 10,000 Cycles Function: ON-(ON) or ON-ON
Dielectric strength: 500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
