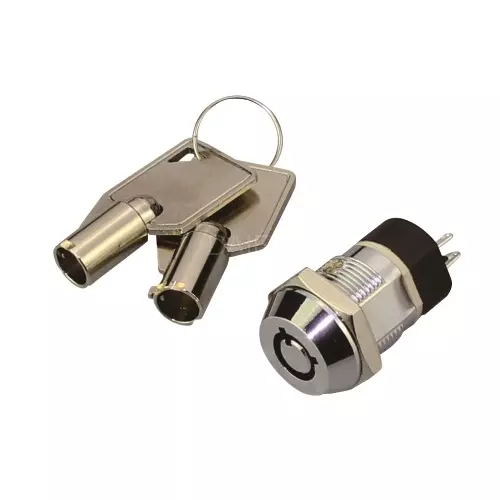

K19-03-201 lock switch:
A quality product containing parts manufactured from brass, steel and alloy materials.
The barrel is finished in chrome with a polished bezel.
The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze.
The barrel is 19mm diameter across the threads.
Overall length of lock when assembled is 37.5mm.
The K19-03-201 lock switch related product, pls check the detailed information as below:
| K19-03-201： | ON-OFF, 4P, DPST |
| K19-03-102: | ON-ON, 4P, SPDT |
Pls check the datasheet below:
| Rating: | 4A 125VAC/2A 250VAC |
Withstand Voltage:
|
AC500V(50Hz) 1min 2mA |
| Contact resistance: | ≤100mΩ | Insulation resistance: | ≥500mΩ（500VAC） |
| Mechanical Life: | 5,000 times | Key position: | Key removable at one position or both position |
