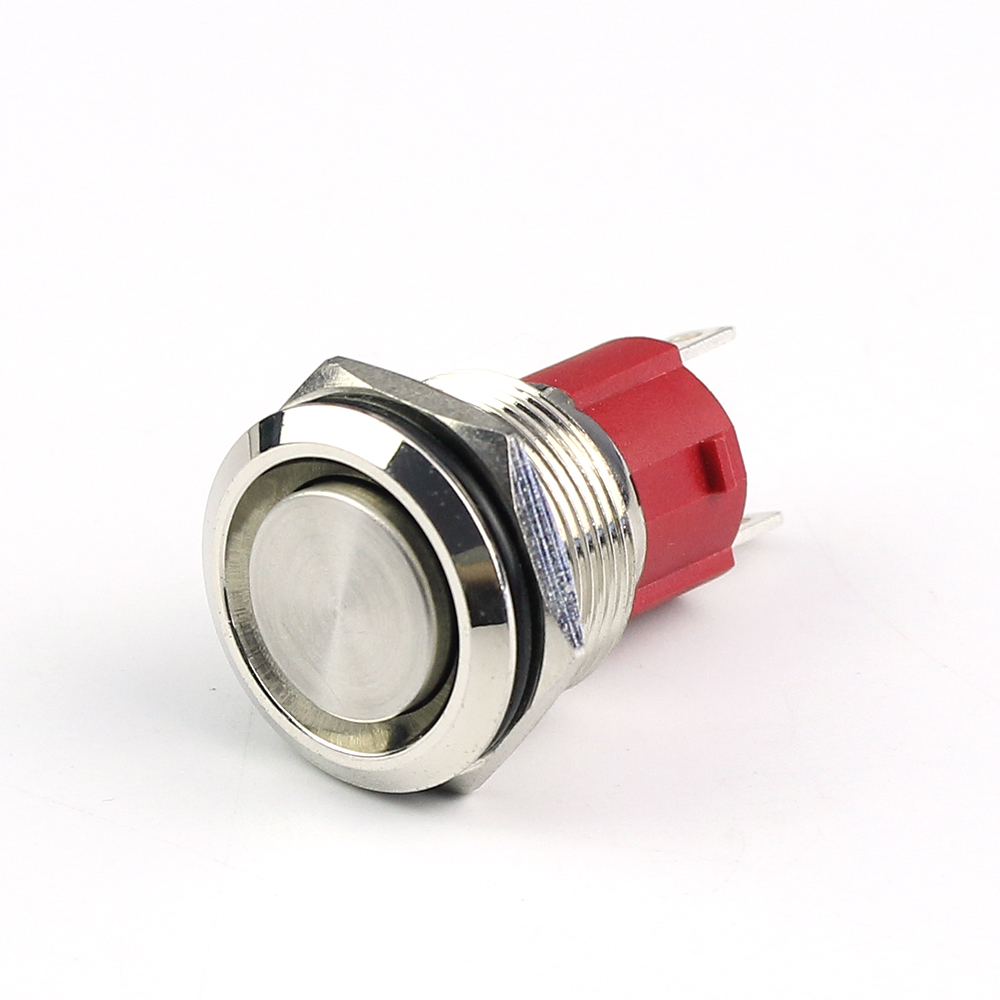

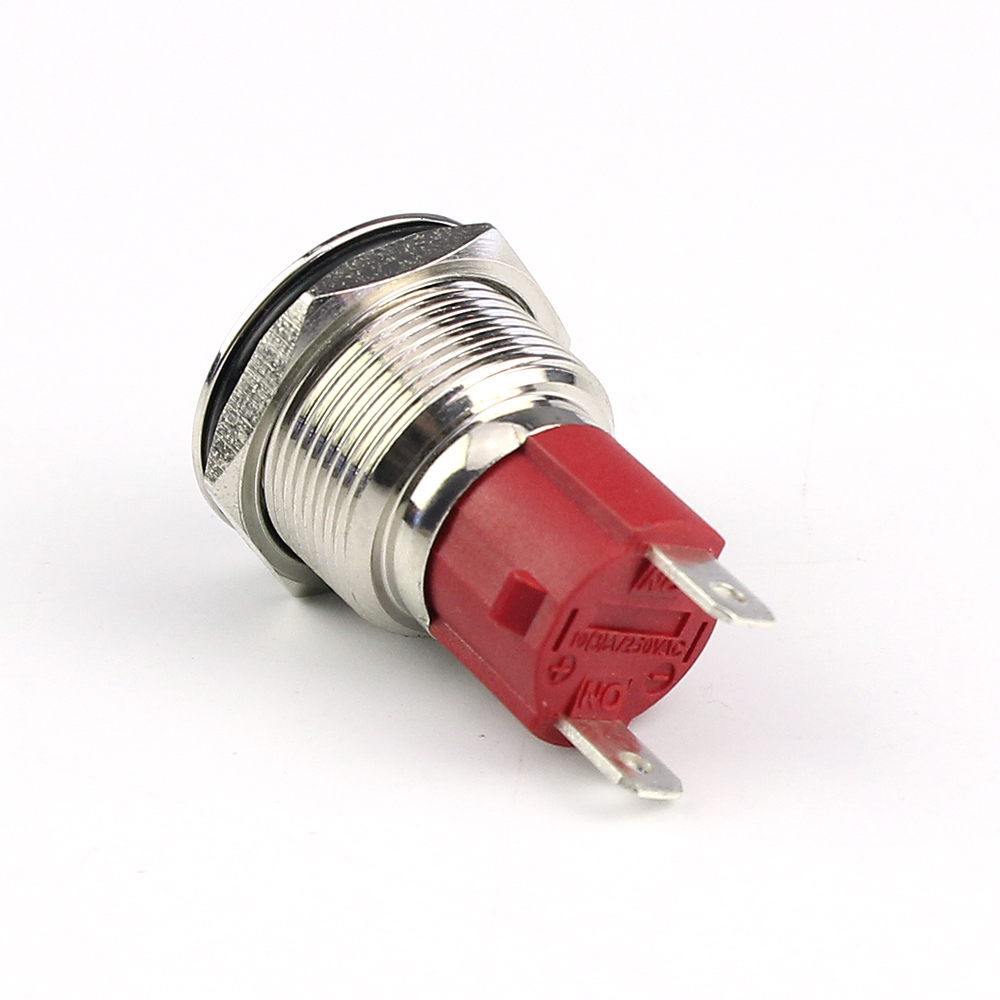

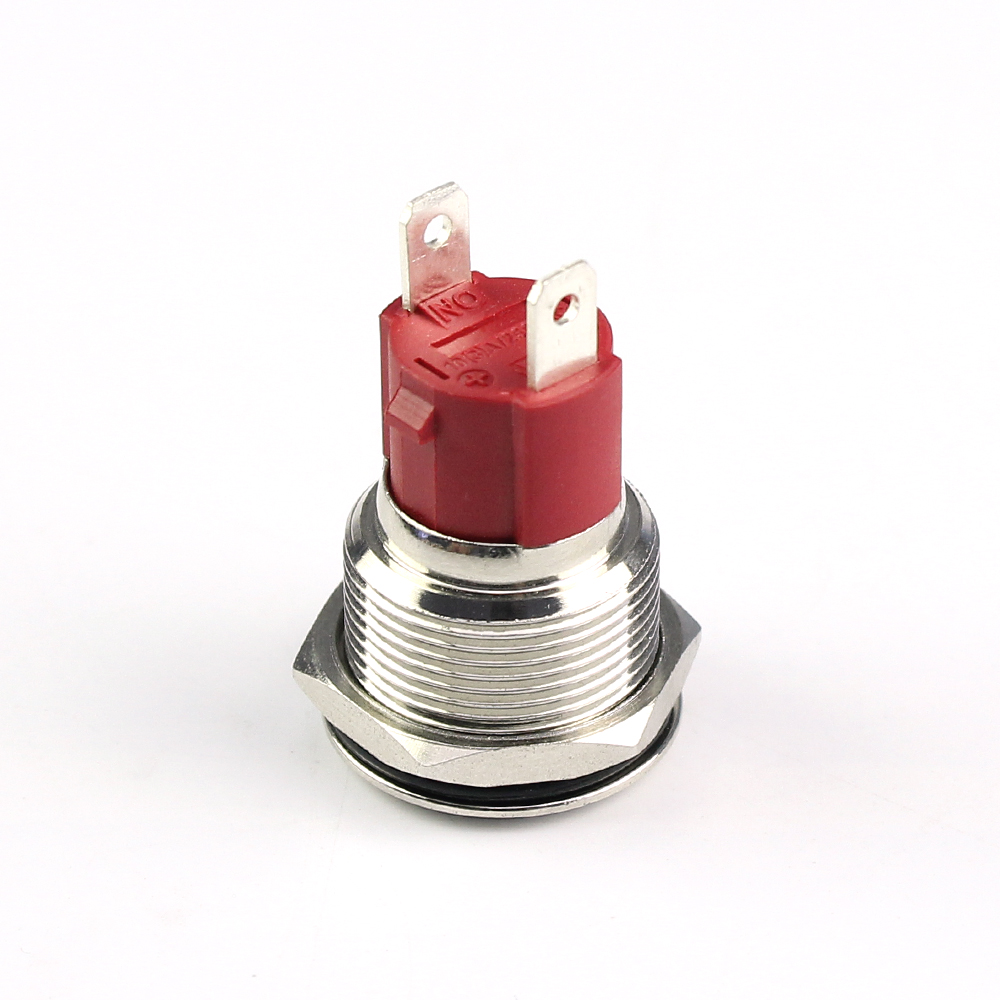

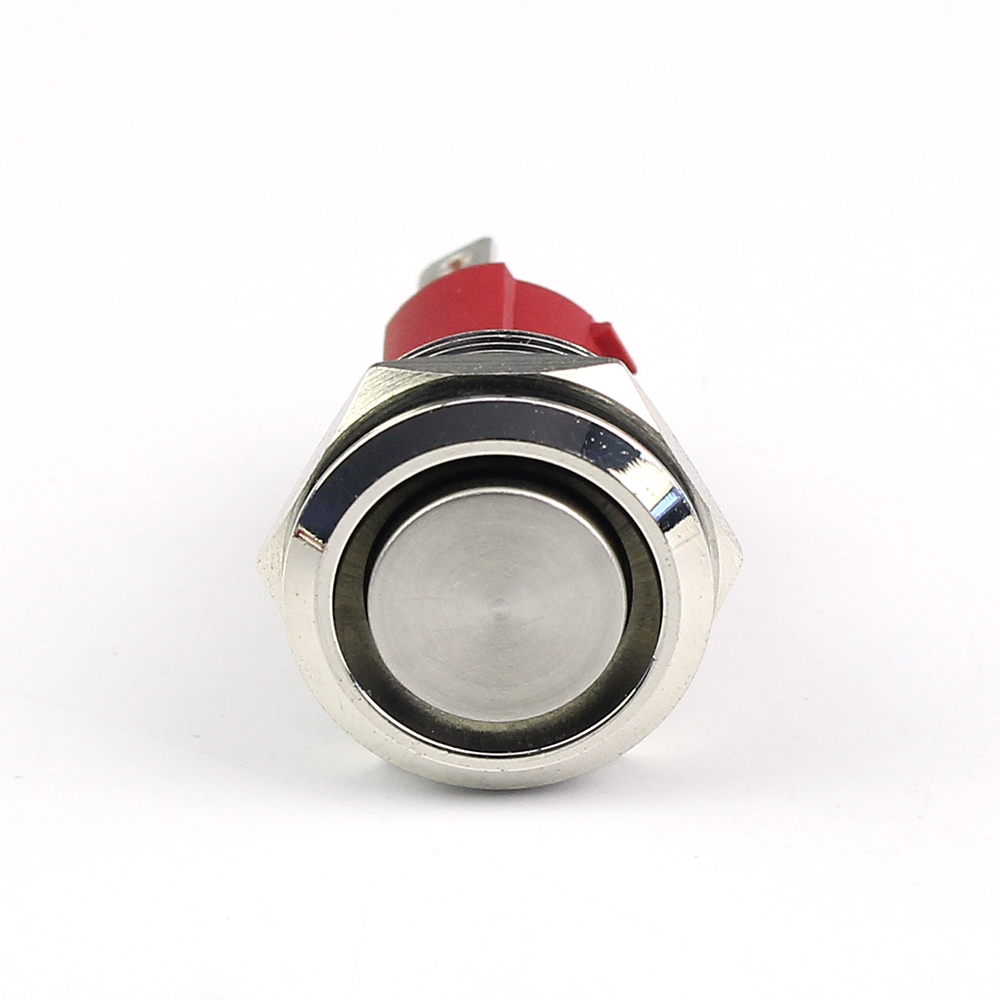

LAS3D-19F-10M 19MM 20A Push Button Switch
Part#LAS3D-19F-10M
The 20A push button switch with stainless steel, function: SPST 4pin ON/OFF momentary/latching; contact rating: 20A 12VDC, 10A 250VAC.
Different from other 12v push button switches, this push button is a 20A heavy-duty design which makes the switch more reliable.
Category :
19MM Anti-Vandal
LAS3D-19F-10M 20A Push Button Switch Details
- Easy Installation
Anti-vandal switches with screw clamp type terminal make the switch installation simpler and more convenient.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
LAS3D-19F-10M/LAS3D-19F-10L Datasheet
| Function | SPST 4PIN ON/OFF, momentary/latching two options, without light |
| Crust Material | Stainless steel/Copper plated nickel |
| Contact Rating | 10A 250V AC, 20A 12V DC |
| Contact Resistance | ≤ 30mΩ |
| Insulation Resistance | ≥ 100mΩ 500V DC |
| Dielectric Strength | 2,000V AC |
| Operating Temperature | -25℃~+55℃ |
| Electrical Life | 50,000 Cycles |
| IP Class | IP67 |
| Operating Force | 2~4N |
LAS3D-19F-10M/LAS3D-19F-10L Related Product
| LAS3D-19F-10M | Heavy duty, SPST 4PIN ON/OFF, Momentary, Without light |
| LAS3D-19F-10L | Heavy duty, SPST 4PIN ON/OFF, Latching, Without light |
| LAS3D-19F-10EM | Heavy duty, SPST 4PIN ON/OFF, Momentary, Ring illuminated |
| LAS3D-19F-10EL | Heavy duty, SPST 4PIN ON/OFF, Latching, Ring illuminated |
| LAS3D-19F-10EPM | Heavy duty, SPST 4PIN ON/OFF, Momentary, Power symbol illuminated |
| LAS3D-19F-10EPL | Heavy duty, SPST 4PIN ON/OFF, Latching, Power symbol illuminated |
Our company’s LAS3 series push button switches have passed the UL certification!
