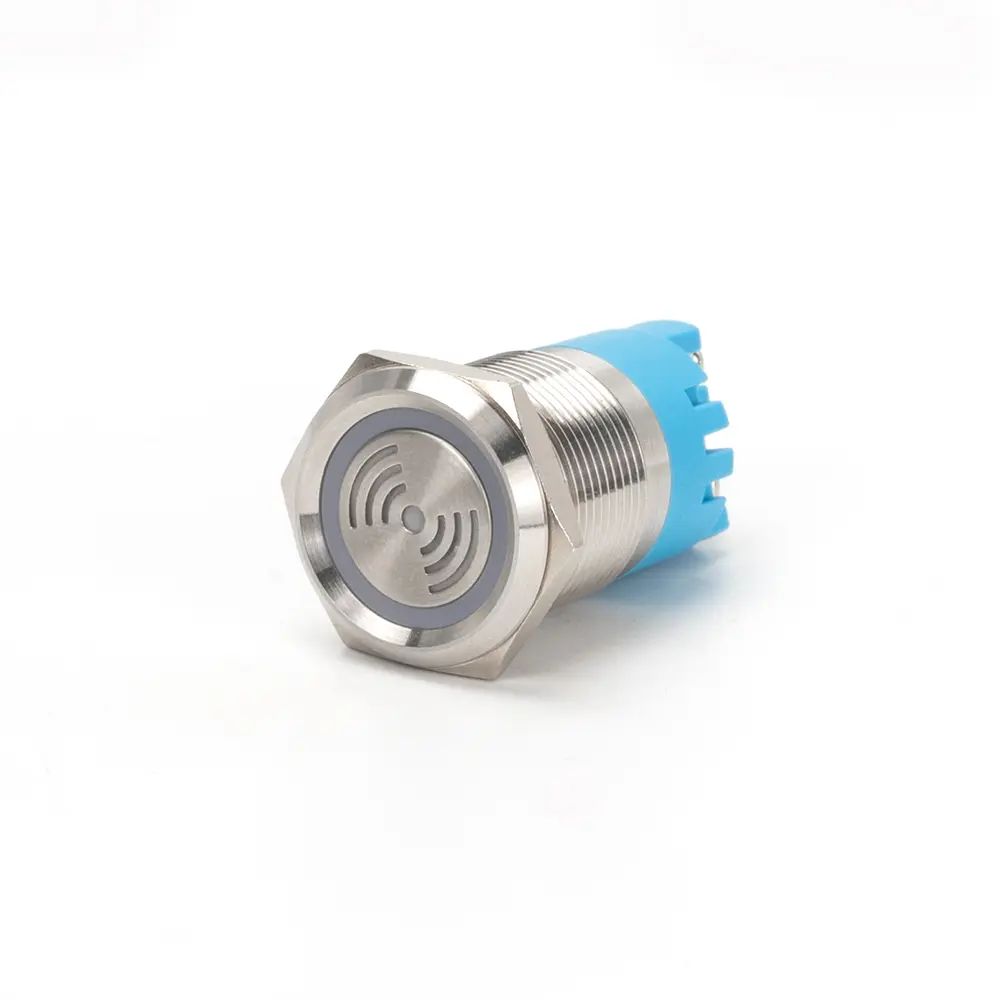

LAS1-19CS-BZ-E 19MM Metal Buzzer With LED

Part#LAS1-19CS-BZ-E

The 19mm metal Buzzer with screw terminal uses stainless steel, function: IP67, SPST, 2 pins, 1NO+1NC; contact rating: 40mA 220V.

This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.

Category :

19MM Anti-Vandal

LAS1-19CS-BZ-E 19MM Metal Buzzer With LED Details

  • Easy Installation

Anti-vandal switches with screw clamp type terminal make the installation of switch simple and convenient.

  • Visual Feedback

The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is widely used in household appliances, alarm systems of banks and public security, electronic toys, and game consoles.

LAS1-19CS-BZ-E Datasheet

Mounting Hole 19mm
Crust Material Stainless steel
Contact Rating 40mA, 220V
Phonation type Flicker buzzer
Contact Resistance ≤50 mΩ max
Insulation Resistance ≥1,000 mΩ
Dielectric Strength 2,000V AC
Operating Temperature -25℃~+55℃
IP Class IP67
LED Color Red, Green, Blue, Yellow, White

LAS1-19CS-BA-E Dimensions

LAS1-19CS-BA-E Dimensions
