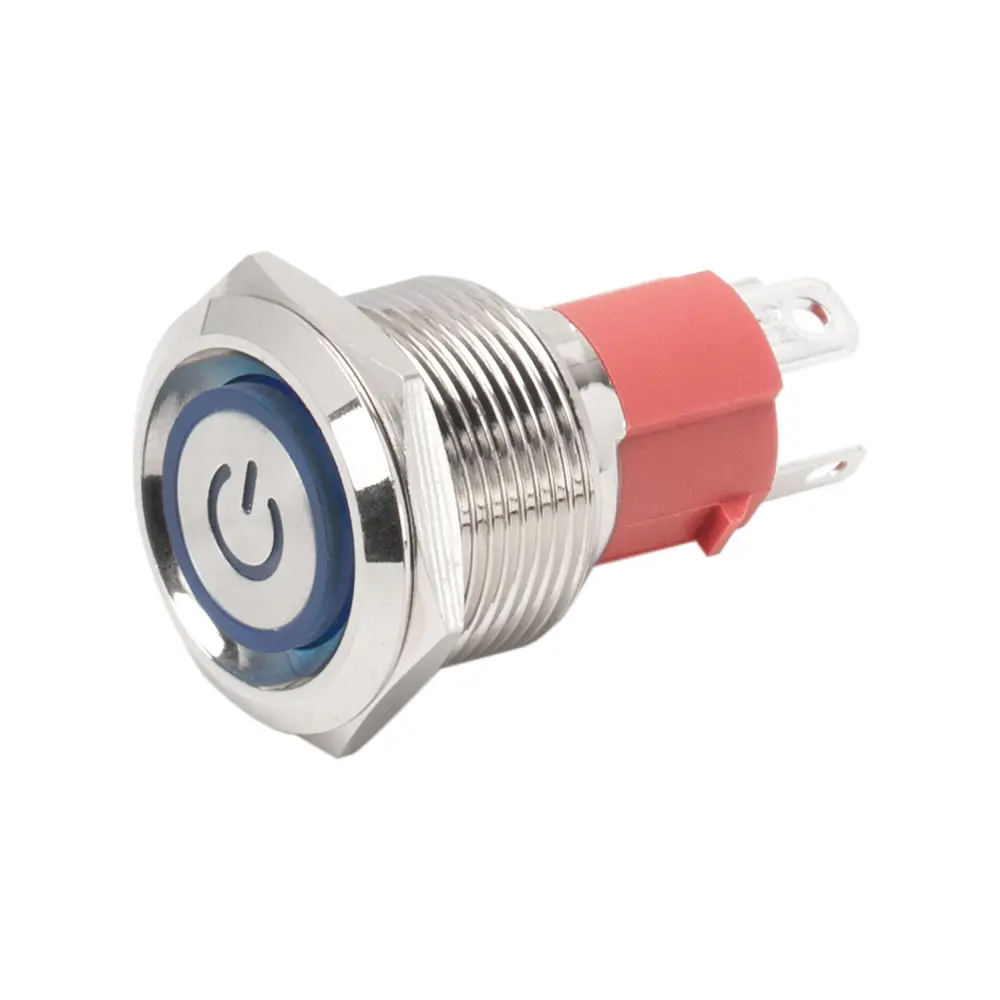

LAS3D-19F-10EPM Illuminated Power Symbol Button

Part#LAS3D-19F-10M

The power symbol button with stainless steel, function: SPST 4 pin ON/OFF momentary/latching; contact rating: 20A 12VDC; UL certification.

This waterproof push button switch is stainless steel metal made, which makes the push switch durable and sturdy.

Category :

19MM Anti-Vandal

LAS3D-19F-10EPM Illuminated Power Symbol Button Details

  • Easy Installation

Anti-vandal switches with screw clamp type terminal make the installation of switch simple and convenient.

  • Visual Feedback

The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

LAS3D-19F-10EPM/LAS3D-19F-10EPM Power Symbol Button Datasheet

Function SPST 4PIN ON/OFF, Momentary/Latching, Power symbol illuminated
Crust Material Stainless steel/Copper plated nickel
Contact Rating 10A 250V AC, 20A 12V DC
Contact Resistance ≤ 30mΩ
Insulation Resistance ≥ 100mΩ 500V DC
Dielectric Strength 2,000V AC
Operating Temperature -25℃~+55℃
Electrical Life 50,000 Cycles
IP Class IP67
Operating Force 2~4N

LAS3D-19F-10EPM/LAS3D-19F-10EPL Related Product

LAS3D-19F-10M Heavy duty, SPST 4PIN ON/OFF, Momentary, Without light
LAS3D-19F-10L Heavy duty, SPST 4PIN ON/OFF, Latching, Without light
LAS3D-19F-10EM Heavy duty, SPST 4PIN ON/OFF, Momentary, Ring illuminated
LAS3D-19F-10EL Heavy duty, SPST 4PIN ON/OFF, Latching, Ring illuminated
LAS3D-19F-10EPM Heavy duty, SPST 4PIN ON/OFF, Momentary, Power symbol illuminated
LAS3D-19F-10EPL Heavy duty, SPST 4PIN ON/OFF, Latching, Power symbol illuminated

Our company’s LAS3 series push button switches have passed the UL certification!

Still, have a question about the LAS3D-19F-10EPM/LAS3D-19F-10EPL that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
