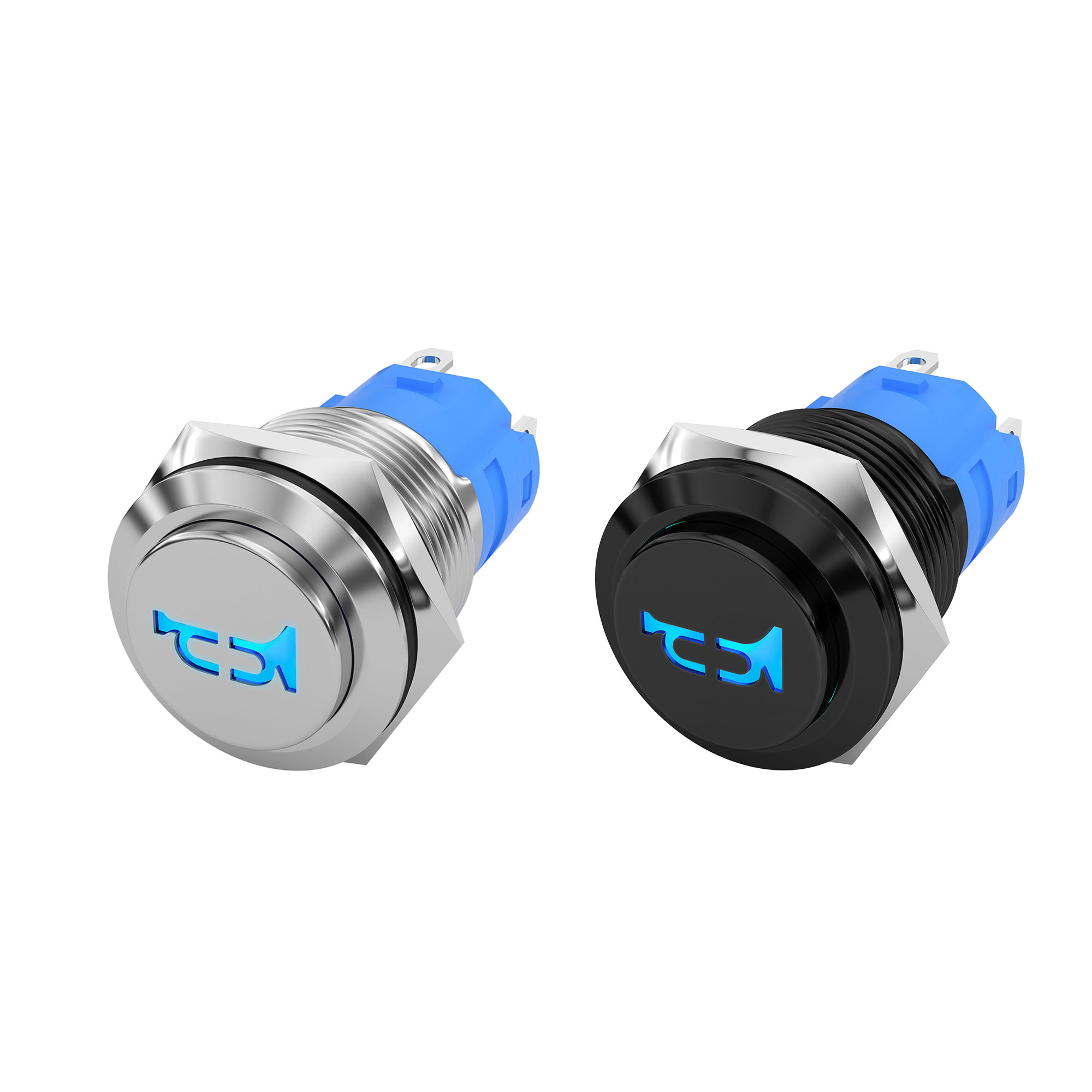

LAS3-16H-11EM-A/N-HORN 16mm High Button Momentary LED Lighted Push Button Horn Switch

Part#LAS3-16H-11EM-A/N-HORN

The LED lighted push button horn switch features an SPDT 1 NO 1 NC design, 5A 12V rating, and a 16mm mounting hole size for easy installation.

This durable stainless steel switch comes with a clip design wire socket and a waterproof marine horn button design.

LAS3-16H-11EM-A/N-HORN 16mm High Button Momentary LED Lighted Push Button Horn Switch Details

  • Enhanced Functionality

The LED Lighted Push Button Horn Switch features an SPDT 1 NO 1 NC design, allowing for a simple push and hold to activate the horn, and a quick release to stop honking, providing convenient and efficient control.

  • Durable and Reliable

With a 5A, 12V rating, this horn switch is built to withstand the rigors of regular use and is designed for longevity. The black shell with a blue speaker LED illumination enhances visibility and adds a touch of modern style.

  • Easy Installation

The mounting hole size of 16mm ensures a secure and stable fit, while the clip design of the wire socket simplifies the installation process and allows for easy removal when needed.

  • Versatile Use

This stainless steel horn switch is designed for both automotive and marine applications, making it suitable for use in cars, boats, and other vehicles where a reliable horn button switch is required.

  • Waterproof Design

With its marine horn button design, this switch is built to be waterproof and can withstand various weather conditions, ensuring reliable performance even in challenging environments.

LAS3-16H-11EM-A/N-HORN Push Button Horn Switch Datasheet

Part NO LAS3-16H-11EM-A/N-HORN

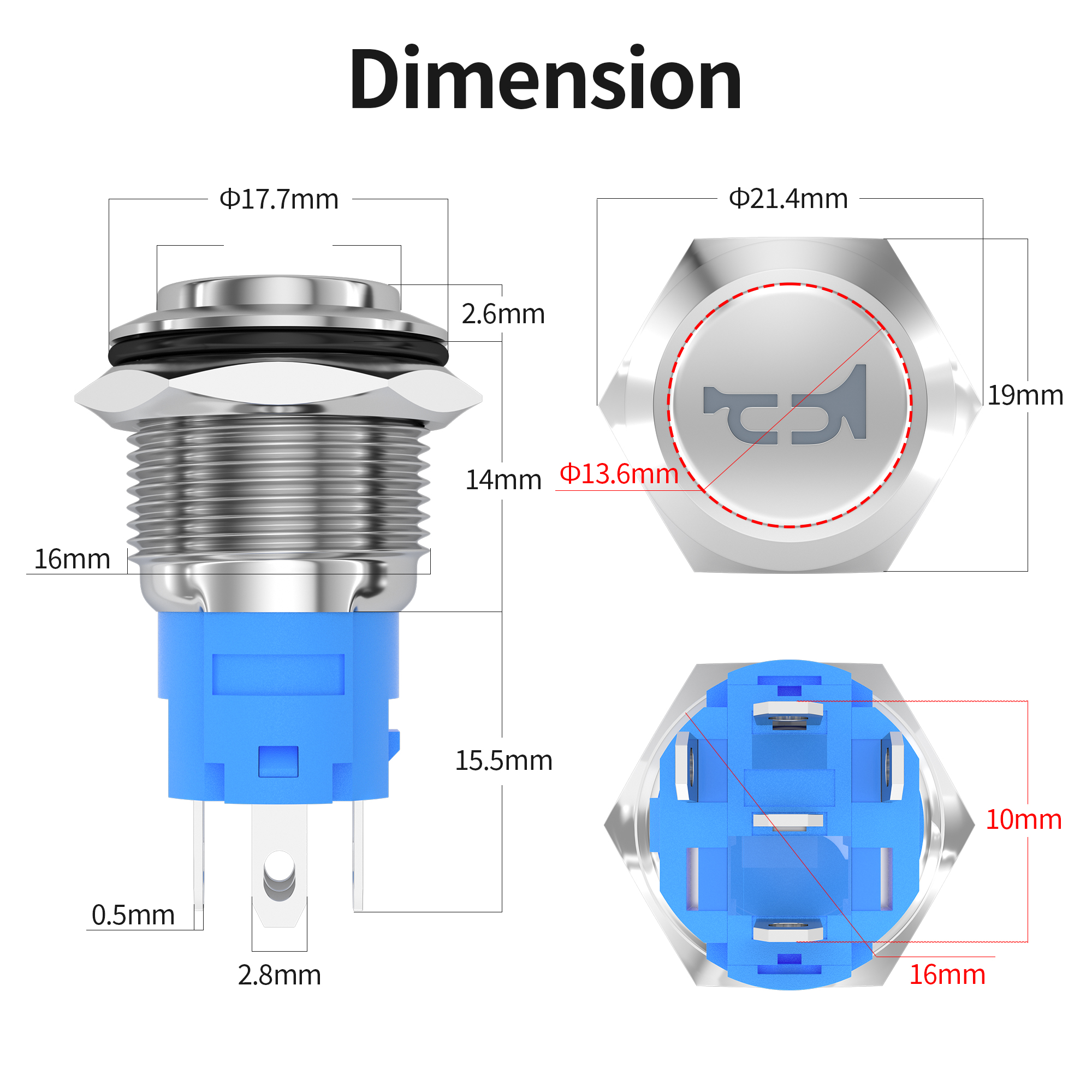

Mounting Size 16mm
Rating 5A 12VDC
Function Momentary
Contact Type 1NO1NC  SPDT
Terminal 5 Pins
Terminal Type Solder Terminal
Button Type High Button
Illuminated Type Horn LED
LED Voltage 12V
LED Color Red/Green/Yellow/Blue/White
Waterproof Degree IP65
Housing Color Black(A) / Silver(N)
Wire Length 140mm
Wire Size 20AWG

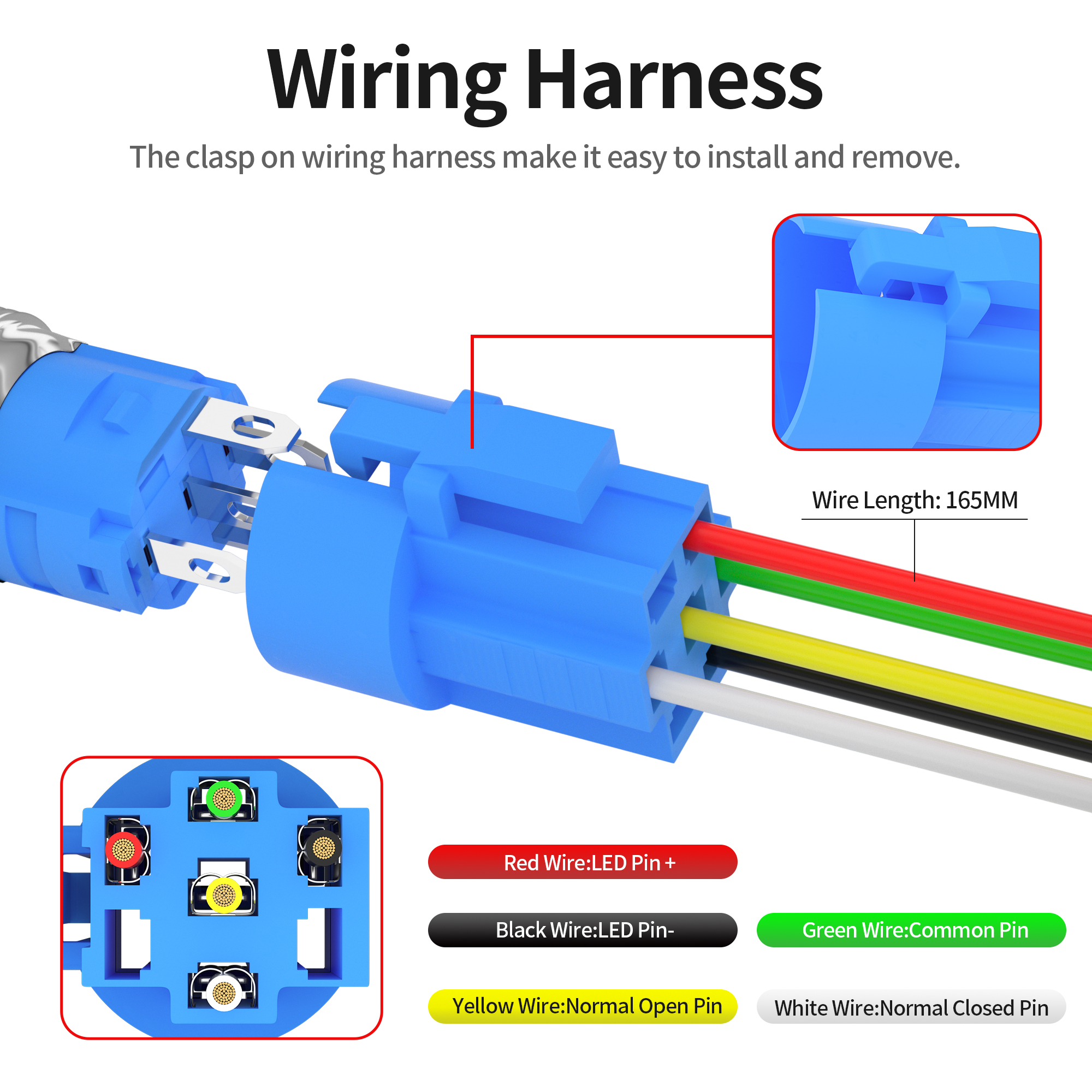

LAS3-16H-11EM-A/N-HORN Push Button Horn Switch Wiring Diagram

LAS3-16H-11EM-N-HORN Push Button Horn Switch Wiring Diagram

If you have any unanswered questions about the product or would like more information, we encourage you to reach out to us via email at sales1@chinadaier.com or through our live chat. We are here to assist you and provide the information you need.
