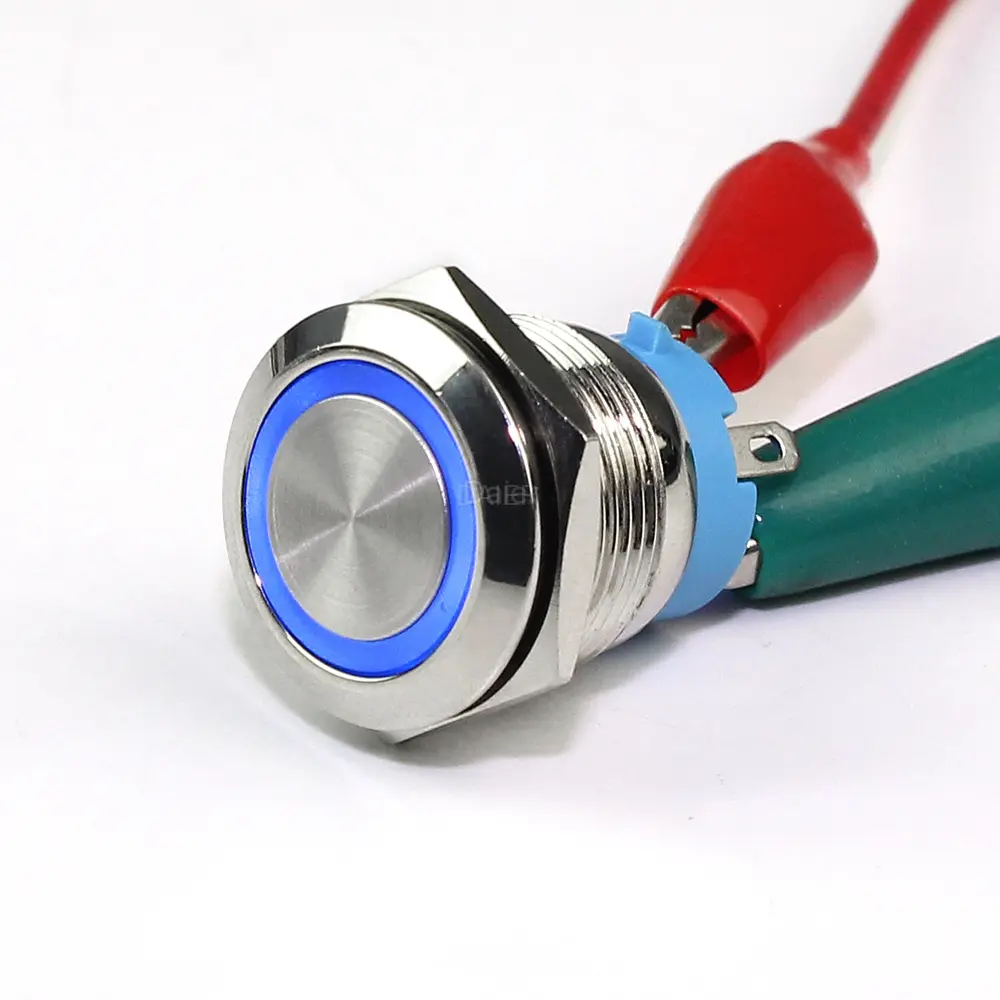

GQ19F1-10EP 19mm push button:

Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.

They are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).

It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.

It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.

For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.

These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.

We can’t talk out their advantage in a few words, but they are more and more popular in the world. We provide our product at Factory Price. Contact Directly & Get Live Quotes Now!

The GQ19F1-10EP 19mm push button related product, pls check the detailed information as below:

GQ19F1-10EPM:OFF-(ON) momentary 4PIN
GQ19F1-10EPL:OFF-ON latching 4PIN

Pls check the datasheet below:


Rating:3A 250VACContact Resistance:50mΩ max
Electrical Life:50,000 CyclesFunction:momentary or latching
Dielectric strength:2,000VAC 1 minuteOperating Temperature:-25℃~+85℃
Insulation Resistance:1,000mΩ minPanel cutout:10, 12, 16, 19, 22, 25, 28, 30, 40mm etc.
LED voltage:3V, 6V, 12V, 24V, 48V, 110V, 220VWaterproof Grade:IP65
 Contact Configuration: Single PoleOEM or ODM:Available
