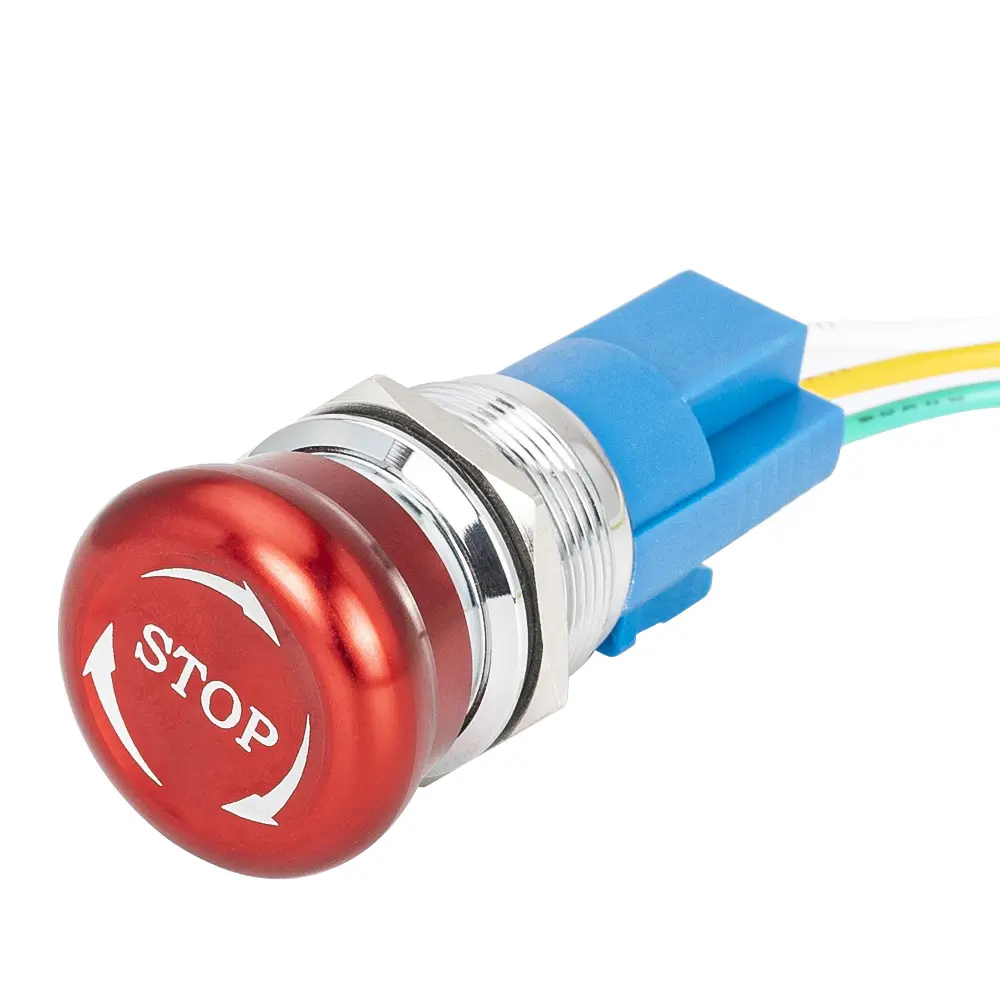

LAS1-22-11SR 22MM Metal Emergency Stop Button
Part#LAS1-22-11SR
The 22mm metal emergency stop button with stainless steel, function: 1NO, 1NC, latching; contact rating: 5A 250V AC; IP degree: IP65 IK08.
The mushroom emergency stop push button switch is structured compactly and operated quickly and gently.
LAS1-22-11SR 22MM Metal Emergency Stop Button Details
- Easy Installation
Anti-vandal switches with solder clamp-type terminals make the installation of switch simple and convenient.
- Strong Durability
Anti-vandal switches located on outdoor devices must withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is widely used to control the electromagnetic starter, contactor, relay, and other automatic control electric circuits.
LAS1-22-11SR Datasheet
| Function | 1NO1NC, Latching |
| Crust Material | Stainless steel |
| Contact Rating | 5A 250VAC |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 100mΩ 500V DC |
| Dielectric Strength | 2,000V AC 1Min |
| Operating Temperature | -25℃~+85℃ |
| Mechanical Life | ≥500,000 Cycles |
| Electrical Life | ≥50,000 Cycles |
| IP Class | IP65 IK08 |
