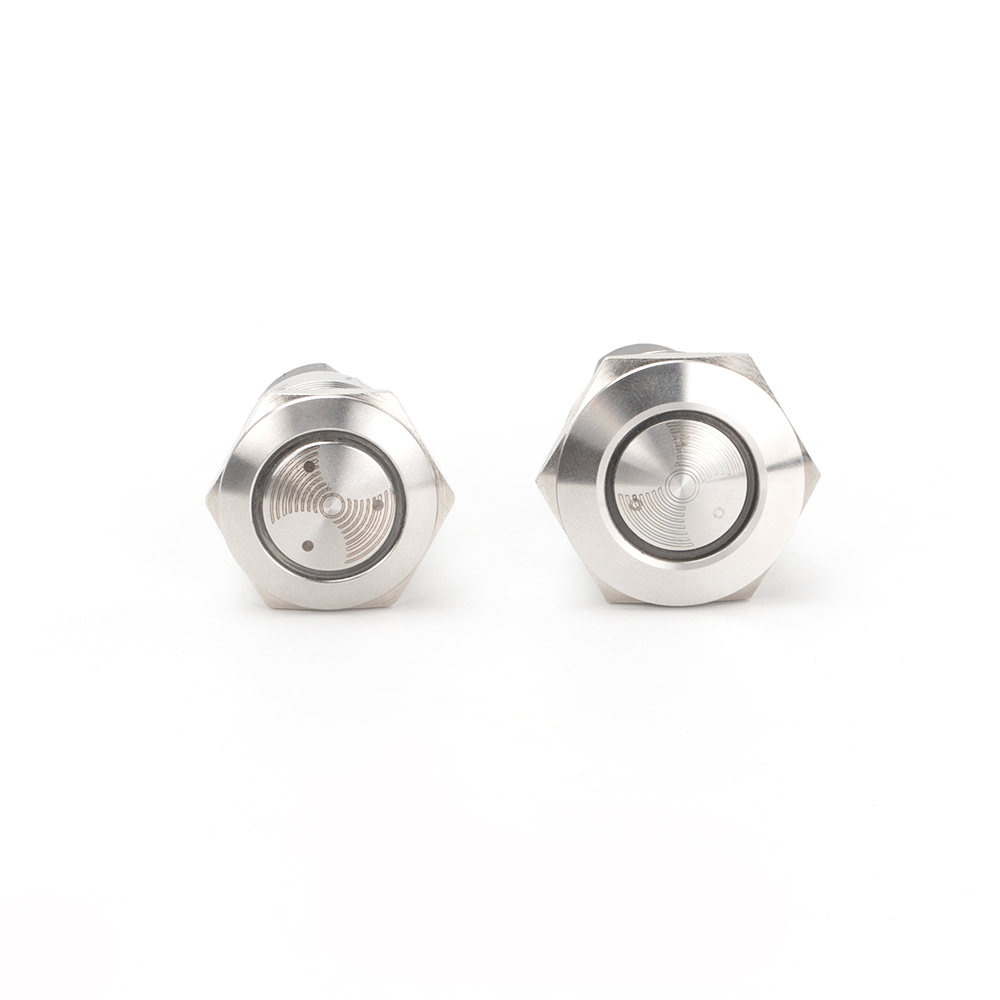

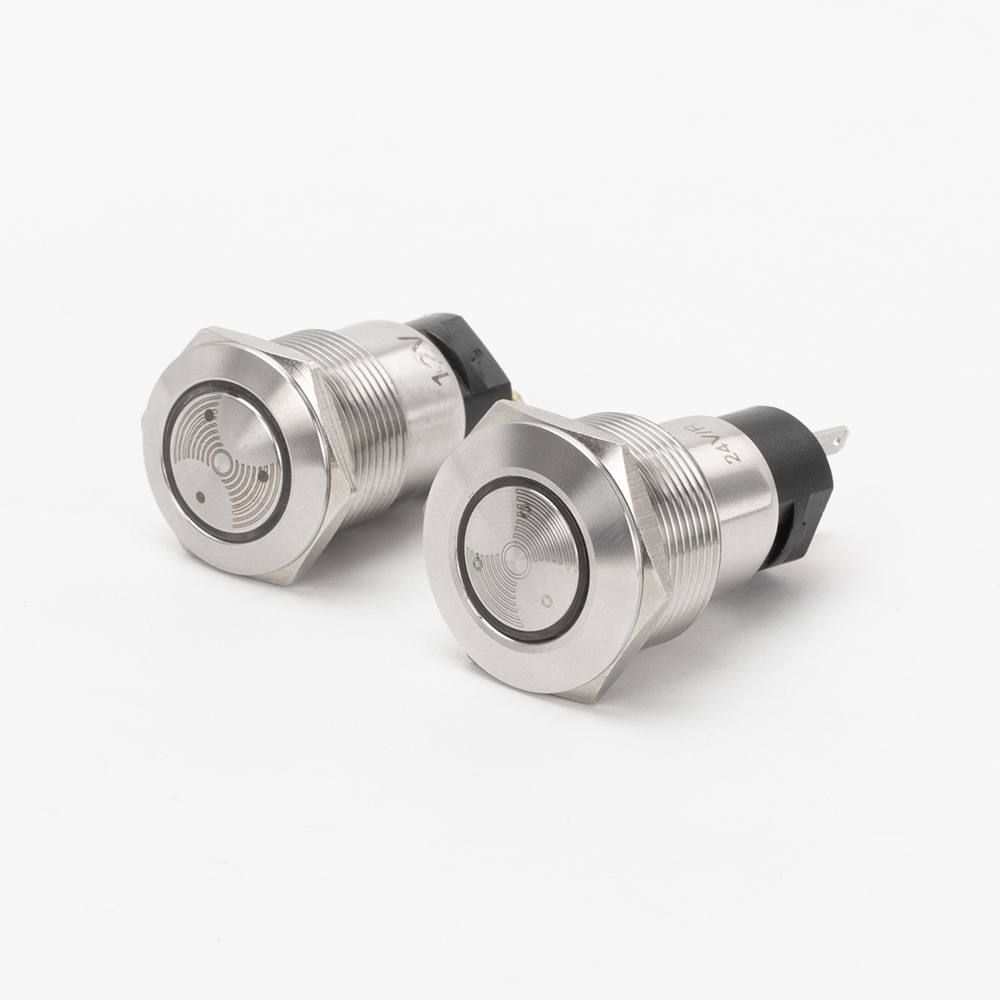

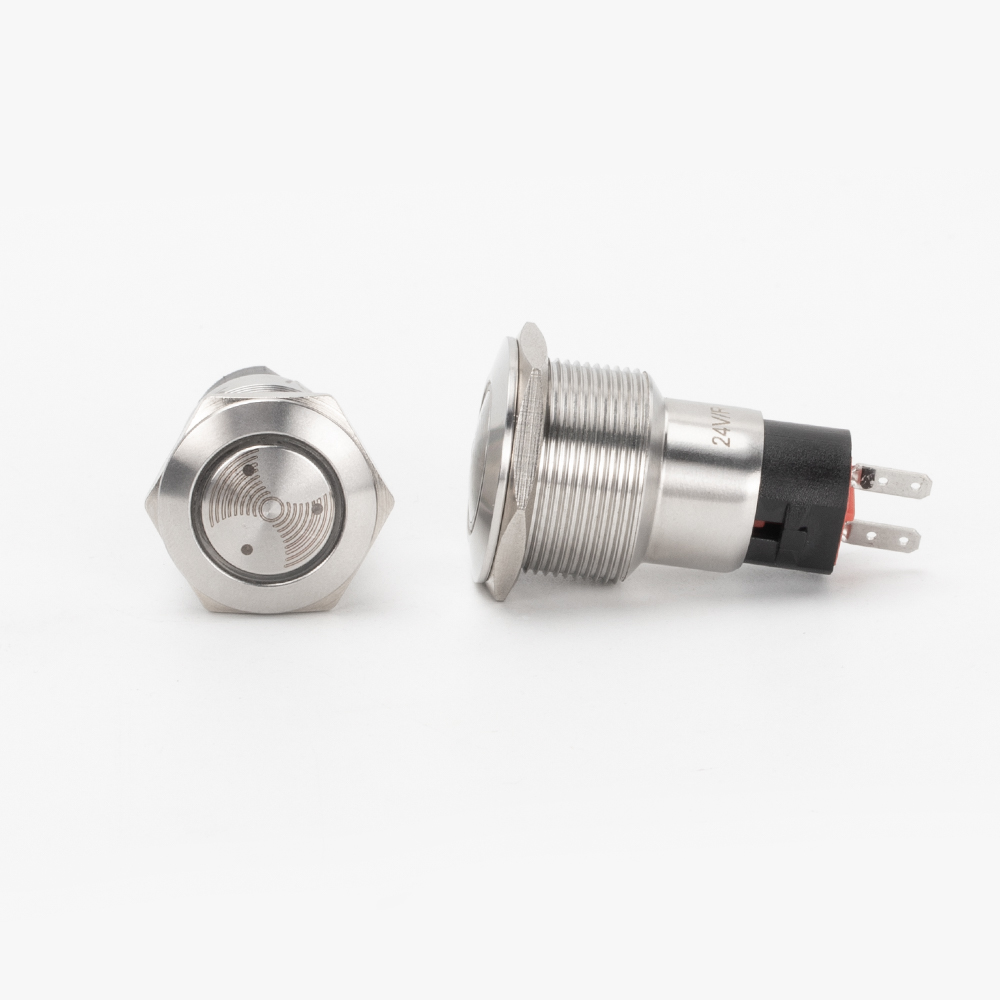

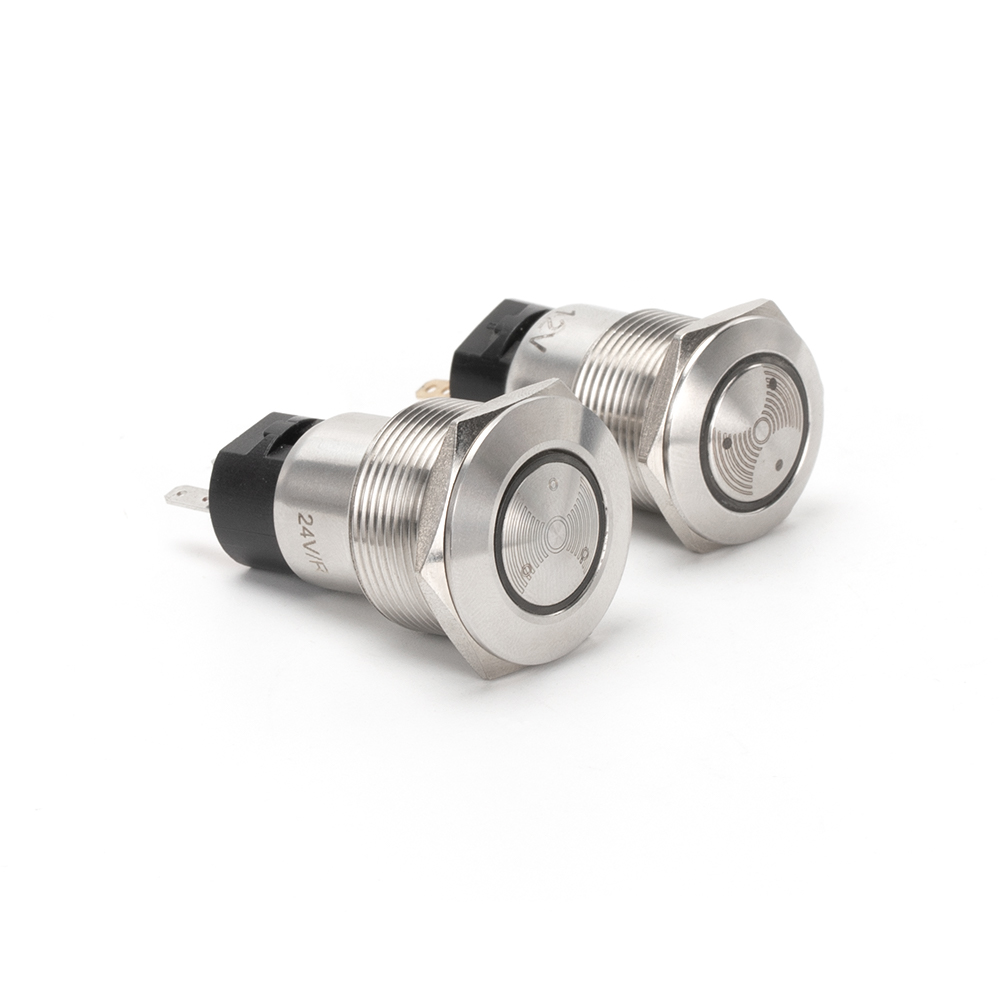

LAS1-19-BZ-E 19MM LED Metal Pulse Buzzer
Part#LAS1-19-BZ-E
The 19mm LED metal pulse buzzer with stainless steel, function: IP67, SPST, 2 pins, 1NO+1NC; contact rating: 40mA, 220V.
It is a sound-generating device that can convert an audio signal into a sound signal and is mainly used for publicity or alarm.
Category :
19MM Anti-Vandal
LAS1-19-BZ-E 19MM LED Metal Pulse Buzzer Details
- Easy Installation
Anti-vandal switches with screw clamp type terminal make the installation of switch simple and convenient.
- Visual Feedback
The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is widely used in household appliances, alarm systems of banks and public security, electronic toys, and game consoles.
LAS1-19-BZ-E Datasheet
| Mounting Hole | 19mm |
| Crust Material | Stainless steel |
| Contact Rating | 40mA, 220V |
| Phonation type | Flicker buzzer |
| Contact Resistance | ≤50 mΩ max |
| Insulation Resistance | ≥1,000 mΩ |
| Dielectric Strength | 2,000V AC |
| Operating Temperature | -25℃~+55℃ |
| IP Class | IP67 |
| LED Color | Red, Green, Blue, Yellow, White |
Still, have a question about the LAS1-19-BZ-E that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
