KFC-A06A-H

KFC-A06A-H SMD TACTILE SWITCH:

KFC-A06A-H is an on/off smd tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.
It was used for circuit board, there are many different kinds of height for the switch knob, the standard height range is 4.3mm to 23mm.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.

Pls check the datasheet below:

Type:Snap-inOperating force:180/250±30gf
Operating Direction:Top PushTravel:0.25mm
Operating Life:Over 80,000 cyclesInitial contact resistance:100mΩ max.
Stem color:BlackOperating Temperature:-25℃~+105℃
Stem height:H=4.3-23mmSeries type:SMD type
Rating (max.):50mA 12V DCRating (min.):10µA 1V DC
SPQ:1,000pcsOEM or ODM:Available

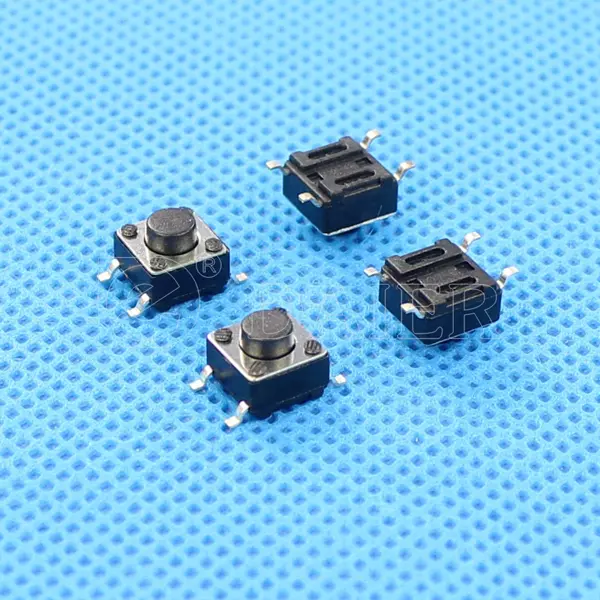

KFC-A06A-H smd tactile switch (3)
