KFC-004A

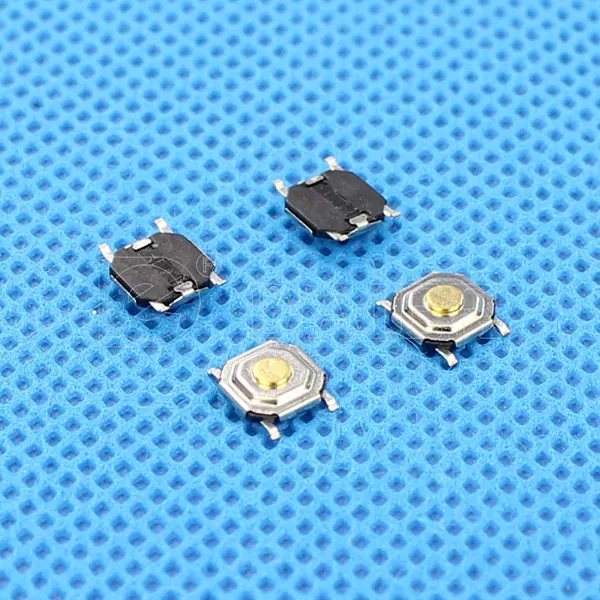

KFC-004A Mini Push Button:

KFC-004A is an on/off electronic mini push button that is only on when the button is pressed or if there is a definitive change in pressure.
It was used for circuit board, the height for the switch is 1.5mm.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.

Pls check the datasheet below:

Type: Snap-in Operating force: 70/180±10gf
Operating Direction: Top Push Travel: 0.25mm
Electrically Life: Over 50,000 cycles Initial contact resistance: 100mΩ max.
Stem color: Silver Operating Temperature: -25℃~+70℃
Stem height: H=1.5mm Series type: SMD type
Rating (max.): 50mA 12V DC Rating (min.): 10µA 1V DC
SPQ: 1,000pcs OEM or ODM: Available
