TST3425

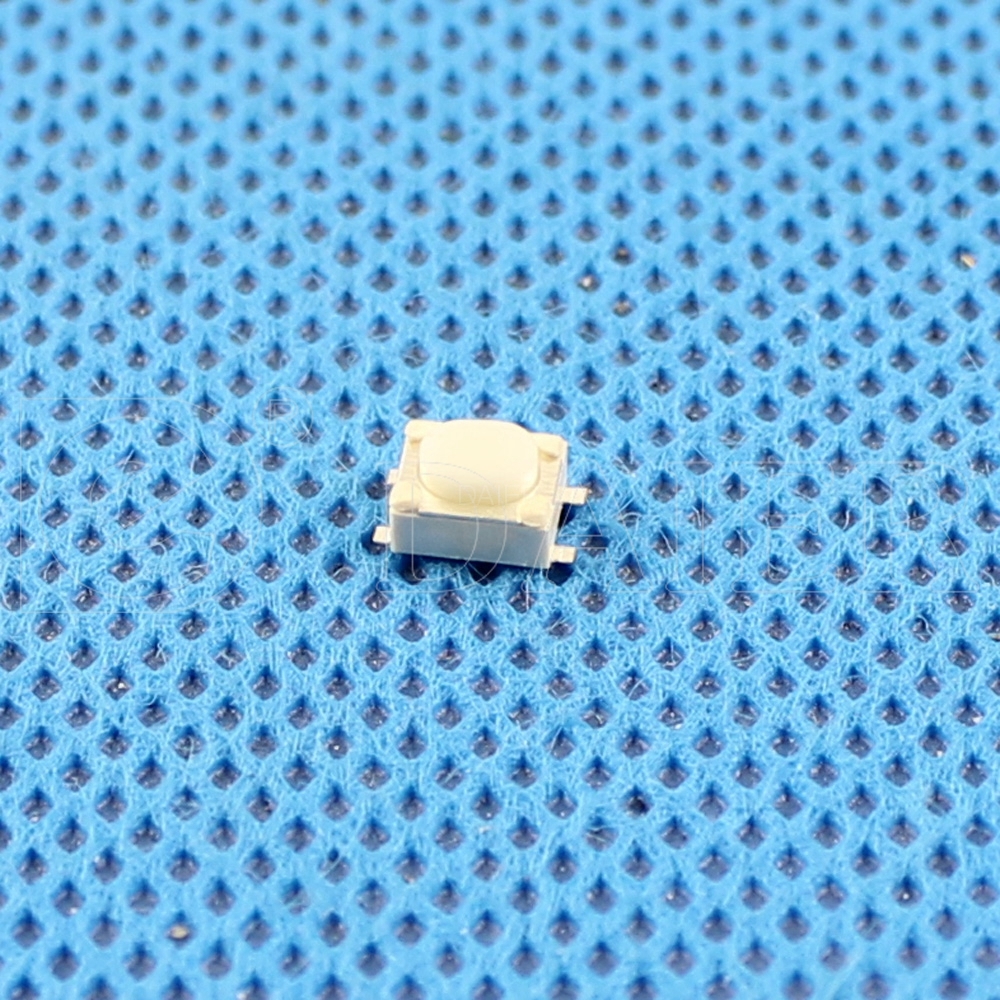

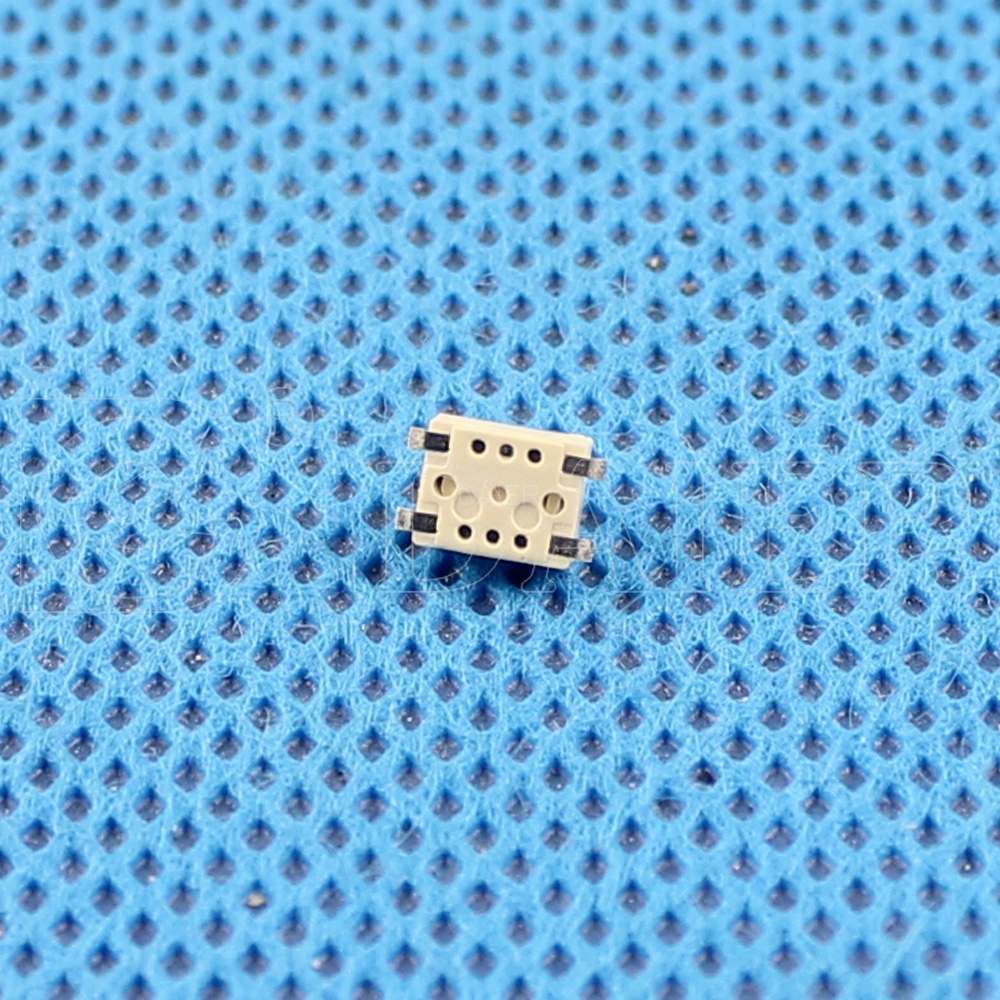

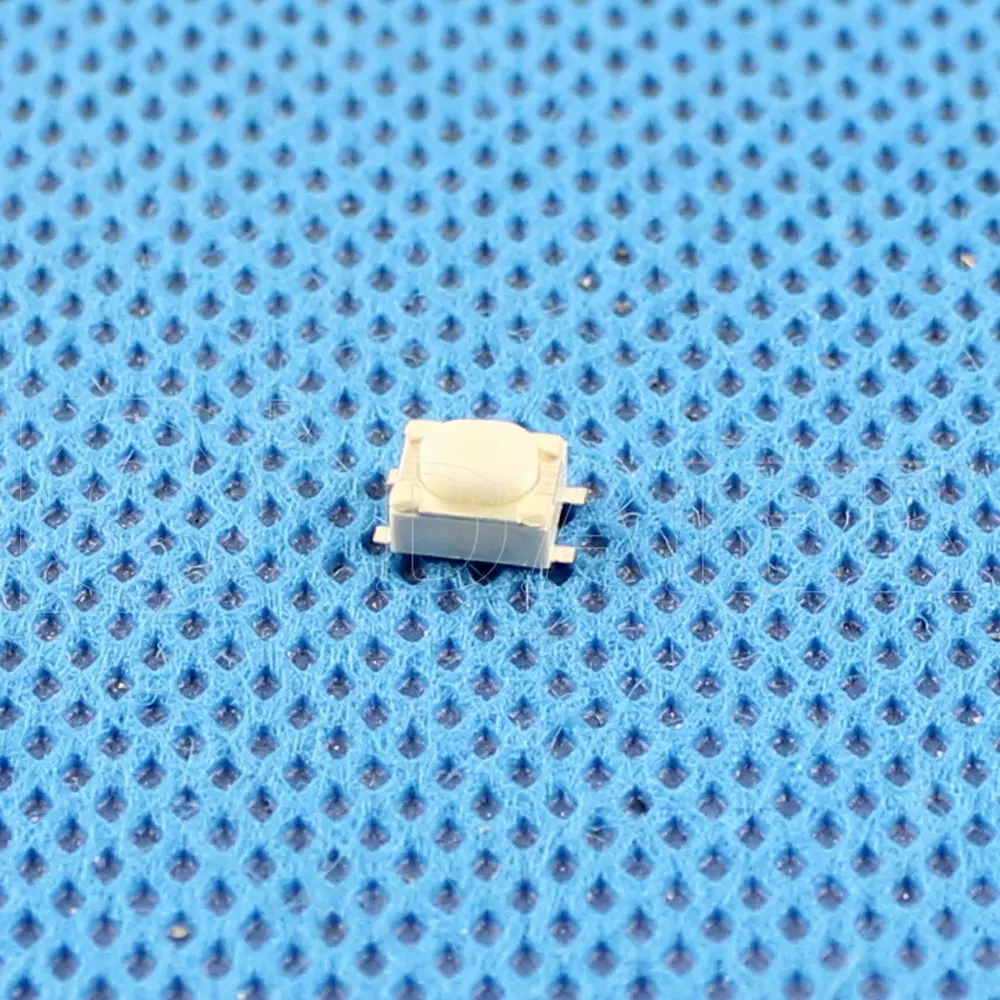

TST3425 Small Tactile Switch:

TST3425 is an on/off electronic small tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.
It was used for circuit board, the height for the switch is 2.5mm.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.

Pls check the datasheet below:

Type:Snap-inOperating force:180/250/400gf
Operating Direction:Top PushTravel:0.25mm
Operating Life:Over 100,000 cyclesInitial contact resistance:100mΩ max.
Stem color:SilverOperating Temperature:-30℃~+85℃
Stem height:H=2.5mmSeries type:SMD type
Rating (max.):50mA 12V DCRating (min.):10µA 1V DC
SPQ:1,000pcsTotal Length:4.6mm/5,1mm

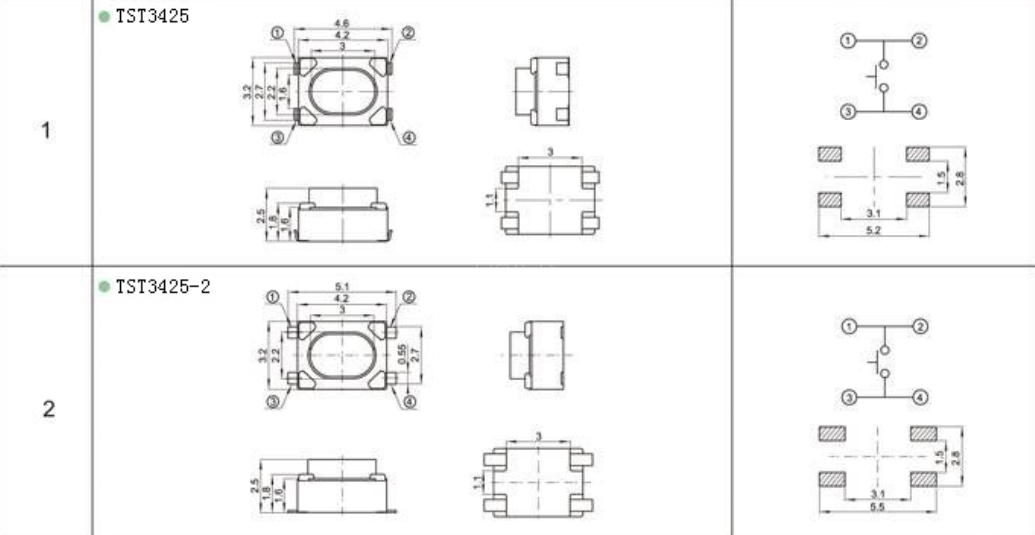

TST3425 small tactile switch (1)
