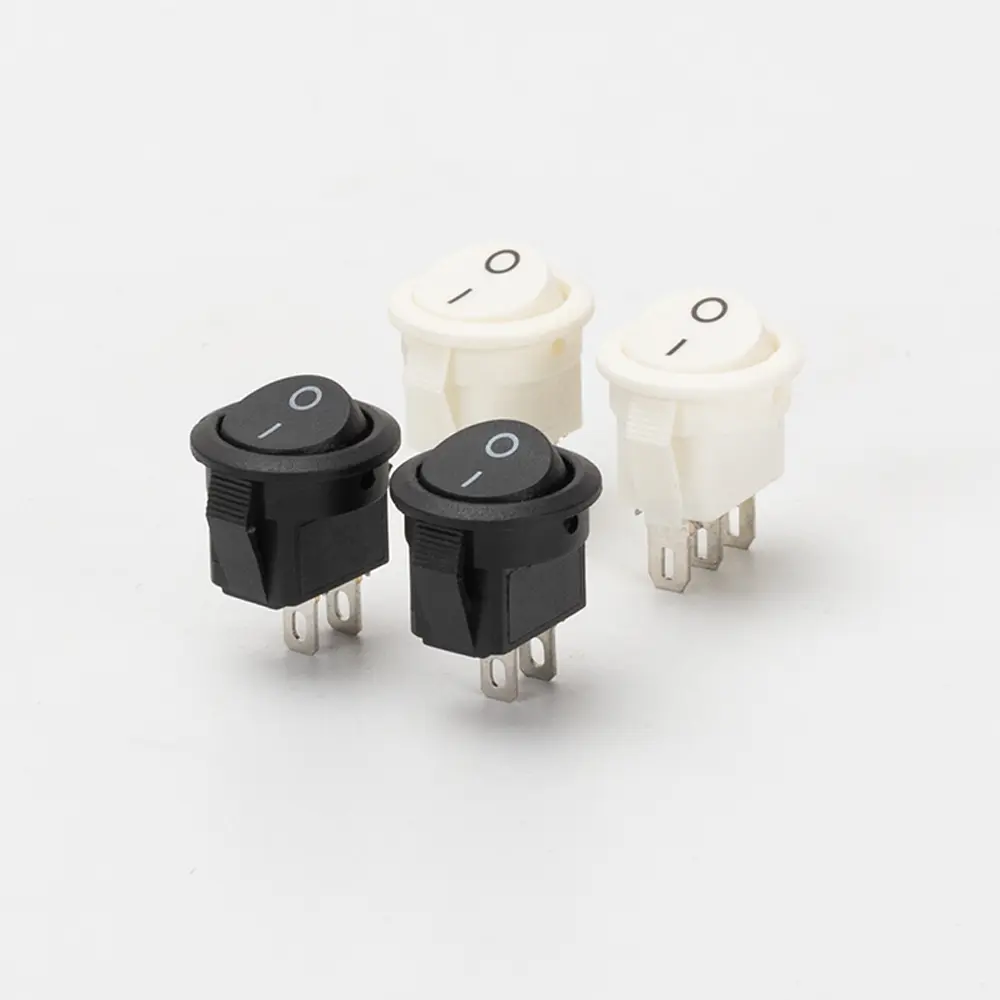

KCD5-2-101 Round White Rocker Switch
KCD5-2-101 Round White Rocker Switch with ON-OFF function
Category :
Sub-Mini Rocker Switch
KCD5-2-101 Round White Rocker Switch
Daier KCD5-2-101 on off sub-miniatur rocker switch offer a low switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
If you need, you can contact us
KCD5-2-101 Round White Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass | Button color: | Black and white and transparent color |
| Rating: | 6A 125VAC/3A 250VAC | Housing color: | Standard black,white and transparent color is avaliable |
| Contact Configuration: | SPST | Switch Operation: | ON-OFF |
| Contact Resistance: | 50mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
