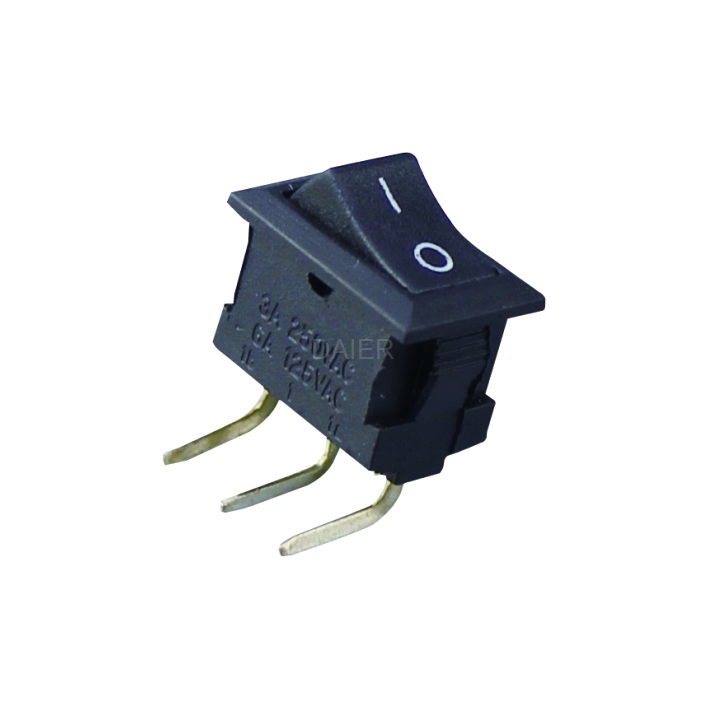

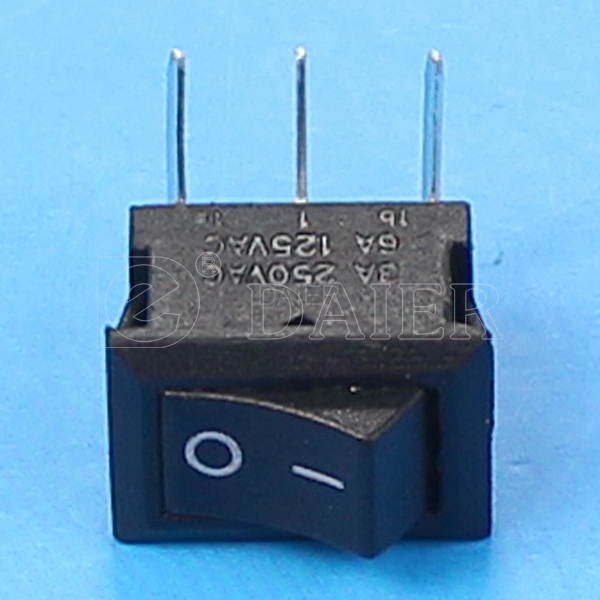

KCD5-102L Small Single Pole Rocker Switch

KCD5-102L Small Single Pole Rocker Switch for sale, with right angle terminal

KCD5-102L Small Single Pole Rocker Switch

Daier KCD5-102L on off  sub-miniatur rocker switch offer a low switching current in a compact design.

We still have KCD5-101L on on rocker switch with same shape but different function.

It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.

They have high quality for long life at heavy loads and industry-standard mounting dimensions.

This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on

If you need, you can contact us

KCD5-102L Small Single Pole Rocker Switch related product

KCD5-101L 2P,ON-OFF
KCD5-102L 3P,ON-ON

KCD5-102L Small Single Pole Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66

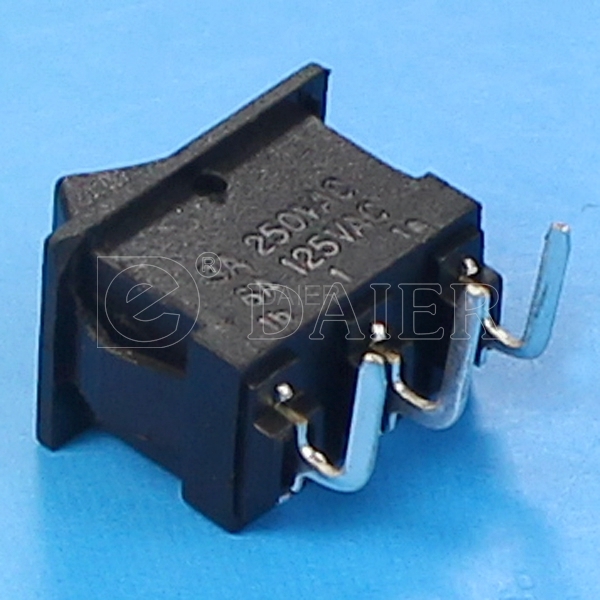

Terminal Right bent pin Button color: Black
Rating: 6A 125VAC/3A 250VAC Housing color: Standard black
Contact Configuration: SPDT Switch Operation: ON-OFF-ON
Contact Resistance: 50mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available

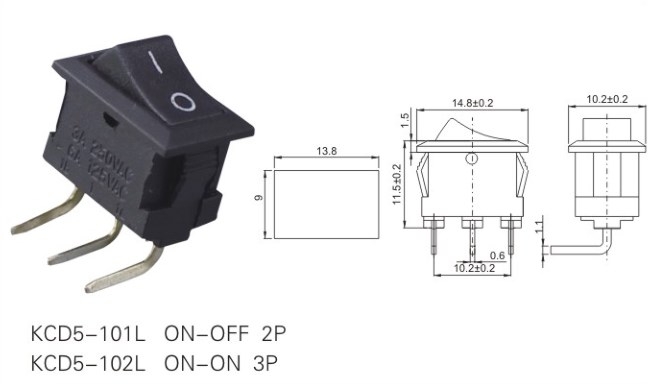

KCD5-102L Small Single Pole Rocker Switch datasheet
