KCD5-101 Small Black ON OFF Rocker Switch

KCD5-101 Small Black ON OFF Rocker Switch

KCD5-101 Small Black ON OFF Rocker Switch

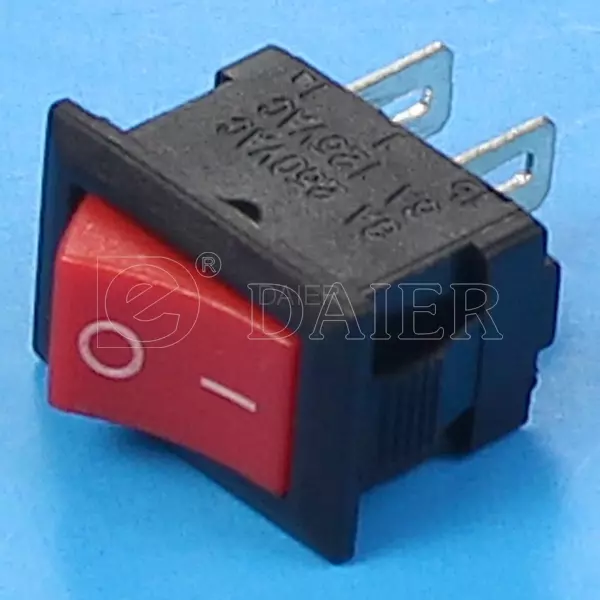

Daier KCD5-101 miniature rocker switch offer a low switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
High quality mini 2 position on/off rocker switch perfect for when space is limited or the switch needs to be hidden. The switches are ideal for many applications including use with vehicles and for hobbyists.Specifications,On/Off 2 position rocker switch
if you have the quantity,you can contact us.
Important! You must remember that before you attempt to fit, replace, or remove any of the parts on an electric lamp or fixture you must always disconnect or unplug the lamp or fixture from any source of electricity before you begin. Simply turning the lamp “off” will not protect you from an electrical shock.
If you are not sure how to safely disconnect your lamp or fixture from its electrical source, you should contact a licensed electrician or your local power company for further instructions

KCD5-101 Small Black ON OFF Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal Brass Button color: Black, Red, White and so on
Rating: 6A 125VAC/3A 250VAC Housing color: Standard black, other colors also available
Contact Configuration: SPST Switch Operation: ON-OFF
Contact Resistance: 50mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
