KCD3-101N Multi-colored 20A 125VAC / 15A 250VAC SPST ON-OFF Illuminated Rocker Switch 12V
Part#KCD3-101N
This illuminated rocker switch 12V is rated at 20A 125VAC/15A 250VAC with SPST ON-OFF and is available in a variety of colors for the housing (black, white) and illuminated indicator (Red, Green, Yellow, Blue).
The multi-colored ON-OFF rocker switch boasts a durable nylon 66 housing, a long lifespan, and is CE, CQC, and SGS certified for reliability and safety.
Category :
Medium Single Pole Rocker Switch
KCD3-101N 20A 125VAC / 15A 250VAC SPST ON-OFF Multi-colored Illuminated Rocker Switch 12V Features
- High-Performance & Compact Design
This medium-sized illuminated rocker switch delivers high switching current capacity within a compact and space-saving design. This snap-in type rocker switch boasts a durable nylon 66 housing and exceptional mechanical life, ensuring reliable performance in demanding applications.
- Quality and Durability
Engineered with high-quality materials and construction, this heavy duty rocker switch guarantees a long lifespan, even under heavy loads. The durable nylon 66 housing contributes to its robust design, while the use of industry-standard mounting dimensions ensures seamless integration into various equipment and devices.
- Illuminated Indicator for Enhanced Visibility
This on-off rocker switch features a clear illuminated indicator to provide visual confirmation of the ON/OFF status, improving usability and safety in various environments. Choose from a variety of colors like red, green, yellow, and blue to match your project’s design.
- Complete Functionality and Customization
This series of rocker switches offers complete functionality with an ON-OFF switching configuration. We also provide professional design services to meet your unique customization needs, allowing you to tailor the switch to your specific requirements.
- Versatile Applications
The multi-colored illuminated rocker switch is suitable for a wide range of applications, including water dispensers, extension sockets, power tools, toys, automobiles, communication devices, digital products, and more. It’s ideal for use in various industries such as consumer electronics, automotive, and industrial equipment.

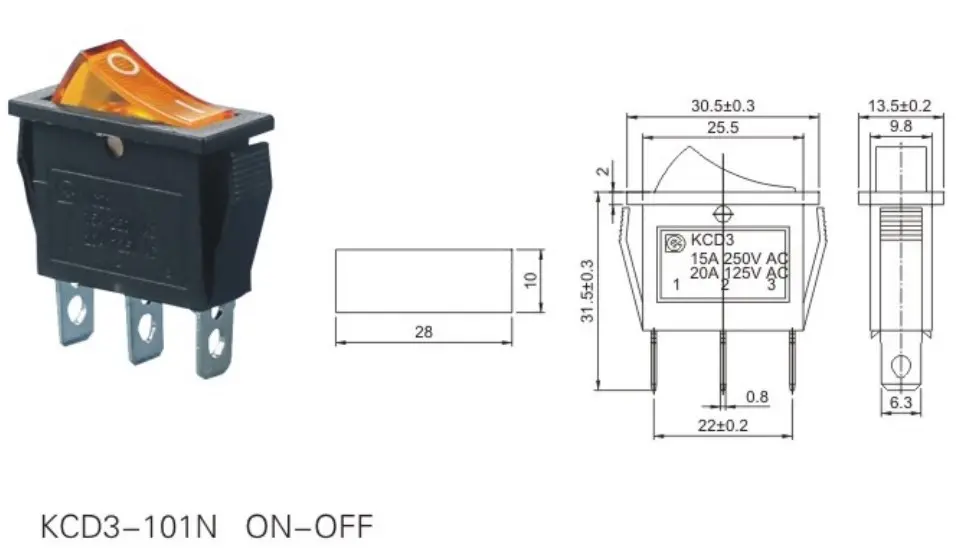

KCD3-101N Illuminated Rocker Switch 12V Datasheet
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Red and green and yellow and blue |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black or white is available |
| Contact & Function: | SPST,ON-OFF | Lamp Voltage: | 220V/12V/24V |
| Contact Resistance: | ≤ 50 mΩ | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500V AC/5S | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
