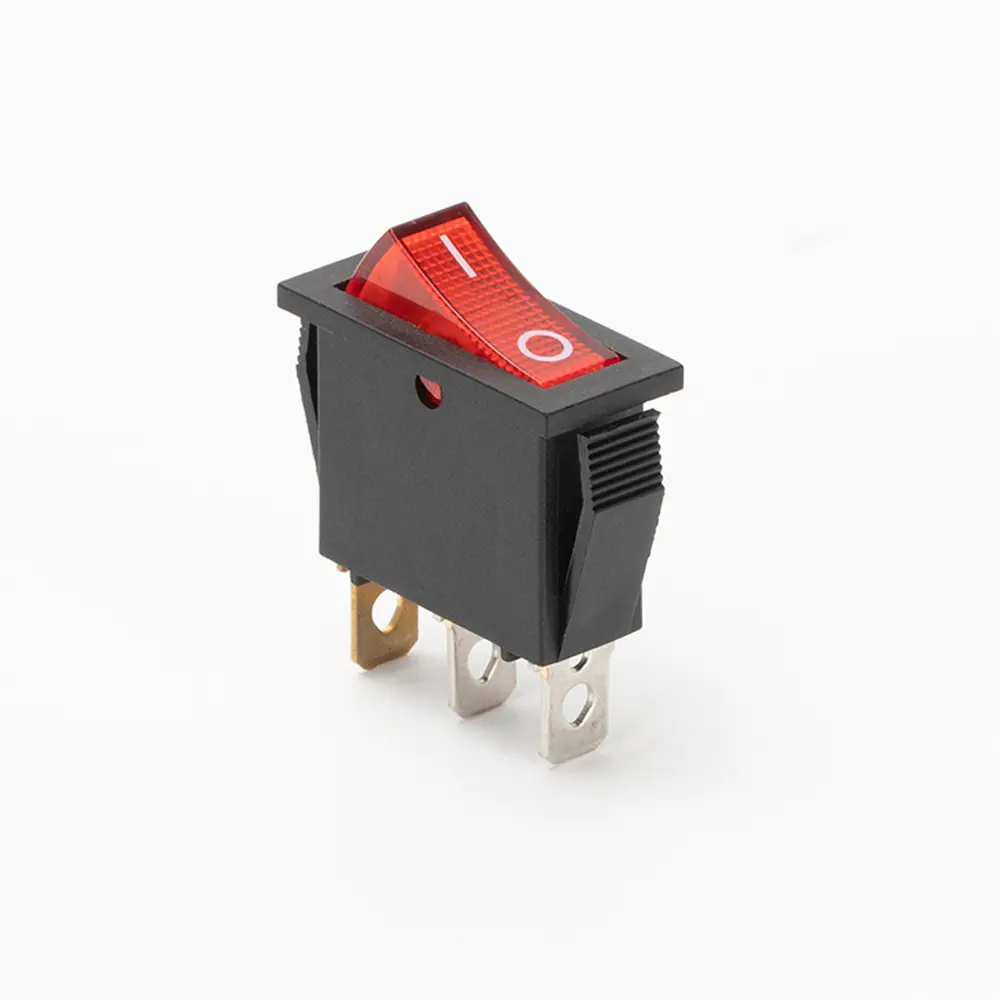

KCD3-101 16 Amp Rocker Switch

KCD3-101 16 Amp Rocker Switch

KCD3-101 16 Amp Rocker Switch

Daier KCD3-101 on off middle size rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Banking on the skills of our qualified team of professionals, we are instrumental in offering the supreme quality range of 16 Amp Rocker Switch.
If you need other quantity , please contact us and I will check and reply to you.

KCD3-101 16 Amp Rocker Switch related product,pls check the detailed information as below

KCD3-101 It is 2P,ON-OFF rocker switch without lamp
KCD3-111 It is 2P,OFF-momentary ON rocker switch without lamp

KCD3-101 16 Amp Rocker Switch datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Black and red and white color,transparent color
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black,white
Contact Configuration: SPST Switch Operation: ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD3-101 16 Amp Rocker Switch detailed information as below
