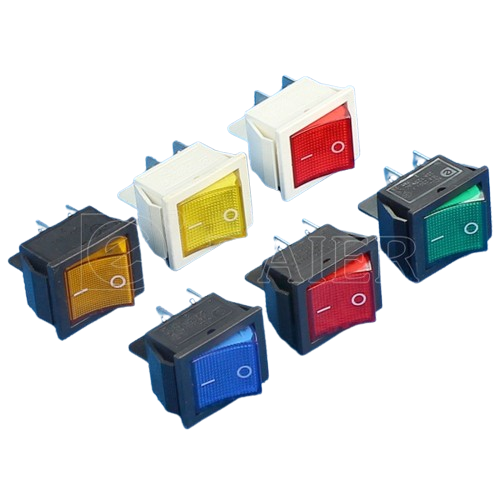

KCD2-201N Customizable ON-OFF DPST 20A Illuminated Rocker Switch
Part#KCD2-201N
This snap-in mounted 20A 125VAC/15A 250VAC illuminated rocker switch features a DPST ON-OFF configuration, and illuminated indicators with a choice of colors.
This 20A switch offers a compact design, clear illumination, and a range of color and voltage options, making it ideal for various applications.
Category :
Medium Double Pole Rocker Switch
KCD2-201N ON-OFF DPST 20A Illuminated Rocker Switch Features
- Compact and Durable Design
The 20A illuminated rocker switch offers a high-performance, compact design, ideal for various applications. This snap-in mounted switch features a durable nylon 66 housing and robust construction, ensuring a long lifespan even under heavy loads. It adheres to industry-standard mounting dimensions for easy integration into your equipment.
- Versatile Options for Diverse Needs
Choose from a variety of colors (red, yellow, blue, and green) and lamp voltages (12V, 24V, 110V, and 220V) to meet your specific design requirements and application needs. This switch boasts a 20A 125VAC/15A 250VAC rating, ensuring reliable performance for various electrical devices.
- Reliable Performance with Clear Illumination
Featuring a clear illuminated indicator, this switch provides easy visual confirmation of the ON/OFF status, enhancing user experience and safety. The switch operation is DPST (double pole single throw), offering a simple ON-OFF function.
- Quality Assurance and Customization
This 20A rocker switch is rigorously tested and certified by CE, CQC, TUV, and SGS, guaranteeing quality, reliability, and compliance with industry standards. We also offer OEM and ODM services, allowing you to customize the switch to meet your specific specifications and branding requirements.
- Ideal for High-Volume Projects
The illuminated rocker switch is a cost-effective solution for high-volume projects, providing a durable, reliable, and customizable switch for a variety of applications in industries such as consumer electronics, automotive, industrial equipment, and more.
KCD2-201N 20A Illuminated Rocker Switch Datasheet Below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Standard red,green,yellow and blue is avaliable |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black,white is avaliable |
| Contact & Operation: | DPST,ON-OFF | Lamp Voltage: | 220V/120V/12V/24V |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
