KCD1-8-201 DPST Round Rocker Switch

KCD1-8-201 DPST Round Rocker Switch

KCD1-8-201 DPST Round Rocker Switch

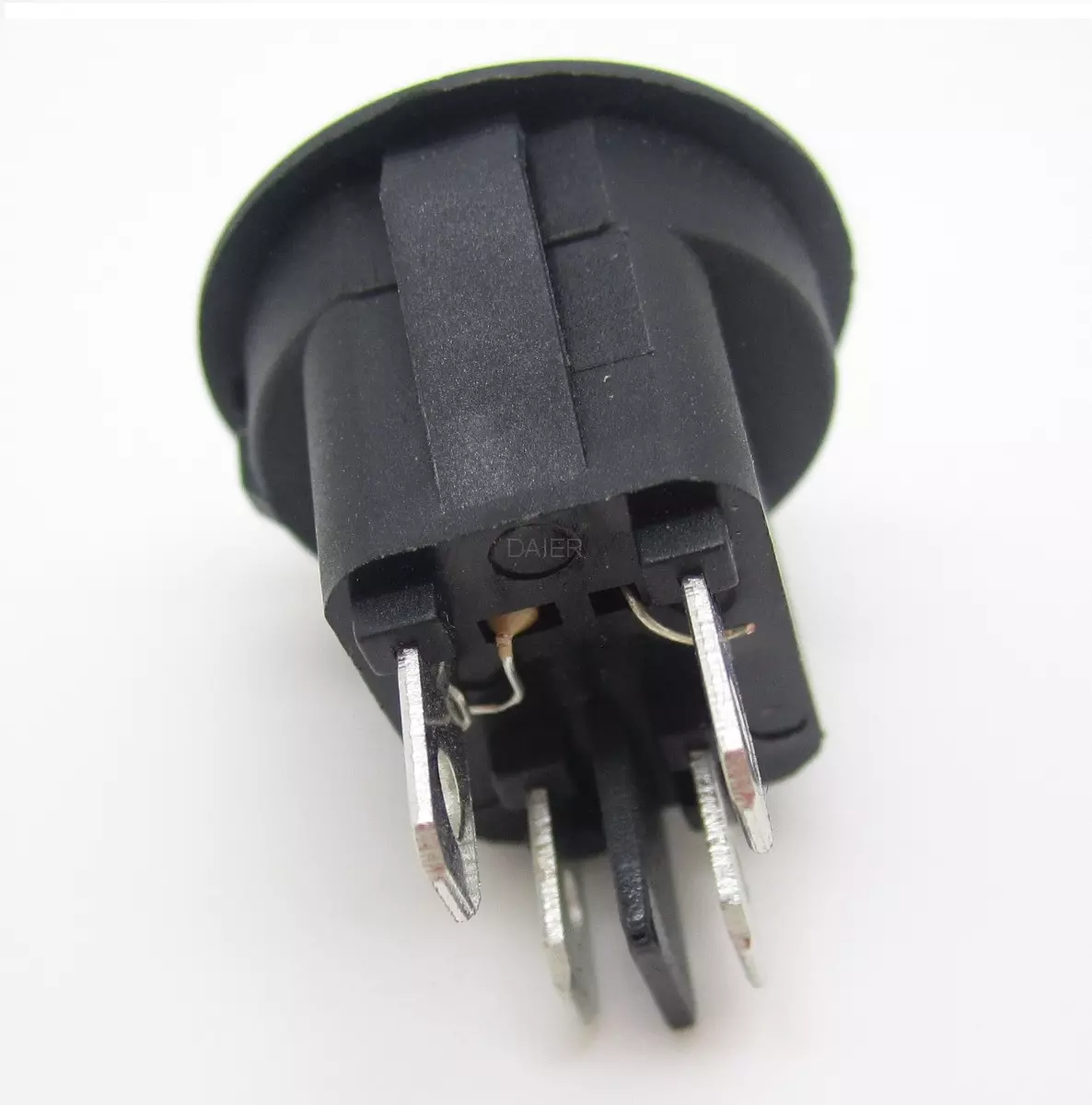

Daier KCD1-8-201 on off miniature round r11-8 rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.If you want to know more information , please contact us, I will check and reply to you

KCD1-8-201 DPST Round Rocker Switch related product,pls check the detailed inforamtion as below

KCD1-8-201 It is 4P,ON-OFF rocker switch without lamp
KCD1-8-201N It is 4P,ON-OFF rocker switch with lamp

KCD1-8-201 DPST Round Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Black and transparent
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Contact Configuration: DPST Switch Operation: ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-8-201 DPST Round Rocker Switch datasheet
