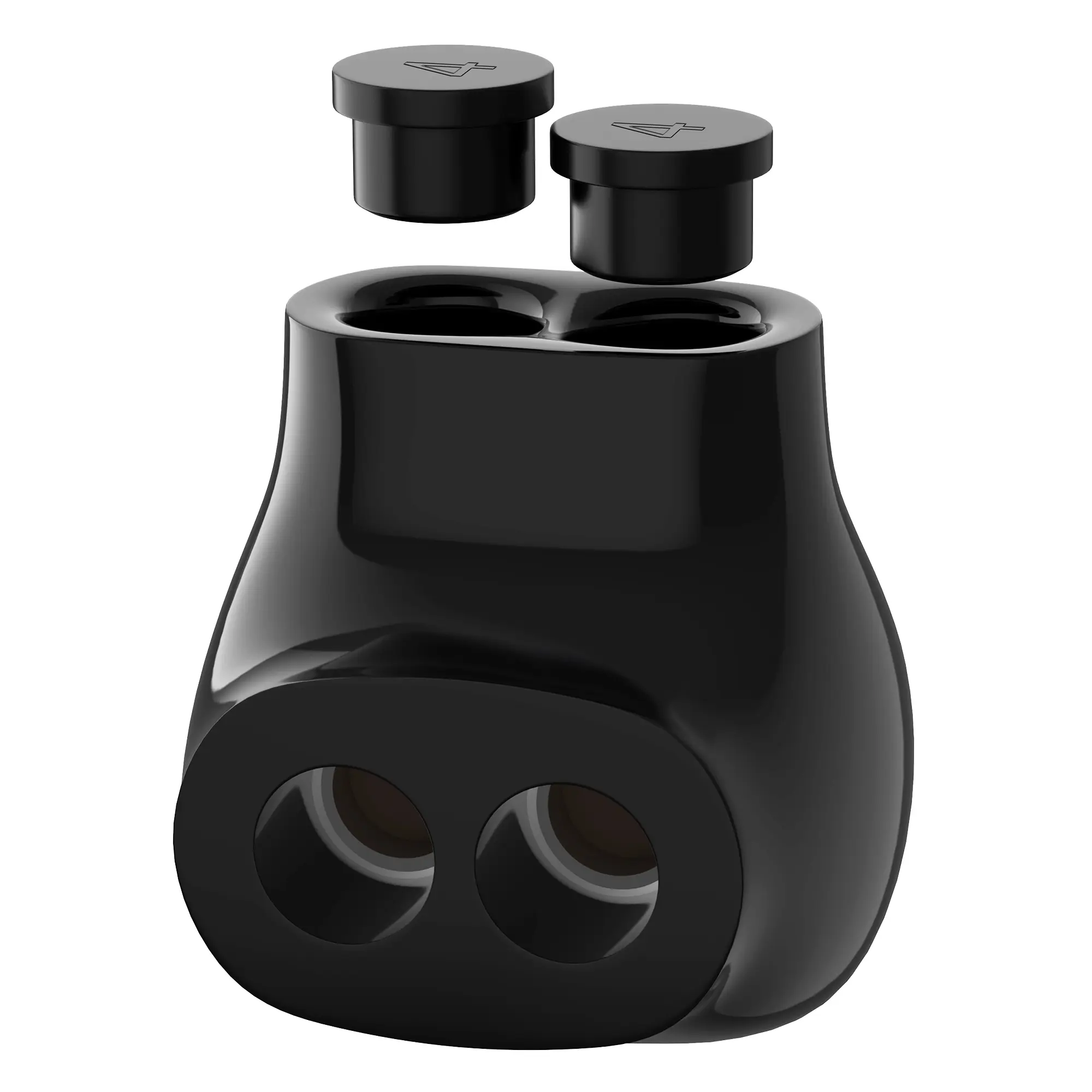

ITC-102-4AWG 4-14 AWG 2-Port Single-side Multi-Tap Pre-Insulated Connector
Part#ITC-102-4AWG
The versatile 4-14 AWG 2-port single-side multi-tap pre-insulated connector form secure connections between multiple conductors.
With a secure hex screw fixation mechanism and antioxidant-infused ports, these connectors ensure dependable splicing.
ITC-102-4AWG 4-14 AWG 2-Port Single-side Multi-Tap Pre-Insulated Connector Details
- Versatile Wire Compatibility
These pre-insulated connectors offer the flexibility to connect copper-copper, aluminum-aluminum, and copper-aluminum wires, providing a secure and reliable solution for splicing different wire materials.
- Tailored Design
Engineered for 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, and 14 AWG gauge wires, these 2-port connectors feature a unique hex screw fixation mechanism. Their ports are infused with antioxidant lubricating oil, ensuring steadfast connections.
- Distinctive Benefits
Our aluminum multi-tap connectors outshine butterfly nut connectors in terms of safety and convenience. With an extended wire diameter range and high current support, they cater to users seeking straightforward, reliable connections.
- Premium Insulation
Constructed with high dielectric strength plastic sol, these copper aluminum wire connectors offer enhanced chemical protection and durability, safeguarding connections in diverse environments.
- Enhanced Safety
Designed with a focus on aluminum-to-copper connections, these connectors prioritize safety by preventing overheating and potential electrical fires due to conductor mixing. They provide peace of mind for secure splicing.
ITC-102-4AWG Pre-Insulated Connector Datasheet
| Voltage Rating | 600V |
| Material | Aluminum |
| Finish | UV resisted plastisol |
| Color | Black |
| Wire Range | 4-14 AWG |
| Conductor Type | Copper, Aluminum |
| Conductors Count | 2 |
| Bolt | Hex Head |
| Hex Size | Slotted |
| Temperature Rating | -49°F – 194°F |
