ASW-13D Flat Handle Illuminated Toggle Switch

Part # ASW-13D



ASW-13D Flat Handle Illuminated Toggle Switch is used for DC 12V systems, SPST, On-Off, 20 A, four colors of red, yellow, green and blue.

The toggle switches are made with durable materials that protect from breakage and corrosive materials.



ASW-13D Flat Handle Illuminated Toggle Switch

  • Simple Operation

Simply toggle the handle to select different functions according to the position. Rated voltage 12V DC; Rated current: 20A DC.

  • Sturdy Construction

Plastic and metal, exquisite appearance, rust prevention, corrosion resistance, safety and durability.

  • Great Compatibility

Control the on-off of AC and DC power supply circuit can stand alone or be locked together with other switches.

  • Visual Feedback

Toggle switches operate at 12 volts DC and light up to provide visual feedback of your circuit operation.

  • Wide Application

Widely used in automotive, commercial, RV, truck, and industrial applications.

ASW-13D Toggle Switch Detailed Information Below

ASW-13D Flat Handle Illuminated Toggle SwitchStill have a question about the ASW-13D Toggle Switch that wasn’t answered on this page? Please contact our email at sales1@chinadaier.com

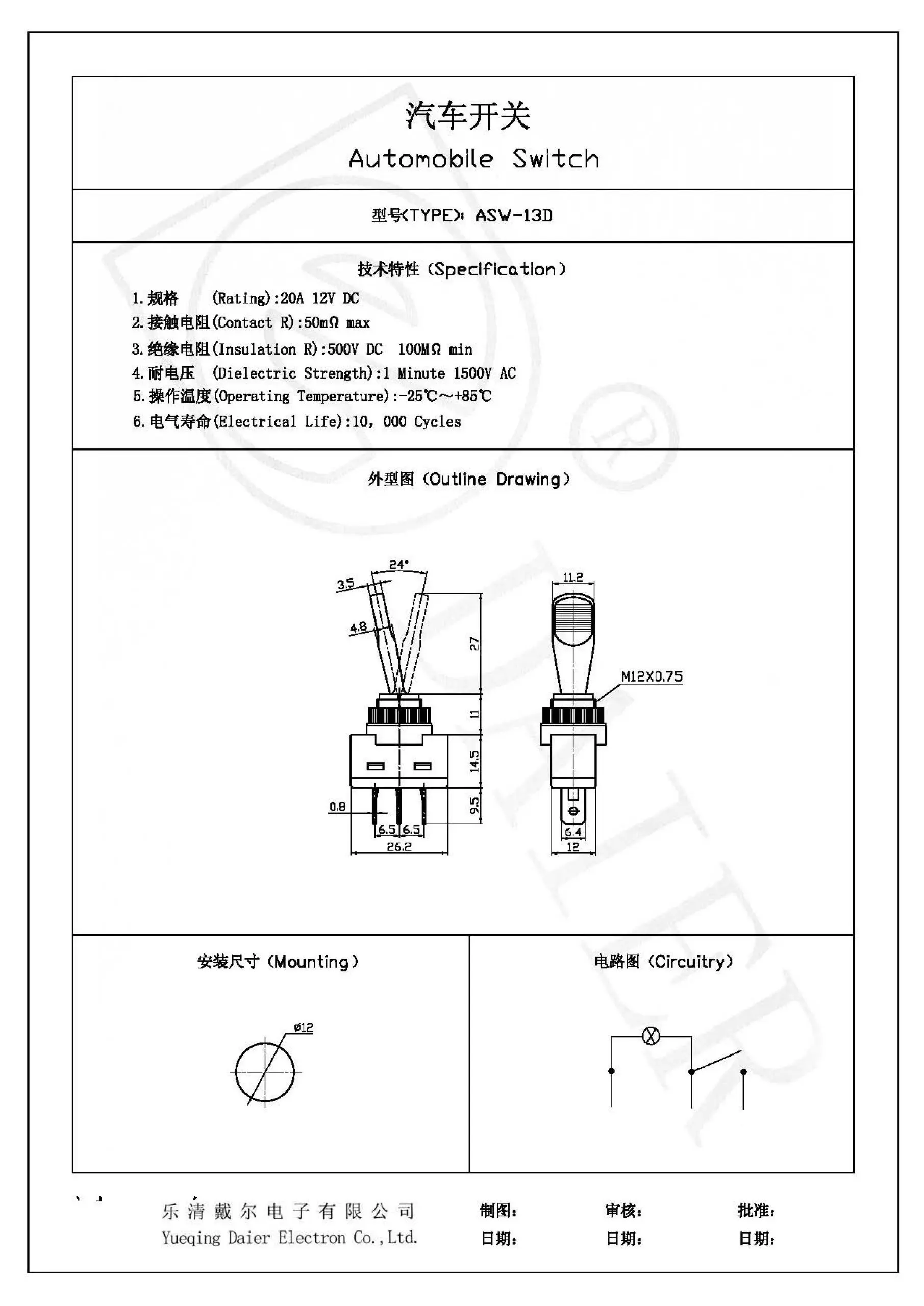

ASW-13D Flat Handle Illuminated Toggle Switch Datasheet Below:

Rating: 20A 12VDC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
