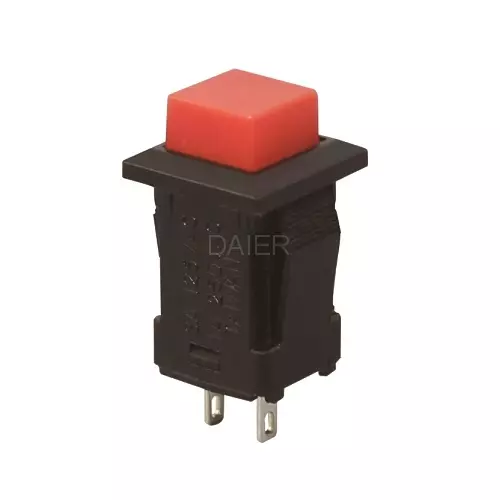

DS-429 Game Switch Starter Push Button

DS-429 ON-OFF

3A 125VAC, 1A 250VAC

DS-429 Game Switch Starter Push Button

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

There are many color of button to choose from.

For more details, contact us here

DS-429 Game Switch Starter Push Button datasheet below:



Rating: 3A 125VAC/1A 250VAC Contact Resistance: 100mΩ max
Electrical Life: ≥ 10,000 Cycles Function: ON-OFF
Dielectric strength: 500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
