KD4-21 DPST Push Button Switch
KD4-21 ON-OFF
KD4-21N ON-OFF (With lamp)
KD4-22 OFF-(ON)
KD4-22N OFF-(ON) (With lamp)
15A 250VAC, DPST 4P
KD4-21 DPST Push Button Switch
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
There are many color of button to choose from.
KD4-21 DPST Push Button Switch related product, pls check the detailed information as below:
KD4-21: | ON-OFF |
KD4-21N: | ON-OFF with lamp |
KD4-22 | OFF-(ON) |
KD4-22N: | OFF-(ON) with lamp |

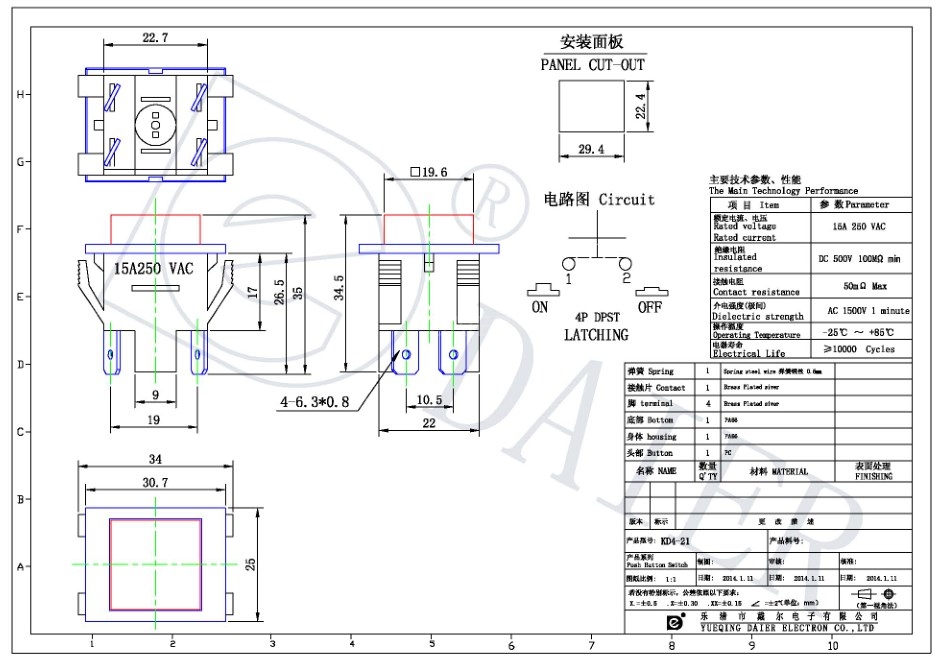

Pls check the datasheet below:
Rating: | 15A 250VAC | Contact Resistance: | 100mΩ max |
Electrical Life: | ≥ 10,000 Cycles | Function: | ON-OFF or OFF-(ON) |
Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
