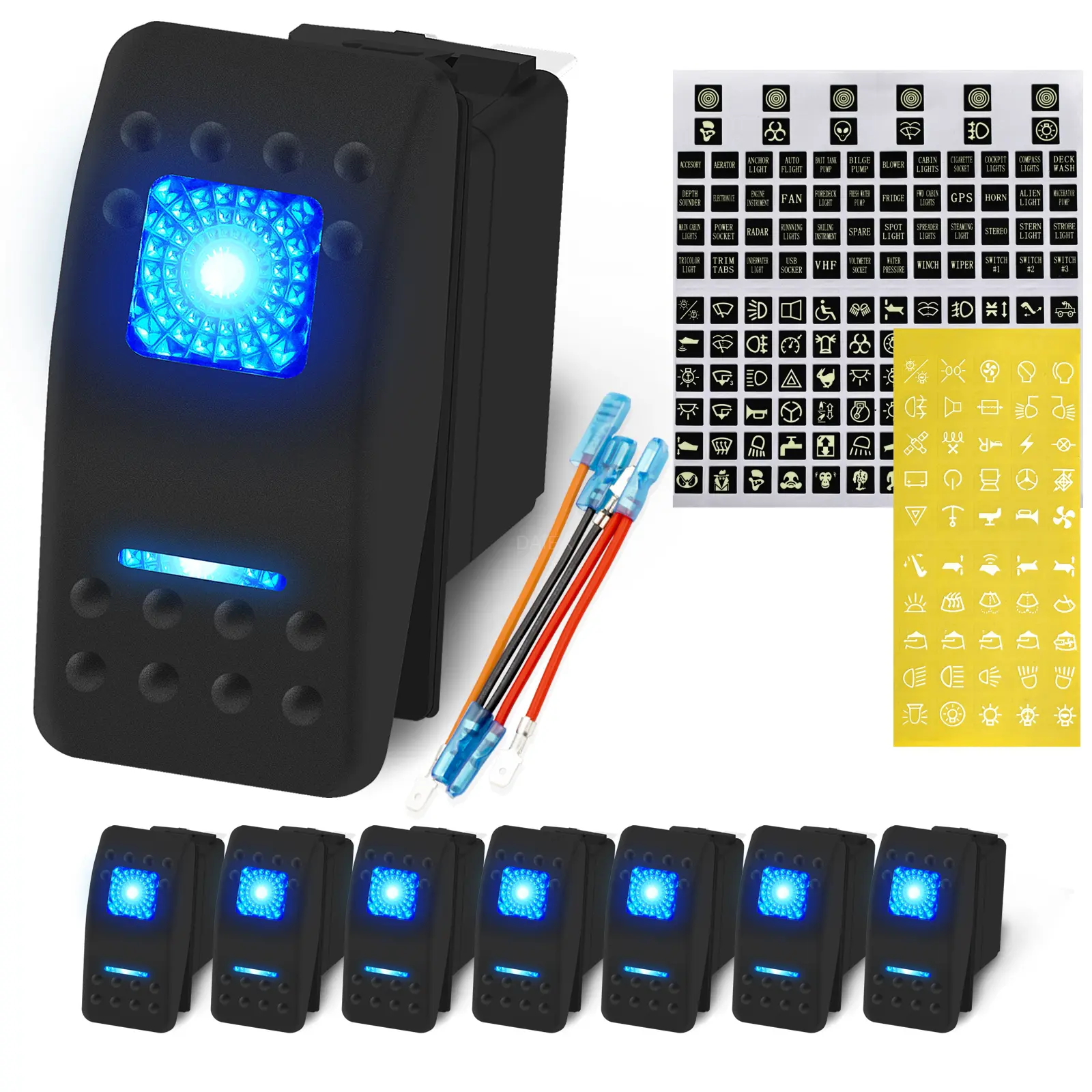

DR-A11625A 5 Pin DIY Sticker LED Rocker Switch


DR-A11625A 5-pin DIY sticker LED rocker switch is used in 20A at 12VDC and 10A at 24VDC systems, SPST, on-off, 5-pin, IP66 with dual LED.

This switch with dual LEDs, the lower light is constantly illuminated when the switch is connected to the battery (clearly see the switch in the dark).

Category :

Marine Switch

DR-A11625A 5 Pin DIY Sticker LED Rocker Switch Details

  • Simple Operation

Different functions can be selected according to the position when the switch is toggled.

  • Sturdy Construction

The switch is made of plastic and metal, which is safe, durable, anti-corrosion, and rust-proof.

  • Great Compatibility

The switch controls the on-off of the AC and DC power supply circuit, which can be used alone or locked together with other switches.

  • Visual Feedback

The dual LED illuminated toggle switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation

  • Wide Application

It is suitable for most Auto, Car, Truck, Jeep, RV, RZR, ATV, SUV, UTV, 4X4, Bus, Tailer, Wrangler, Marine, Boat, Yacht, Vehicles and etc.

DR-A11625A Datasheet

Rating 20A 12VDC /10A 24VDC
Function SPST, 5PIN, ON-OFF, Dual LED
Installation Snap-in
Material ABS, PC
Mounting Hole Size 1.46″ (37.2 mm) x 0.83″ (21.2 mm)
Wire Length 5.31 inch (about 135 mm)
Waterproof grade IP66
Operating Temperature -40℃~+85℃

Still, have a question about the DR-A11625A that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!

Marine Switch Structure Description
